DTC P1700 (No. 32 / 33): Throttle Position Signal Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

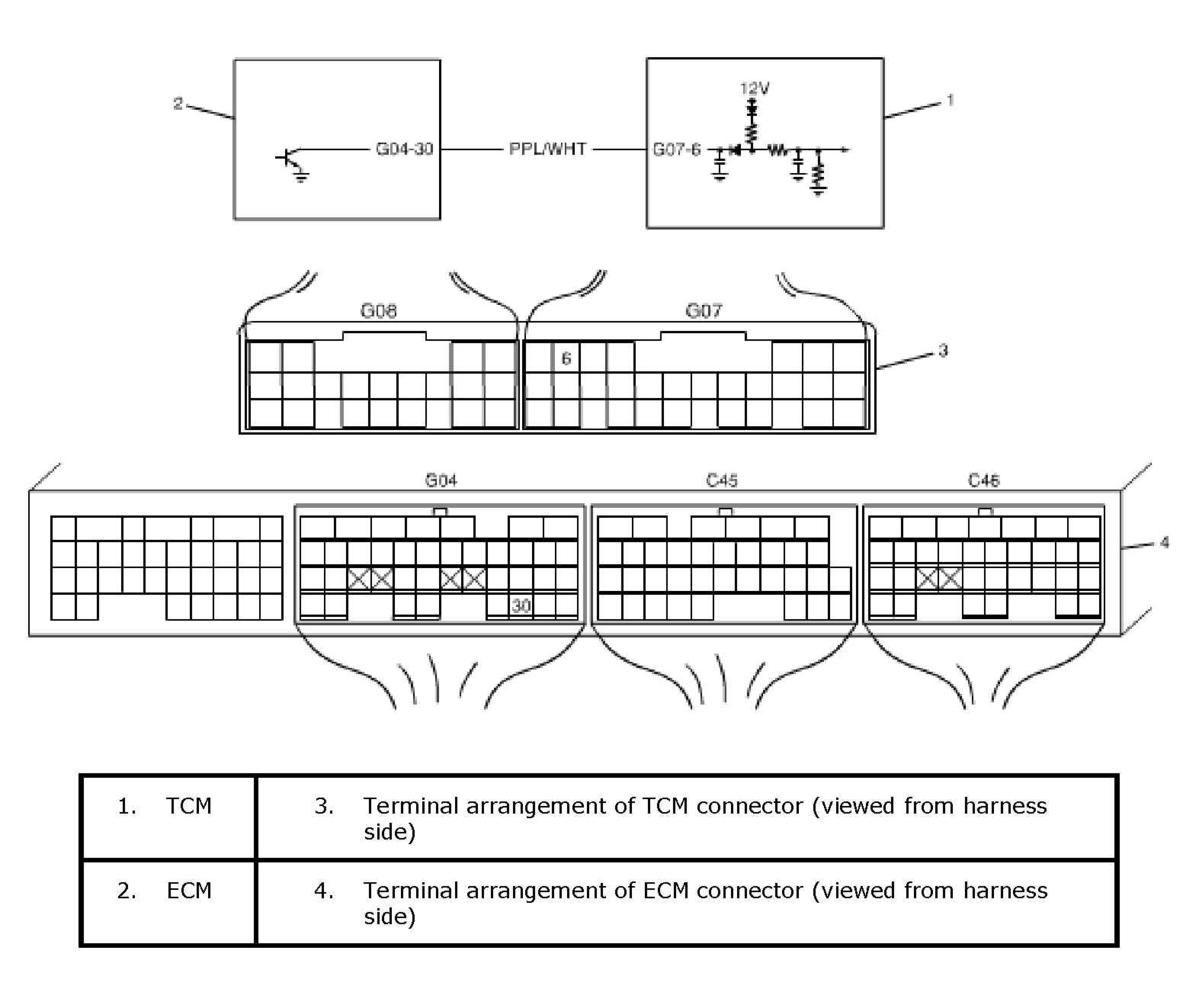

Fig 1: Wiring Diagram - Throttle Position Signal Circuit
G04591834Courtesy of SUZUKI OF AMERICA CORP.
