DTC P0973 / P0976 (No. 22 / No. 24): Shift Solenoid-A (No. 1) Control Circuit Low / Shift Solenoid-B (No. 2) Control Circuit Low: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

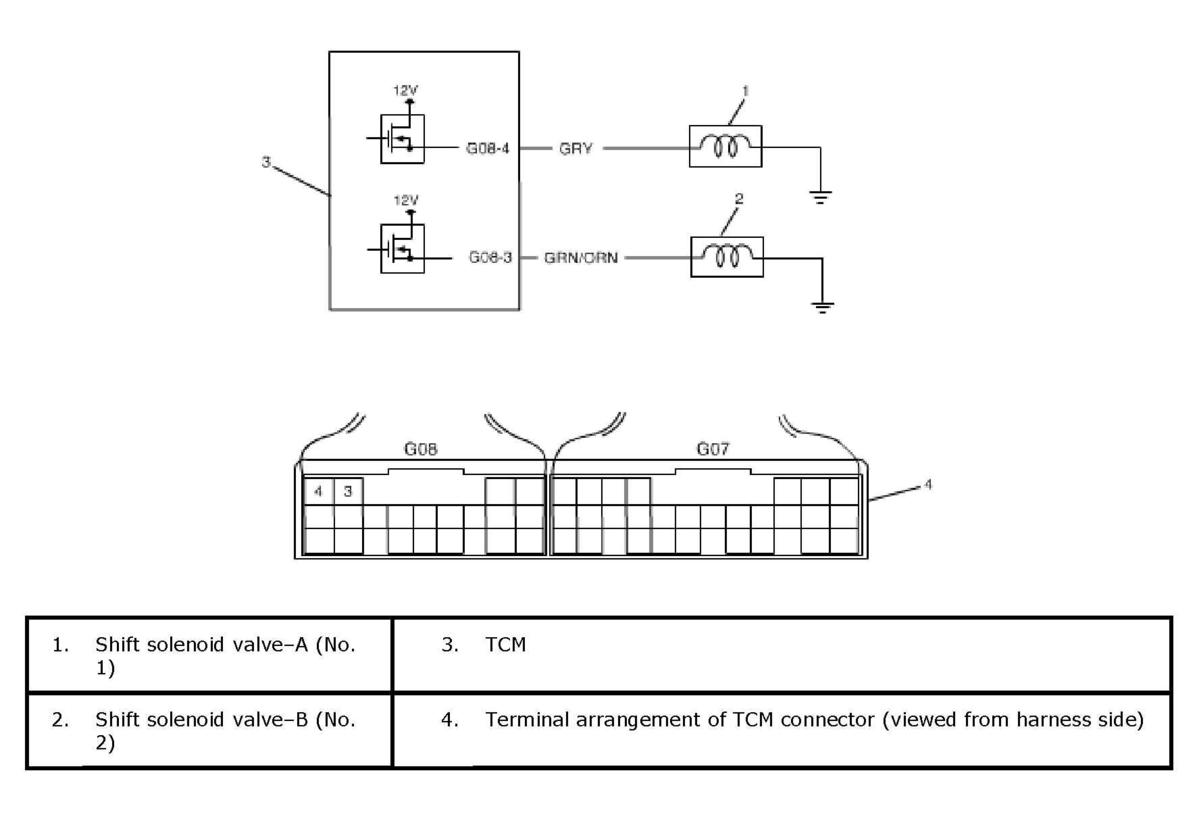

Fig 1: Wiring Diagram - Shift Solenoid Control Circuit
G04591830Courtesy of SUZUKI OF AMERICA CORP.
