DTC P0962 (No. 41): Pressure Control Solenoid Control Circuit Low: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

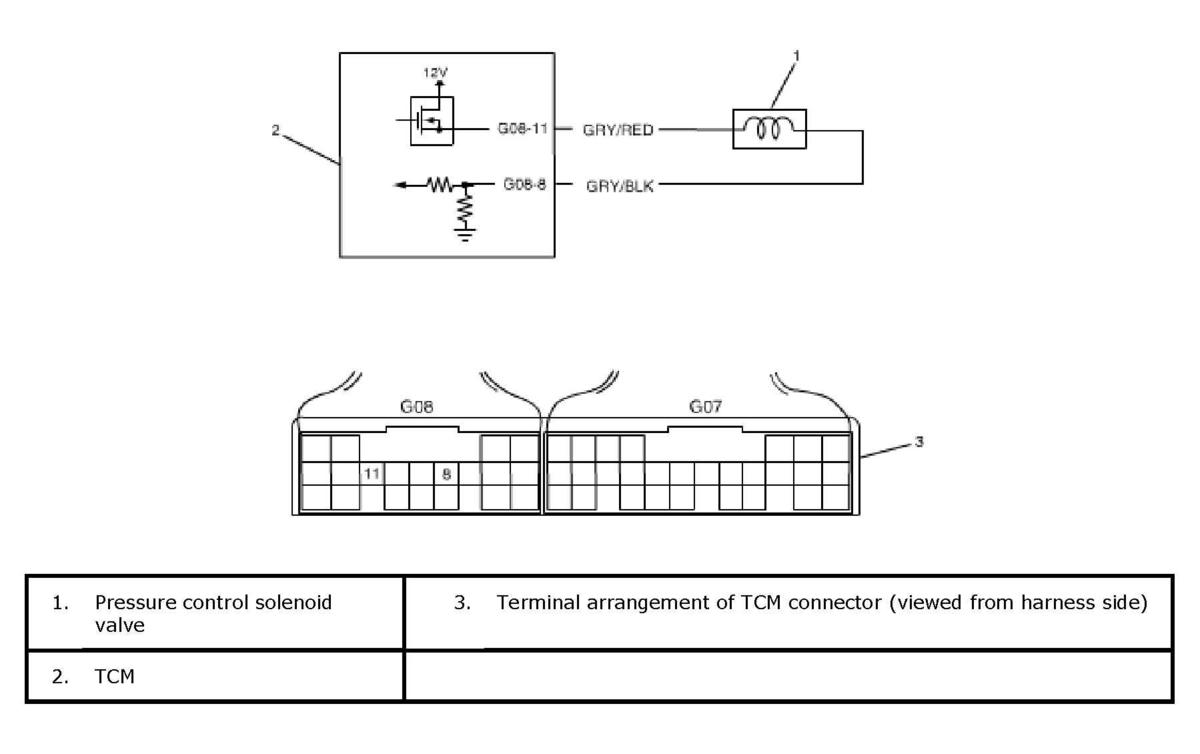

Fig 1: Wiring Diagram - Pressure Control Solenoid Control Circuit Low
G04591826Courtesy of SUZUKI OF AMERICA CORP.
