DTC P0722 (No. 31): Output Speed Sensor Circuit No Signal: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

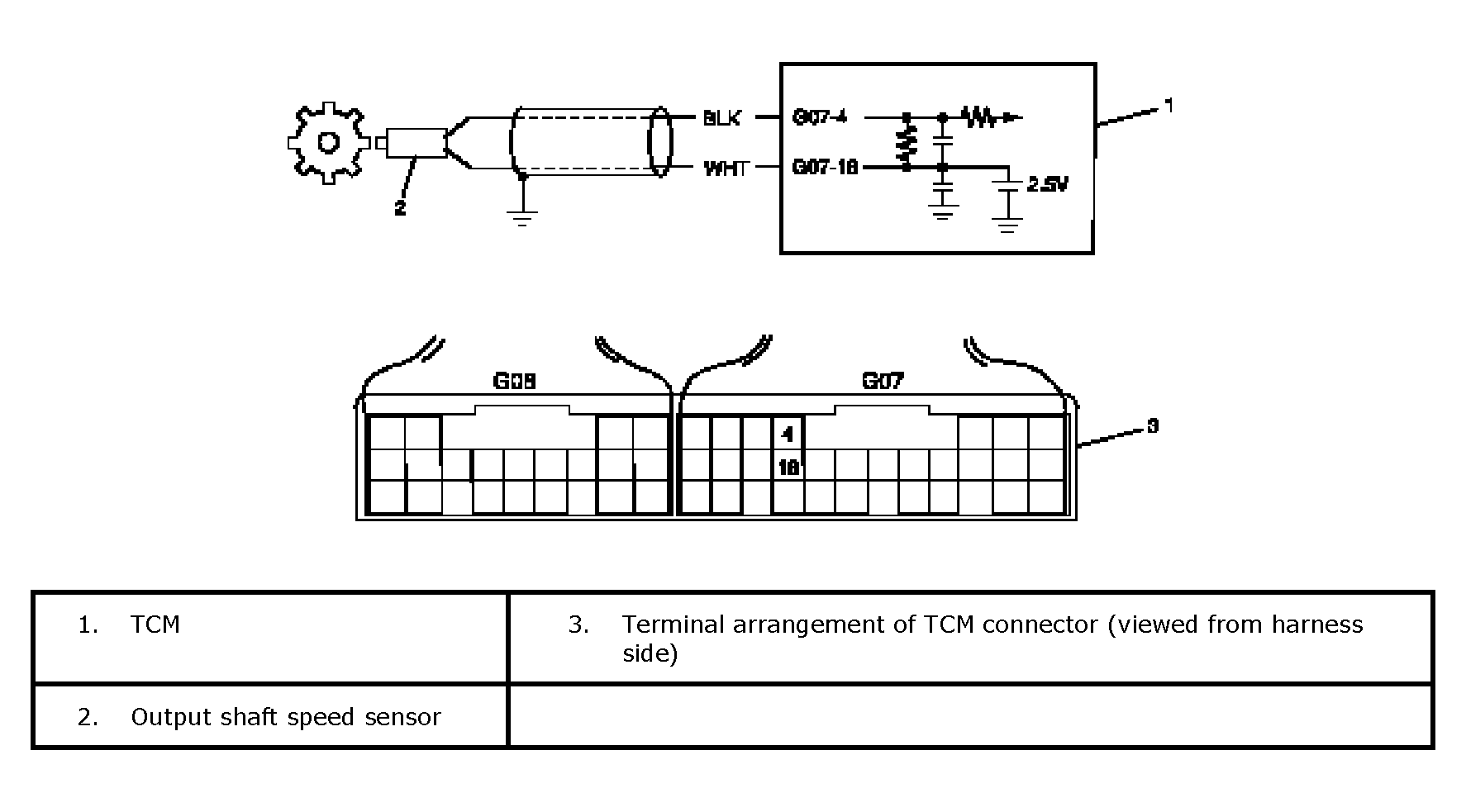

Fig 1: Wiring Diagram - Output Speed Sensor Circuit No Signal
G04591823Courtesy of SUZUKI OF AMERICA CORP.
