DTC P0717 (No. 37): Input / Turbine Speed Sensor Circuit No Signal: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

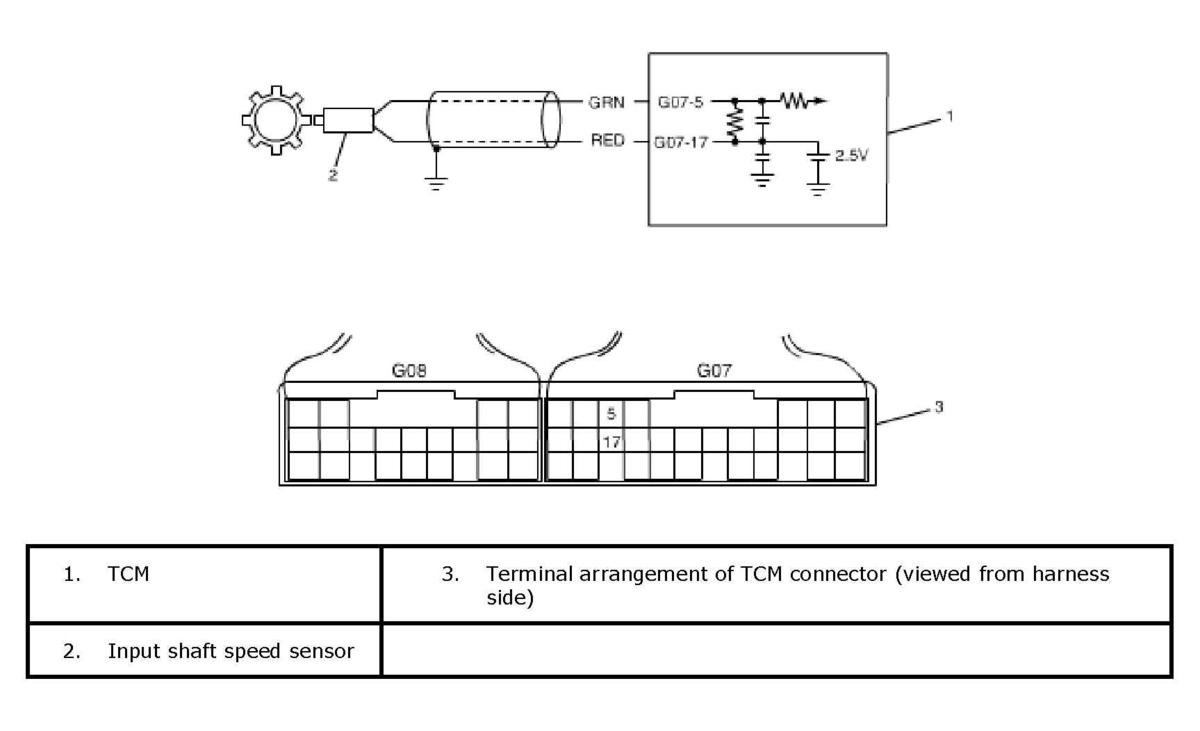

Fig 1: Wiring Diagram - Input / Turbine Speed Sensor Circuit No Signal
G04591821Courtesy of SUZUKI OF AMERICA CORP.
