DTC P0713 (No. 36): Transmission Fluid Temperature Sensor Circuit High: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

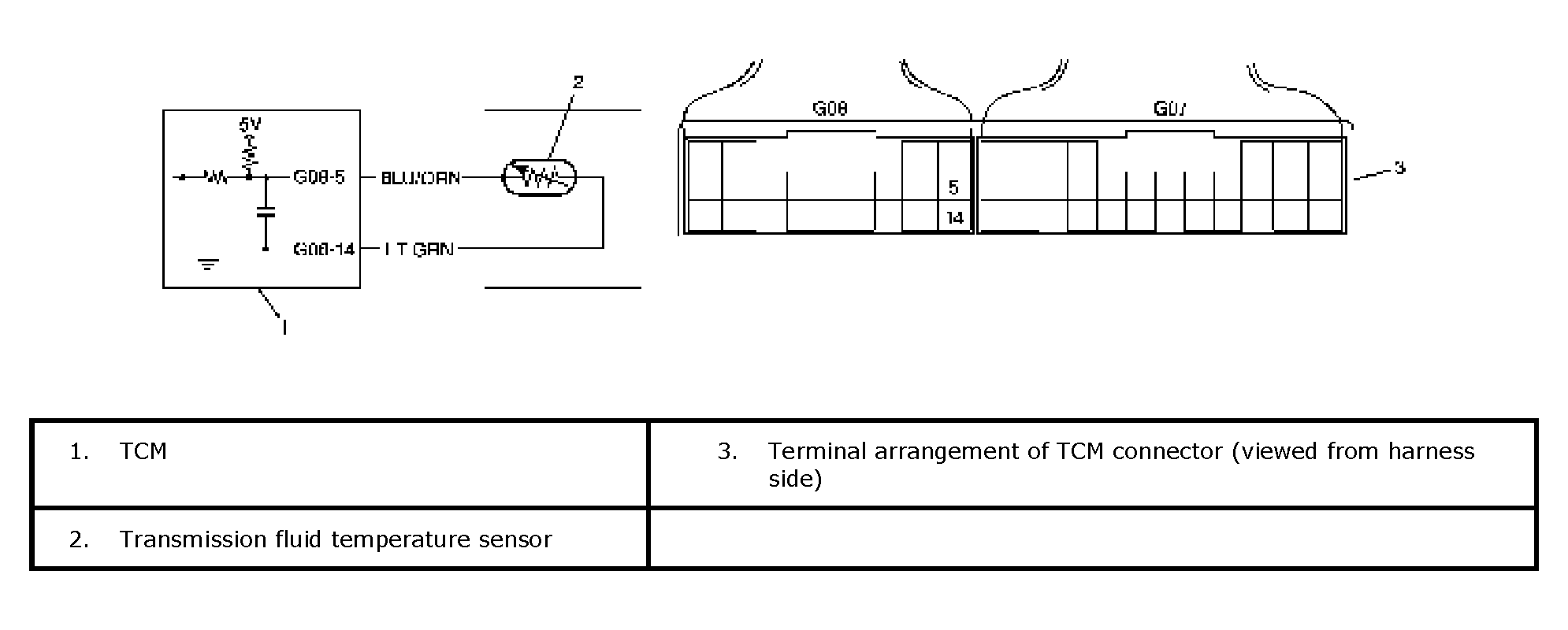

Fig 1: Wiring Diagram - Transmission Fluid Temperature Sensor Circuit High
G04591820Courtesy of SUZUKI OF AMERICA CORP.
