DTC P0712 (No. 38): Transmission Fluid Temperature Sensor Circuit Low: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

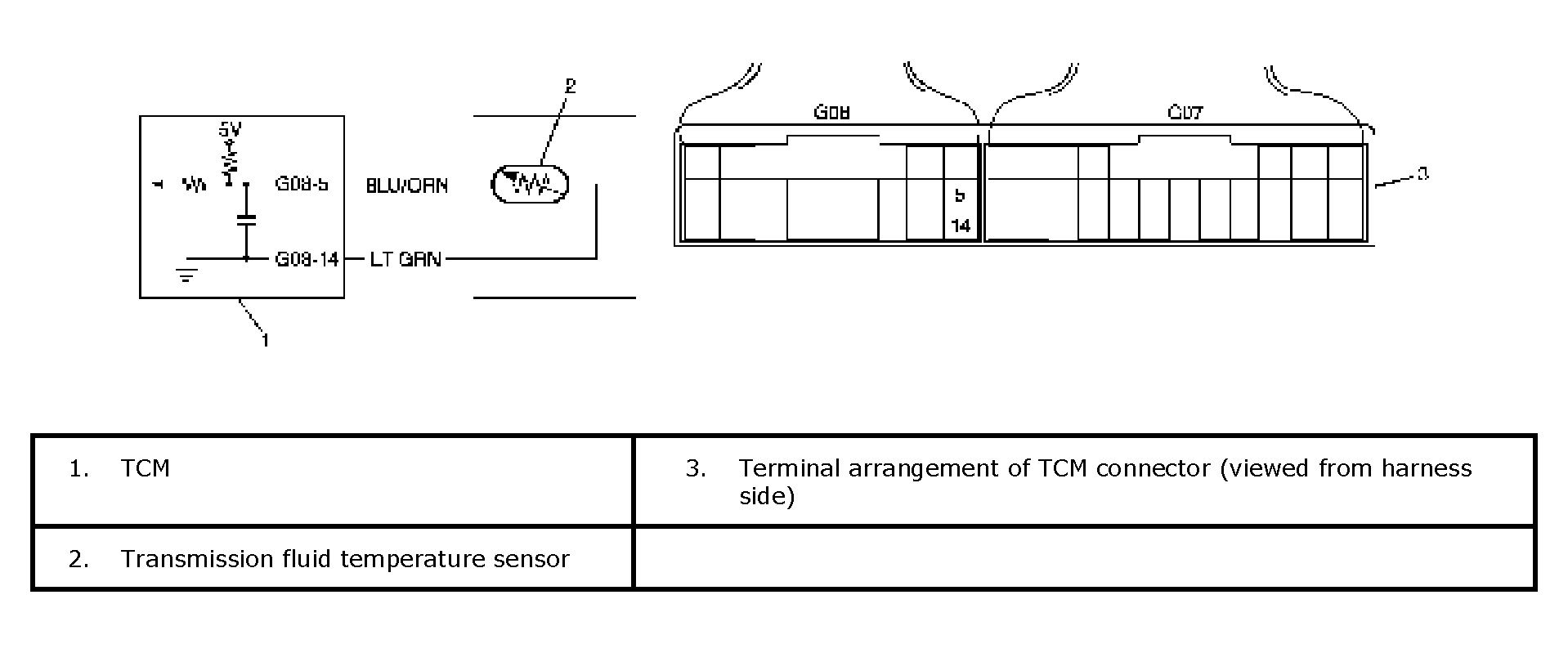

Fig 1: Wiring Diagram - Transmission Fluid Temperature Sensor Circuit Low
G04591819Courtesy of SUZUKI OF AMERICA CORP.
