DTC P0707 (No. 34): Transmission Range Sensor Circuit Low: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

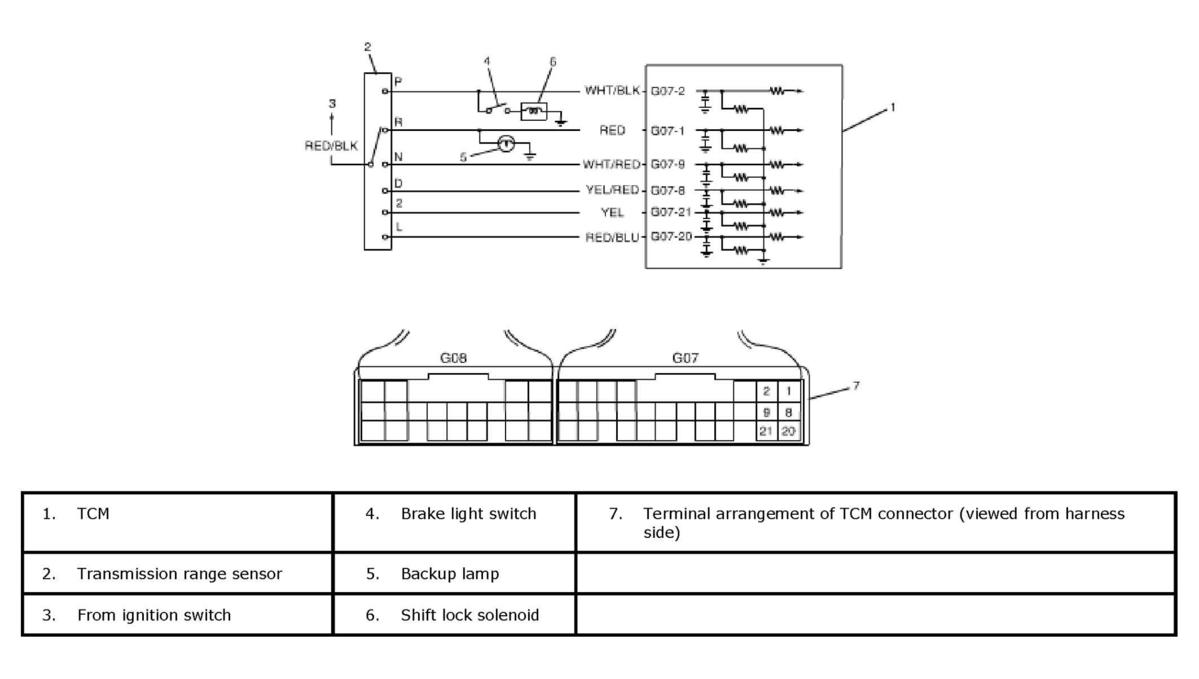

Fig 1: Wiring Diagram - Transmission Range Sensor Circuit Low
G04591818Courtesy of SUZUKI OF AMERICA CORP.
