Reduction Drive Gear, Reduction Idler Gear and Reduction Driven Gear Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Drive out bearings of reduction drive gear, reduction idler gear and reduction driven gear by using bearing puller (1) and hydraulic press (2).

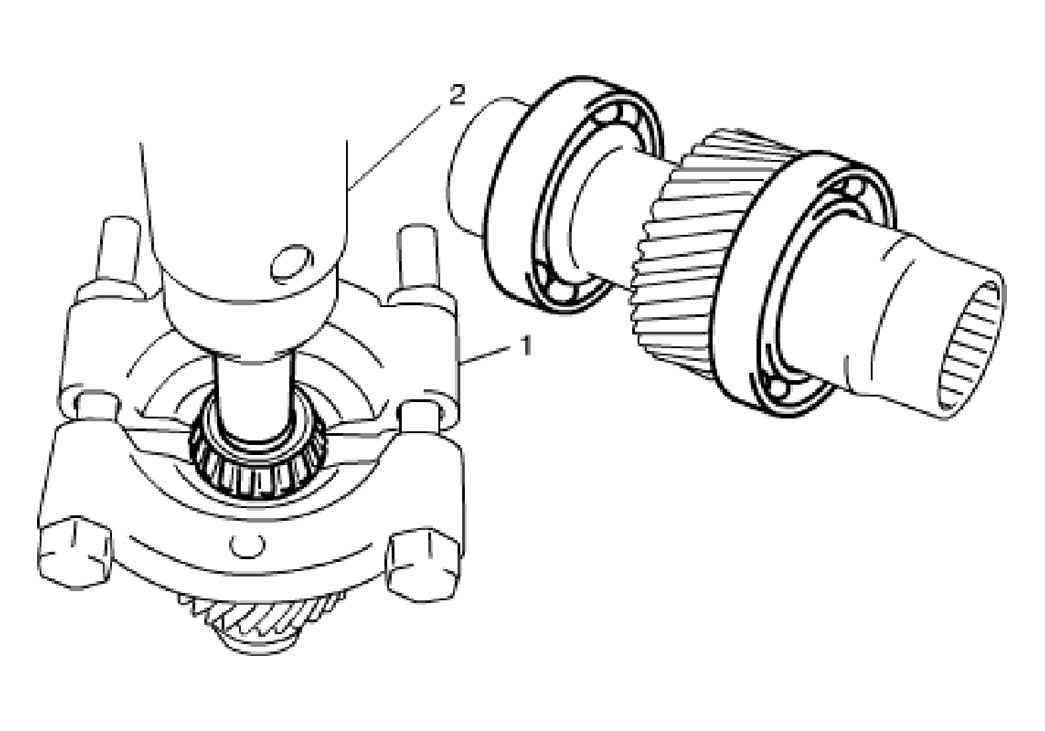

    Fig 1: Removing Bearings Of Reduction Drive Gear, Reduction Idler Gear And Reduction Driven Gear
    G04590574Courtesy of SUZUKI OF AMERICA CORP.
