Front Seat Components

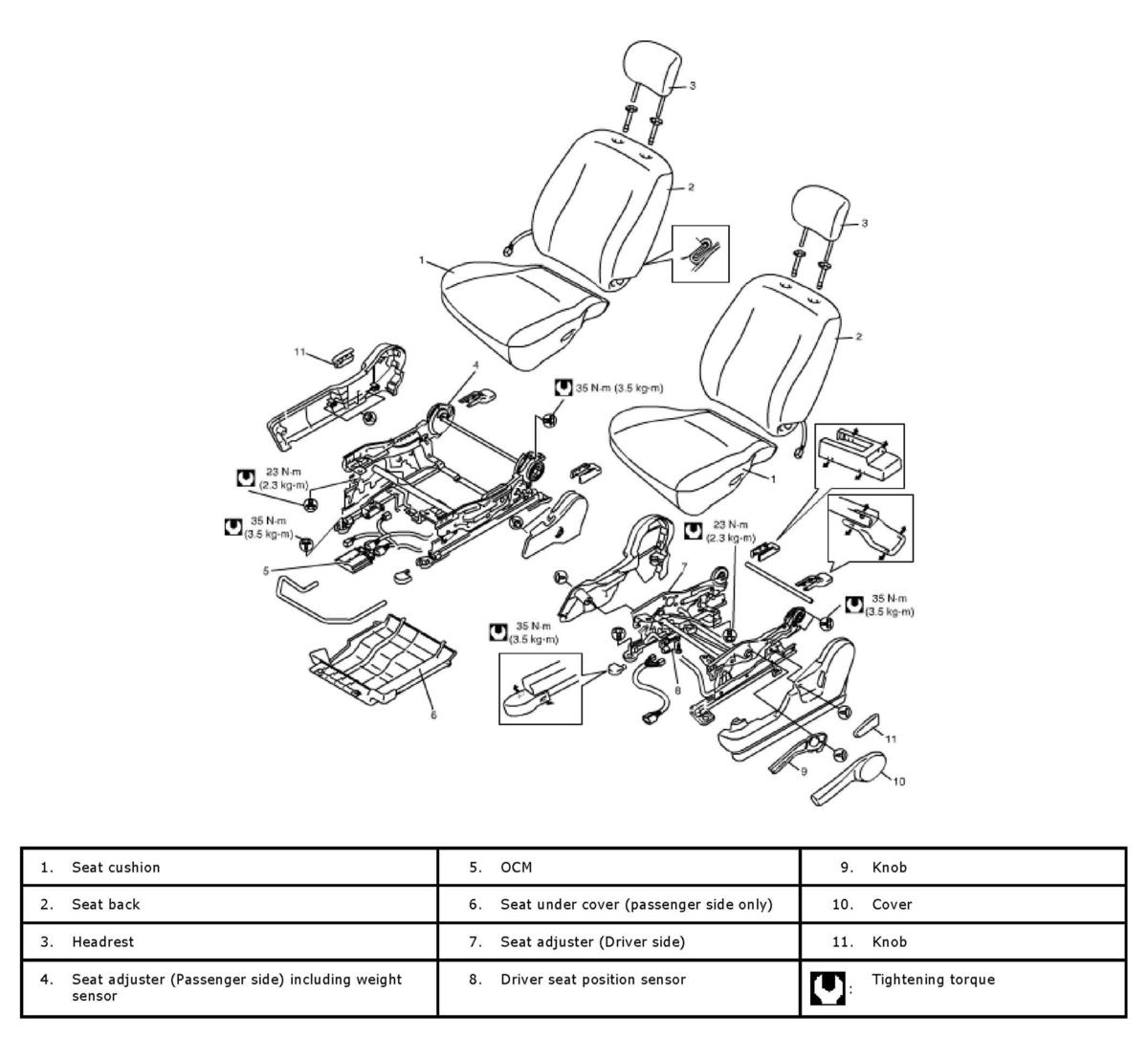

Fig 1: Identifying Front Seat Components

G04591709

Courtesy of SUZUKI OF AMERICA CORP.
