Front Speaker Removal and Installation: Removal

  1. Remove door trim referring to Step 1) to 3) of FRONT DOOR GLASS REMOVAL AND INSTALLATION .
  2. Remove 3 front speaker mounting screws (1).
  3. Remove front speaker (2) from front door (3).
  4. Disconnect front speaker coupler from front speaker (2).

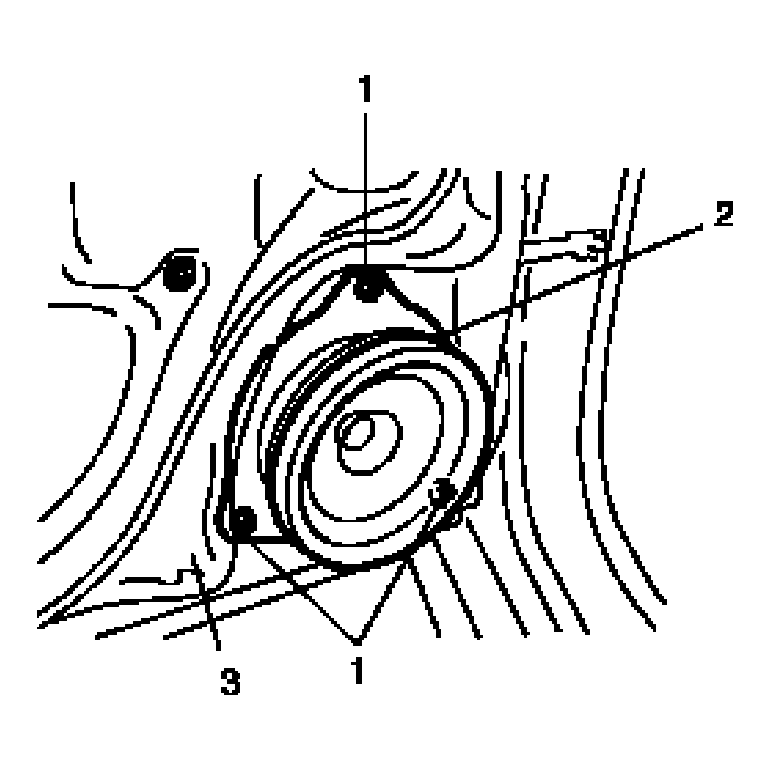

    Fig 1: Removing Front Speaker Mounting Screws (1)
    G04591600Courtesy of SUZUKI OF AMERICA CORP.
