Glove Box Removal

  1. Remove the A/C cover.
  2. Remove the nuts at the base of the glove box.
  3. Open and remove the glove box.

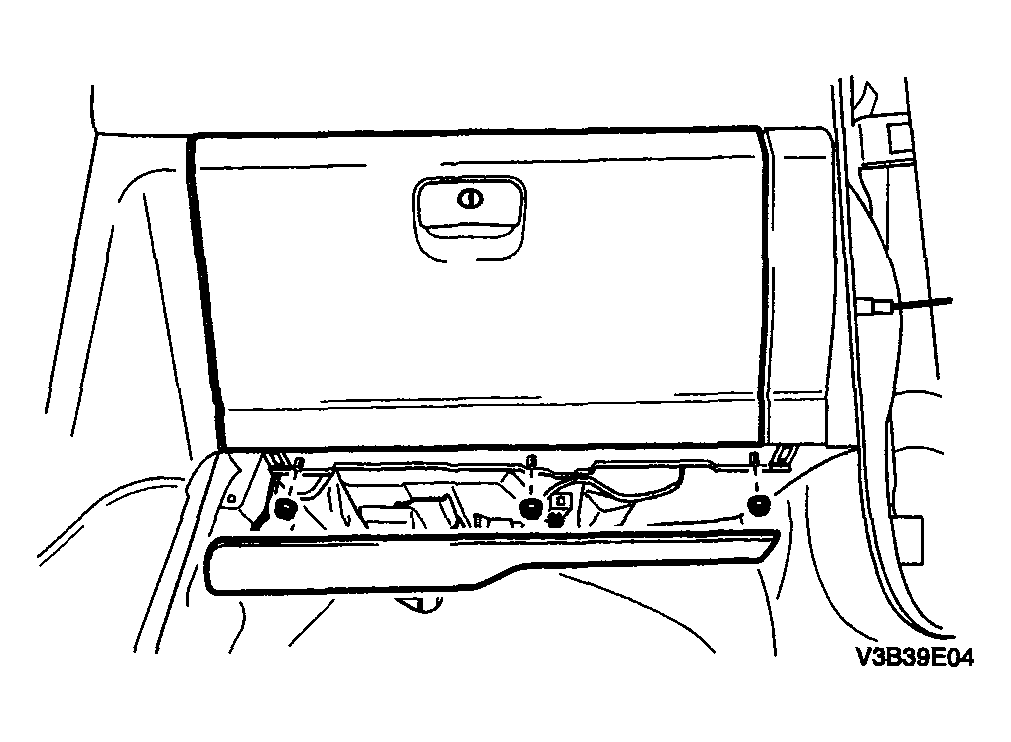

    Fig 1: Removing Glove Box
    G04096148Courtesy of SUZUKI OF AMERICA CORP.
