Vacuum Hose Removal

  1. Remove the clip on the vacuum hose connection at the intake manifold.
  2. Remove the hose from the union nut connection.

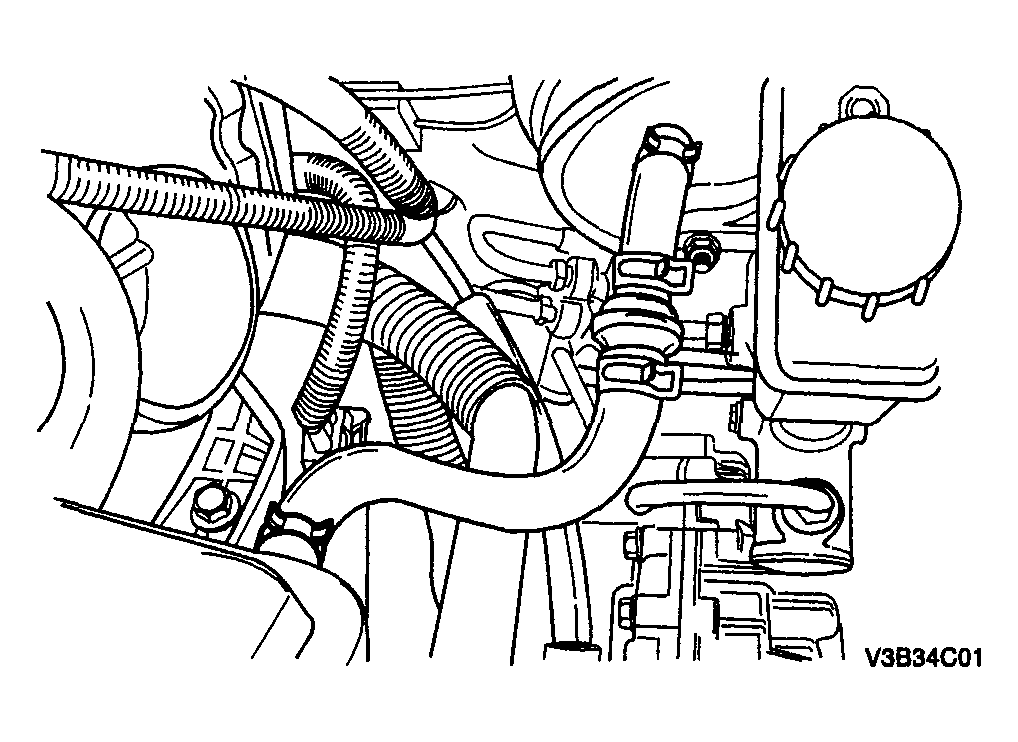

    Fig 1: Removing Clip On Vacuum Hose Connection At Intake Manifold
    G04095174Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the clip on the vacuum hose connection to the brake booster.
  4. Remove the vacuum hose.

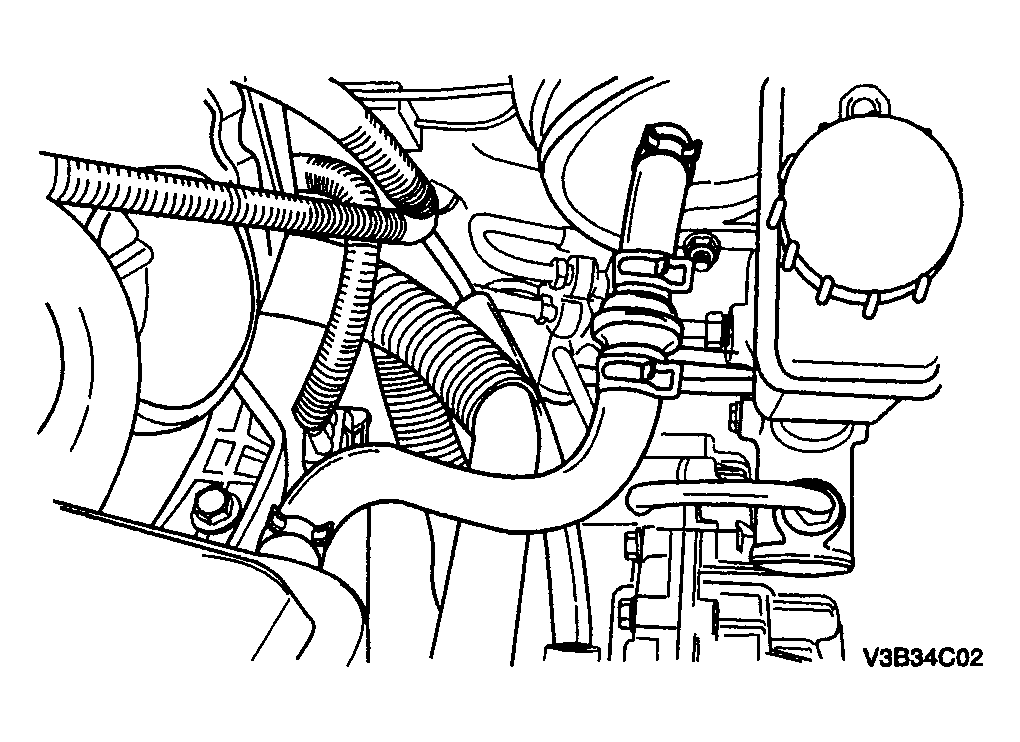

    Fig 2: Removing Vacuum Hose
    G04095175Courtesy of SUZUKI OF AMERICA CORP.
