Vacuum Hose Installation

  1. Mount the vacuum hose and ensure the connections are tight on each end.
  2. Install the vacuum hose clips.
  3. Check the function of the booster. Refer to the "POWER BOOSTER TEST ".

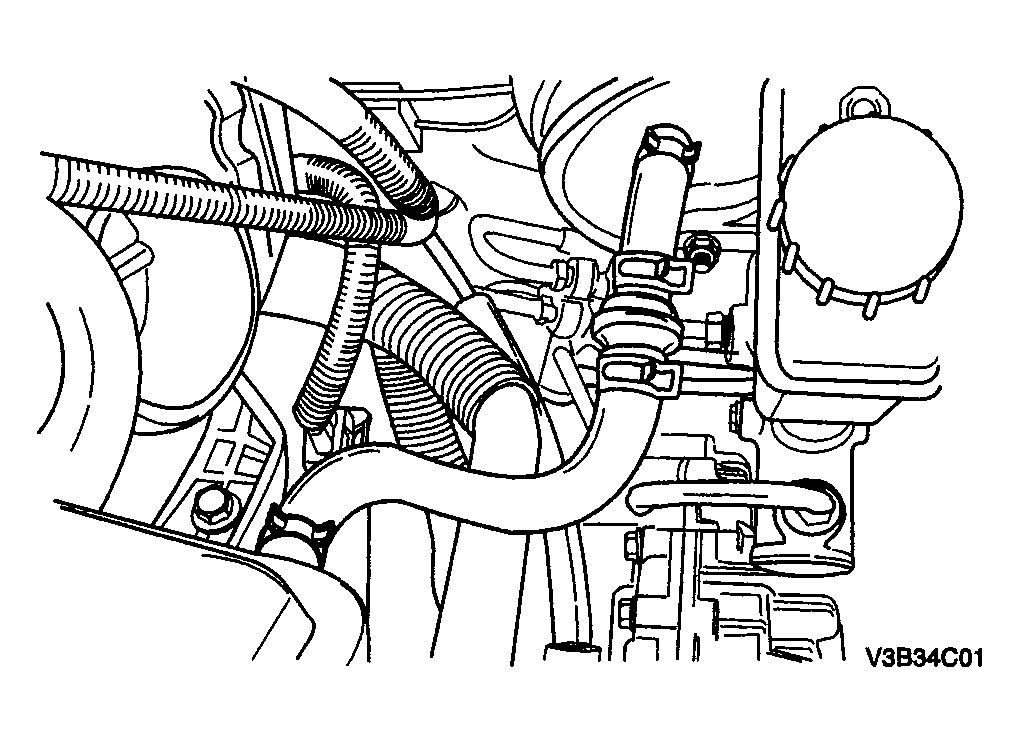

    Fig 1: Installing Vacuum Hose Clips
    G04095176Courtesy of SUZUKI OF AMERICA CORP.
