Proportioning Valve Removal

  1. Disconnect the brake lines from the proportioning valve.
  2. Remove the nut that secures the proportioning valve to the bulkhead.

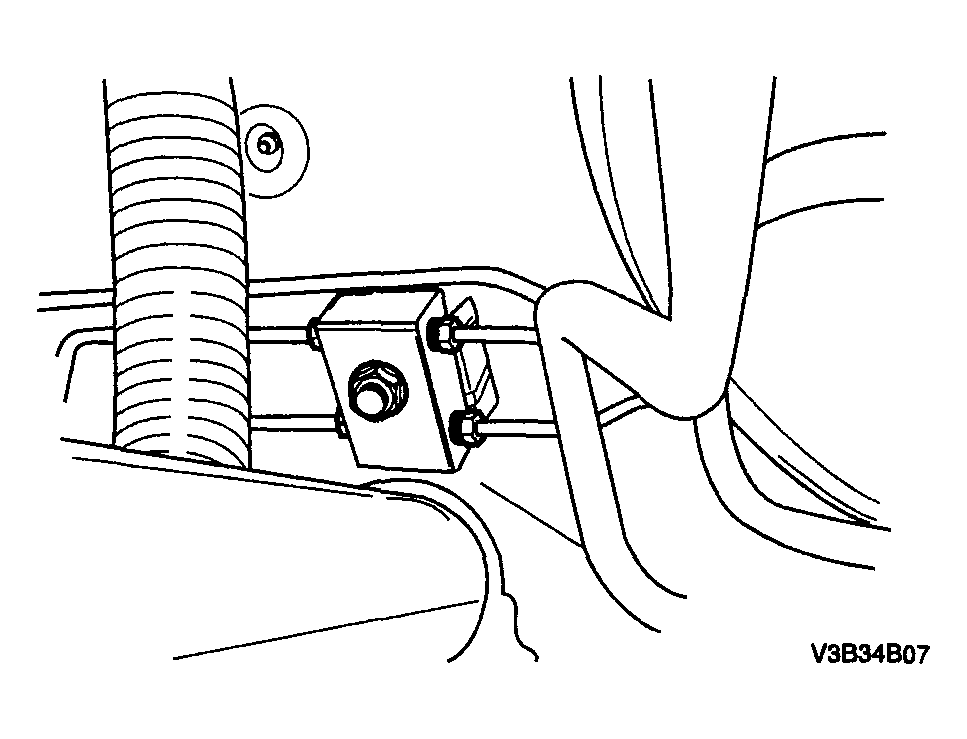

    Fig 1: Removing Nut Securing Proportioning Valve To Bulkhead
    G04095170Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the brake lines from the hydraulic modulator.

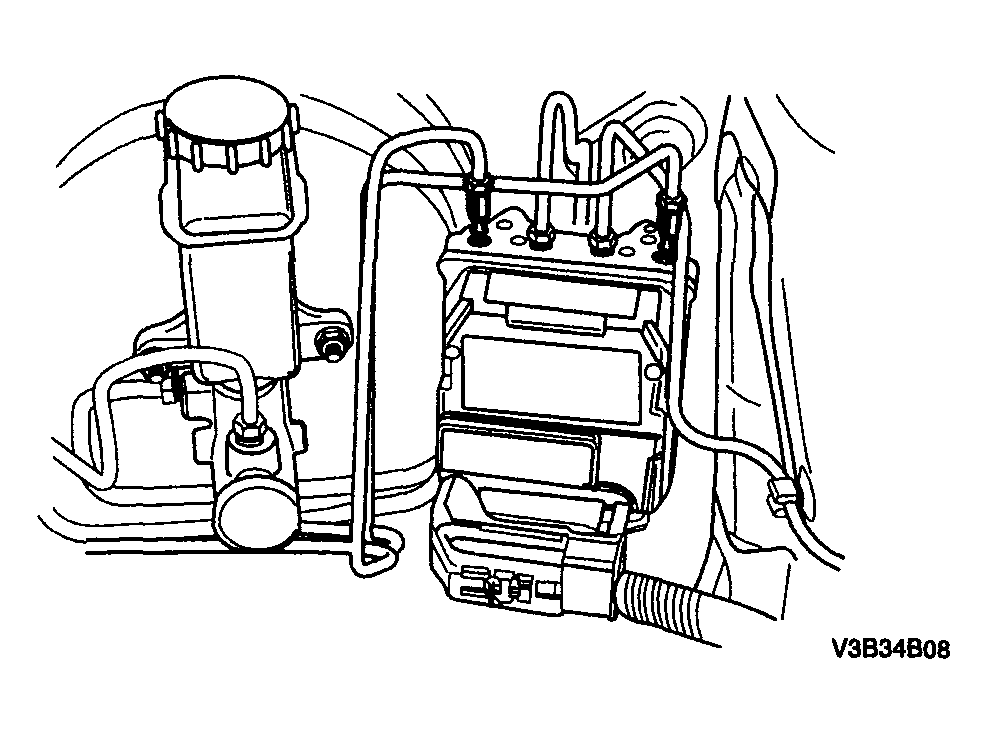

    Fig 2: Removing Brake Lines From Hydraulic Modulator
    G04095171Courtesy of SUZUKI OF AMERICA CORP.
