Proportioning Valve Installation

  1. Install the proportioning valve to the bulkhead.

    Tighten

    Tighten the proportioning valve nut to 16 N.m (12 lb-ft).

  2. Connect the brake lines to the proportioning valve.

    Tighten

    Tighten the proportioning valve brake lines to 16 N.m (12 lb-ft).

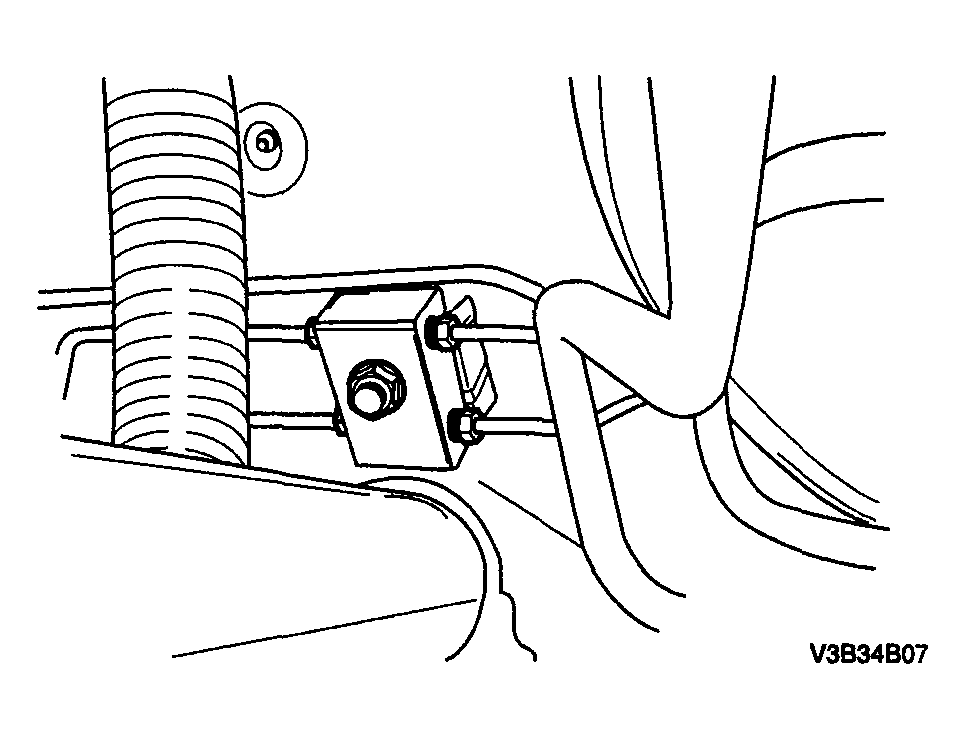

    Fig 1: Connecting Brake Lines To Proportioning Valve
    G04095172Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the brake lines to the hydraulic modulator.
  4. Raise and suitably support the vehicle.
  5. Bleed the brake system. Refer to "MANUAL BLEEDING THE BRAKES ".
  6. Lower the vehicle.

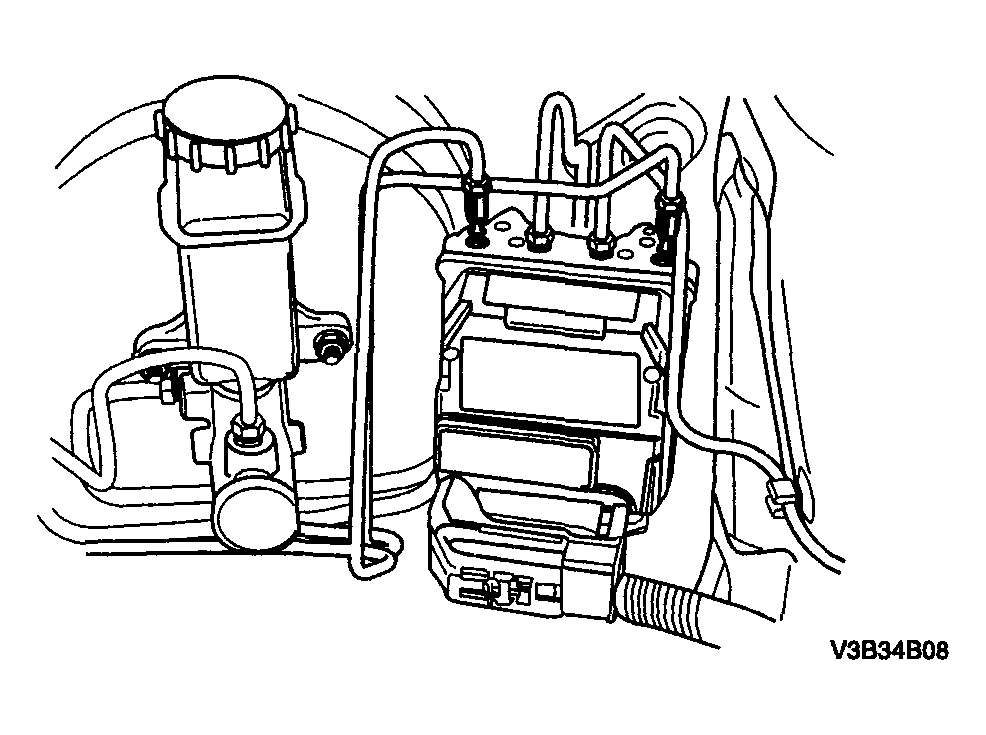

    Fig 2: Installing Brake Lines To Hydraulic Modulator
    G04095173Courtesy of SUZUKI OF AMERICA CORP.
