Master Cylinder Assembly Removal

Disconnect the harness connector that is mounted to the top of the brake fluid reservoir.
Remove the brake fluid level switch by sliding it out of the reservoir. It is not necessary to drain the reservoir.

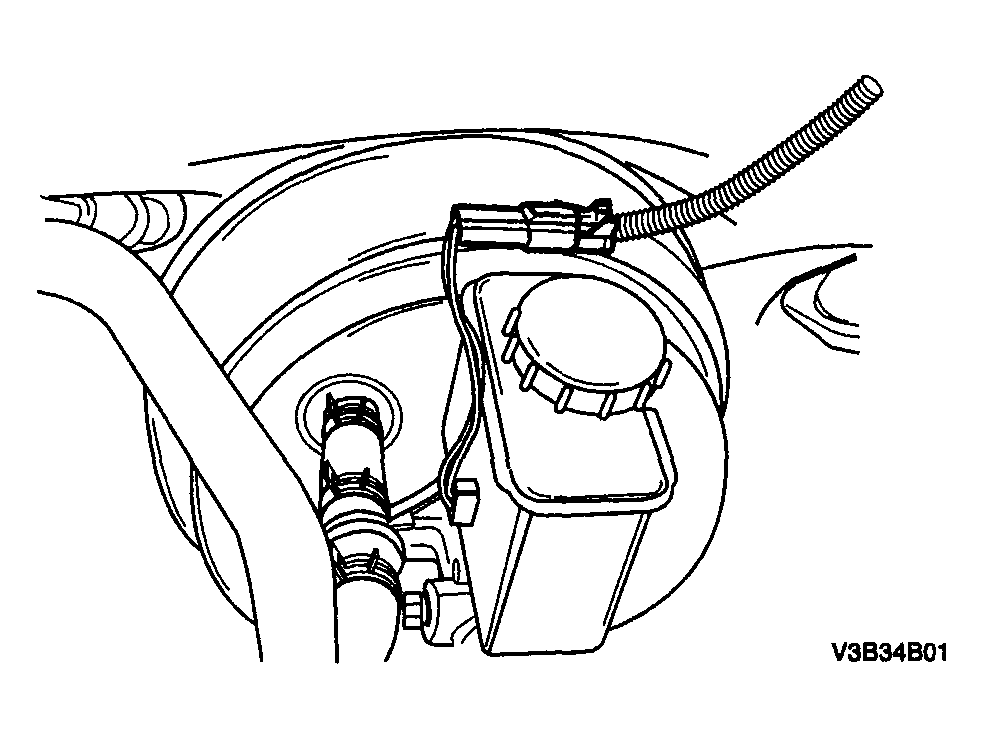

Fig 1: Removing Brake Fluid Level Switch
Courtesy of SUZUKI OF AMERICA CORP.
Remove the brake fluid level switch and wire harness from the brake fluid reservoir.

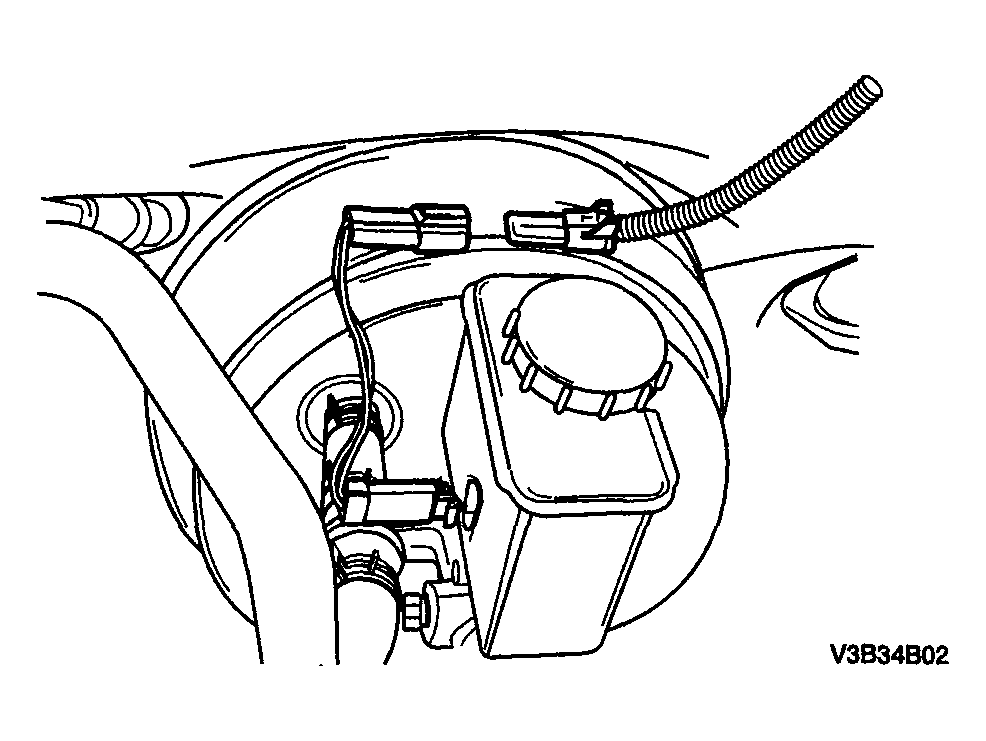

Fig 2: Removing Brake Fluid Level Switch And Wire Harness
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the brake lines from the master cylinder body.
For vehicles with the manual transaxle, disconnect the clip that secures the clutch hose connection to the master cylinder and move the clip out of the way.
Remove the clutch hose from the master cylinder.
Plug the opening to the brake lines to prevent the loss or contamination of the fluid.

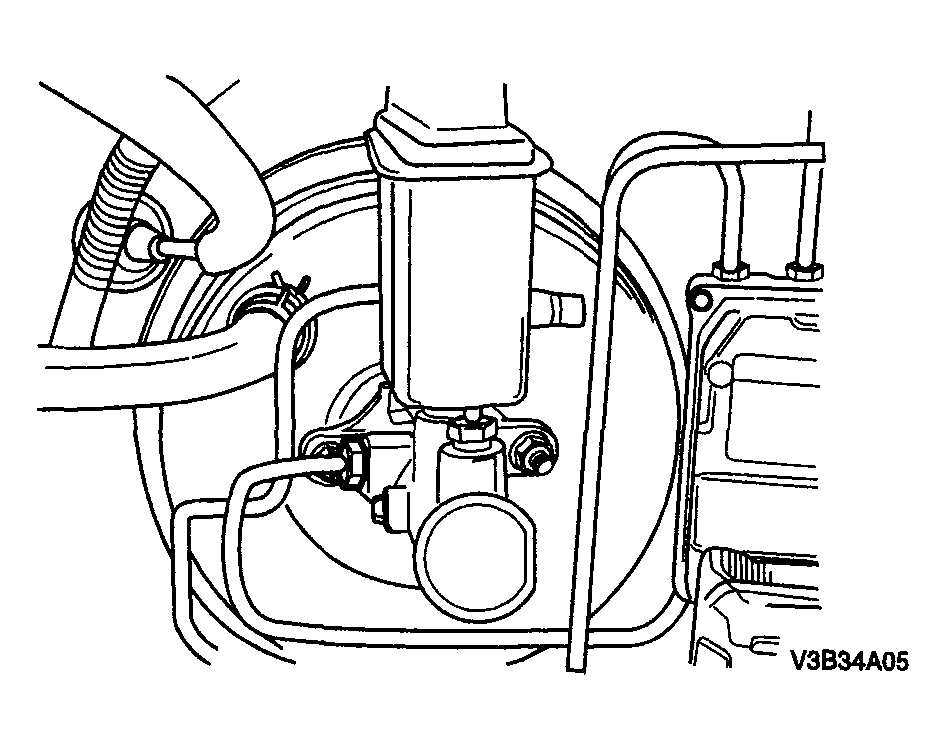

Fig 3: Disconnecting Brake Lines From Master Cylinder Body
Courtesy of SUZUKI OF AMERICA CORP.
Remove the master cylinder mounting nuts.
Remove the master cylinder assembly.
Drain the brake fluid.

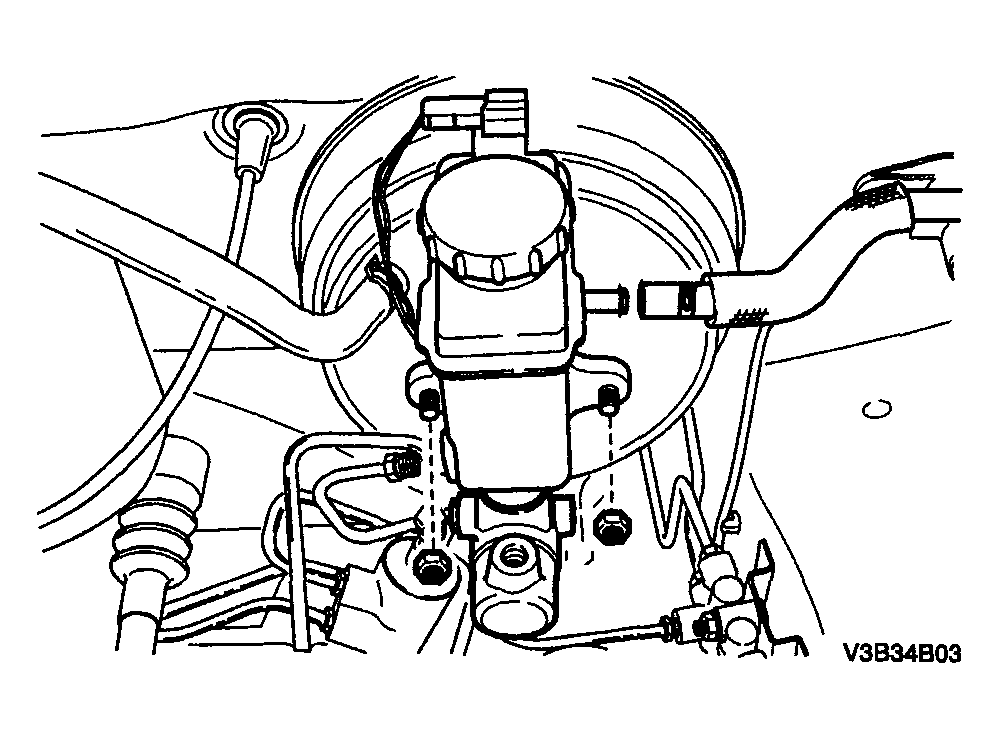

Fig 4: Removing Master Cylinder Mounting Nuts
Courtesy of SUZUKI OF AMERICA CORP.
