Brake Hose Rear Removal

Raise and suitably support the vehicle.
Disconnect the brake line from the disc brake hose at the wheel housing bracket on each side of the vehicle.
Remove the brake hose retainer.

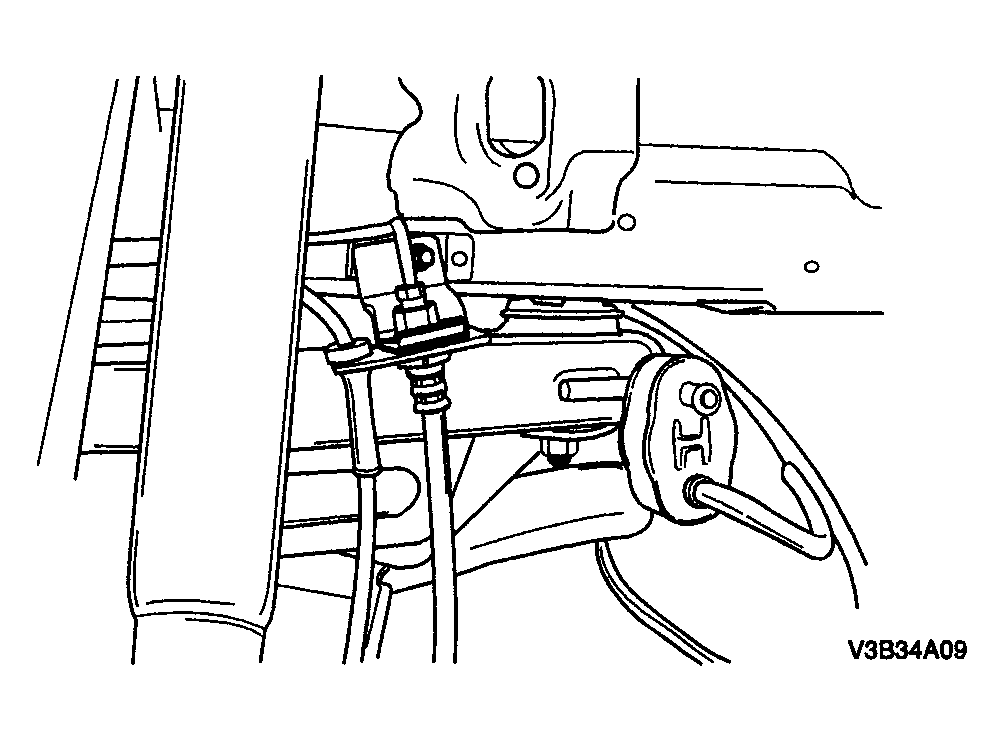

Fig 1: Removing Brake Hose Retainer
Courtesy of SUZUKI OF AMERICA CORP.
Remove the rear disc brake hose retainer and the brake hose from the bracket on the steering knuckle shaft.

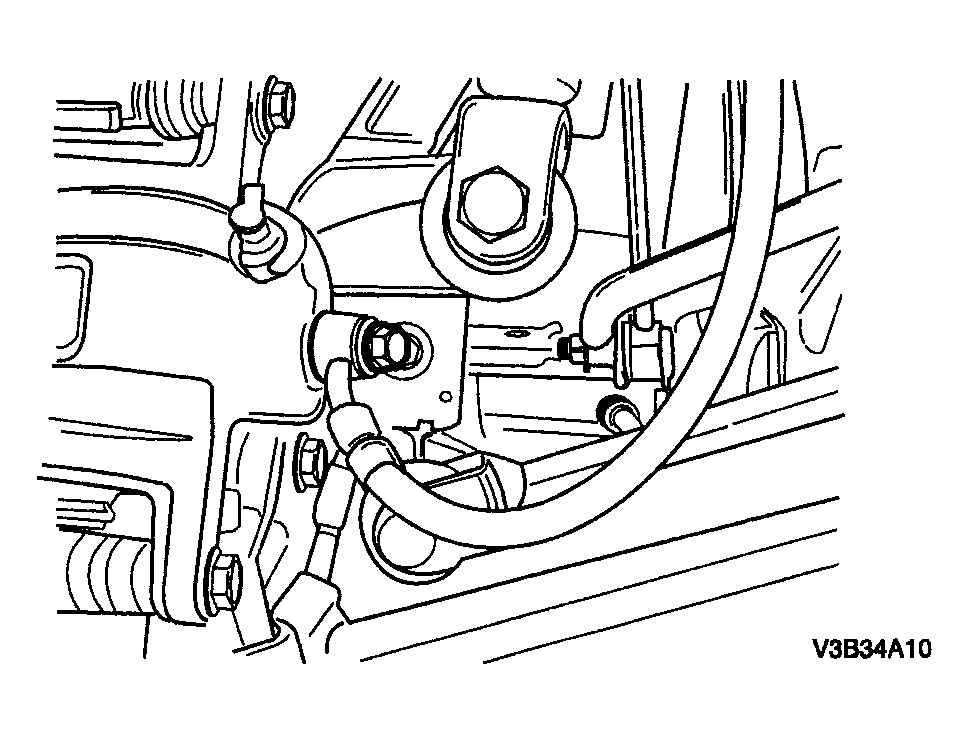

Fig 2: Removing Rear Disc Brake Hose Retainer And Brake Hose
Courtesy of SUZUKI OF AMERICA CORP.
Remove the rear disc brake hose from the caliper.

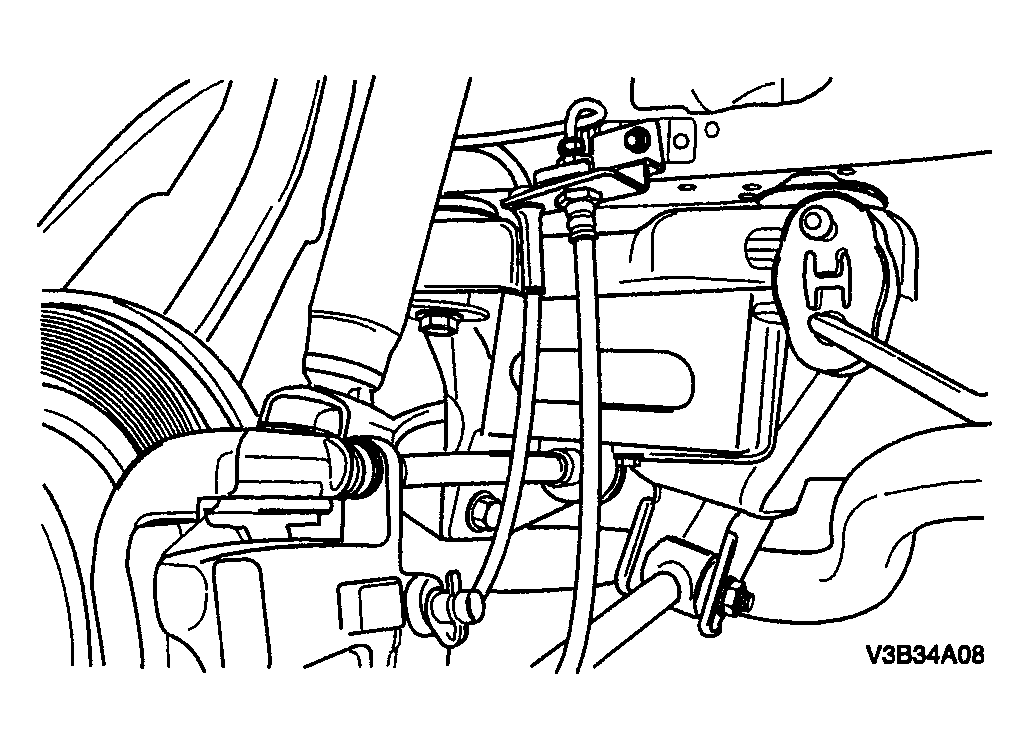

Fig 3: Removing Rear Disc Brake Hose From Caliper
Courtesy of SUZUKI OF AMERICA CORP.
