Brake Hose Rear Installation

Install the rear disc brake hose to the caliper.
Tighten

Tighten the rear disc brake hose-to-caliper bolt to 32 N.m (24 lb-ft).

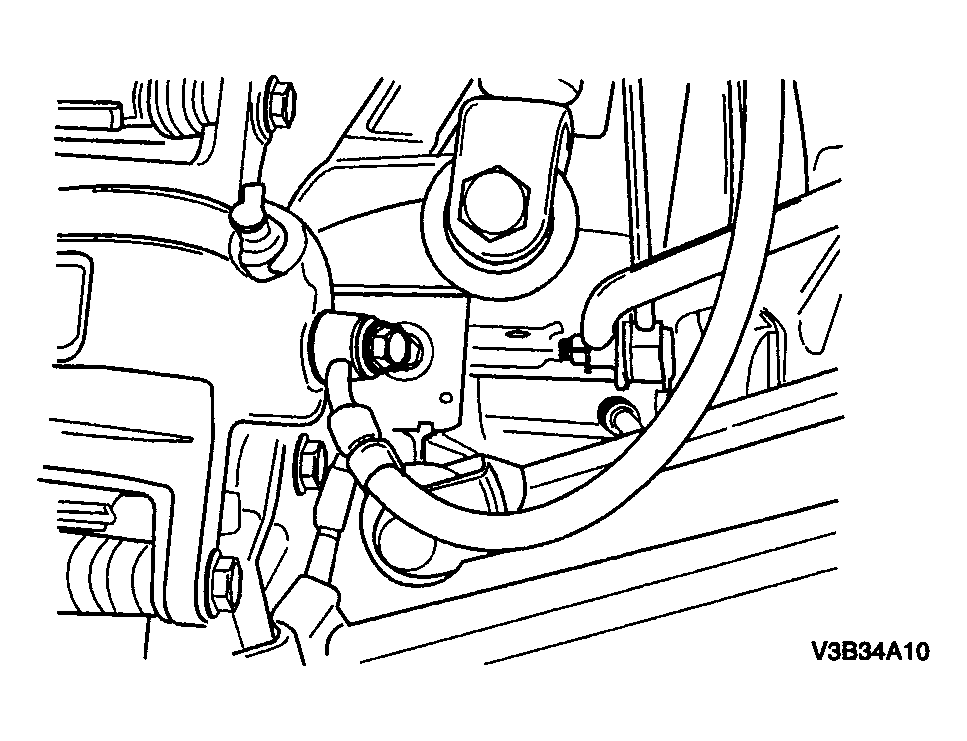

Fig 1: Installing Rear Disc Brake Hose To Caliper
Courtesy of SUZUKI OF AMERICA CORP.
Install the rear disc brake hose and the retainer on the bracket on the steering knuckle shaft.

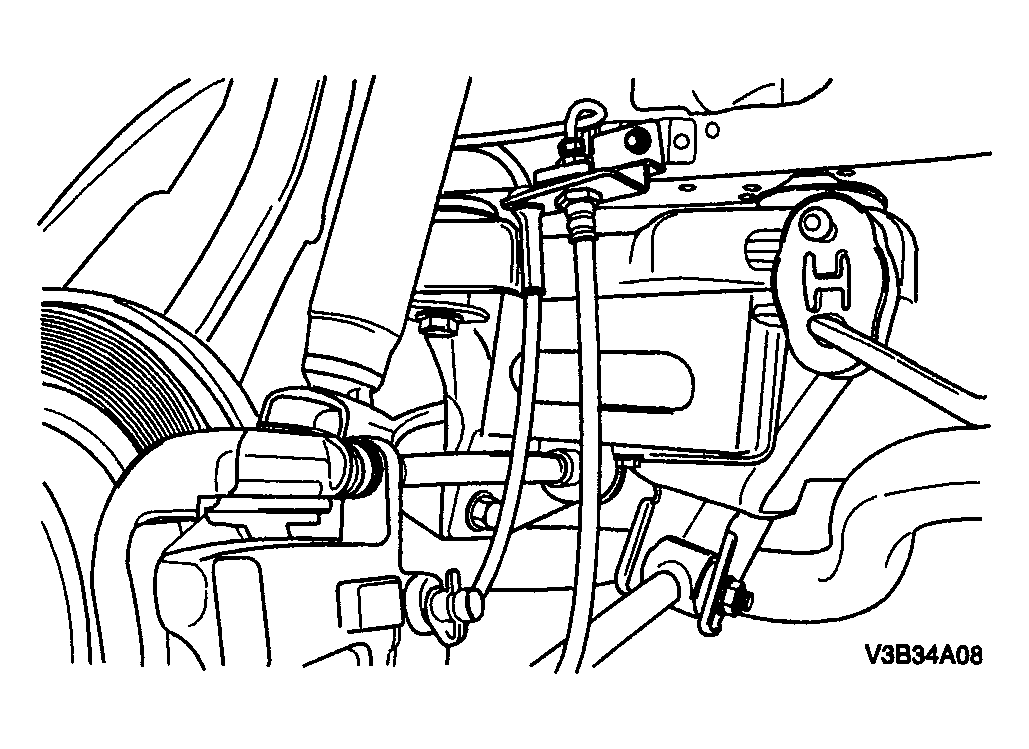

Fig 2: Installing Rear Disc Brake Hose And Retainer
Courtesy of SUZUKI OF AMERICA CORP.
Install the rear disc brake line to the brake hose on the wheel housing bracket.
Tighten

Tighten the brake line to fittings 16 N.m (12 lb-ft).
Lower the vehicle.
Bleed the brake system. Refer to "MANUAL BLEEDING THE BRAKES ".
Check the brake system for leaks.

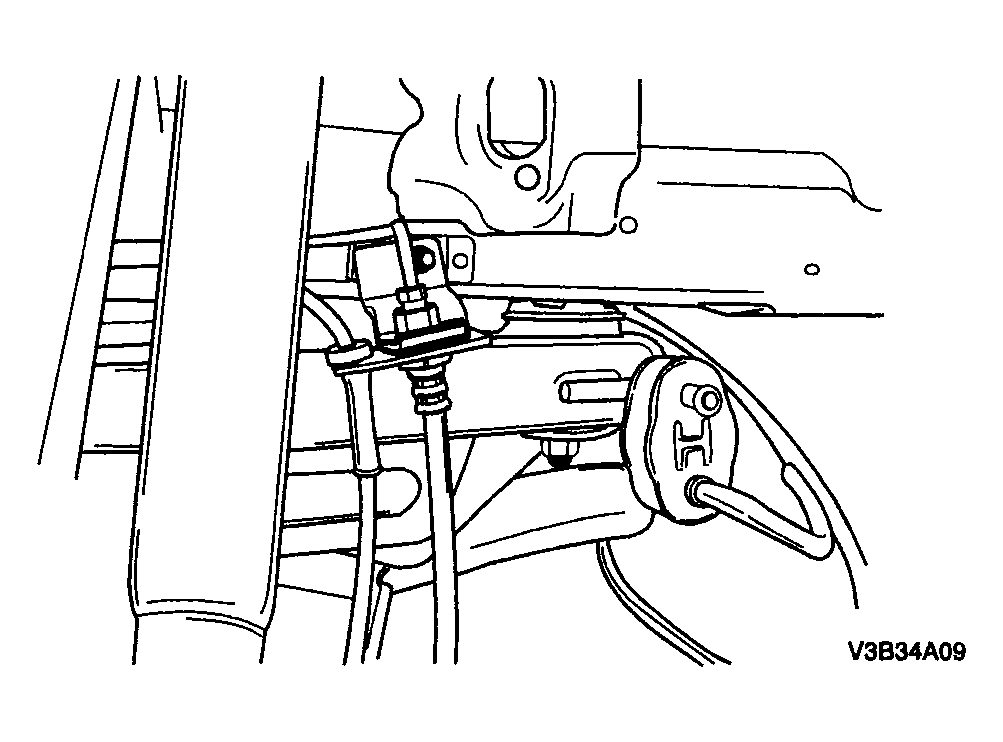

Fig 3: Installing Rear Disc Brake Line To Brake Hose On Wheel Housing Bracket
Courtesy of SUZUKI OF AMERICA CORP.
