Brake Hose Front Removal

Raise and suitably support the vehicle.
Disconnect the brake line from the brake hose support bracket on the wheel housing on each side of the vehicle.
Remove the retainer.
Remove the brake hose from the wheel housing bracket.

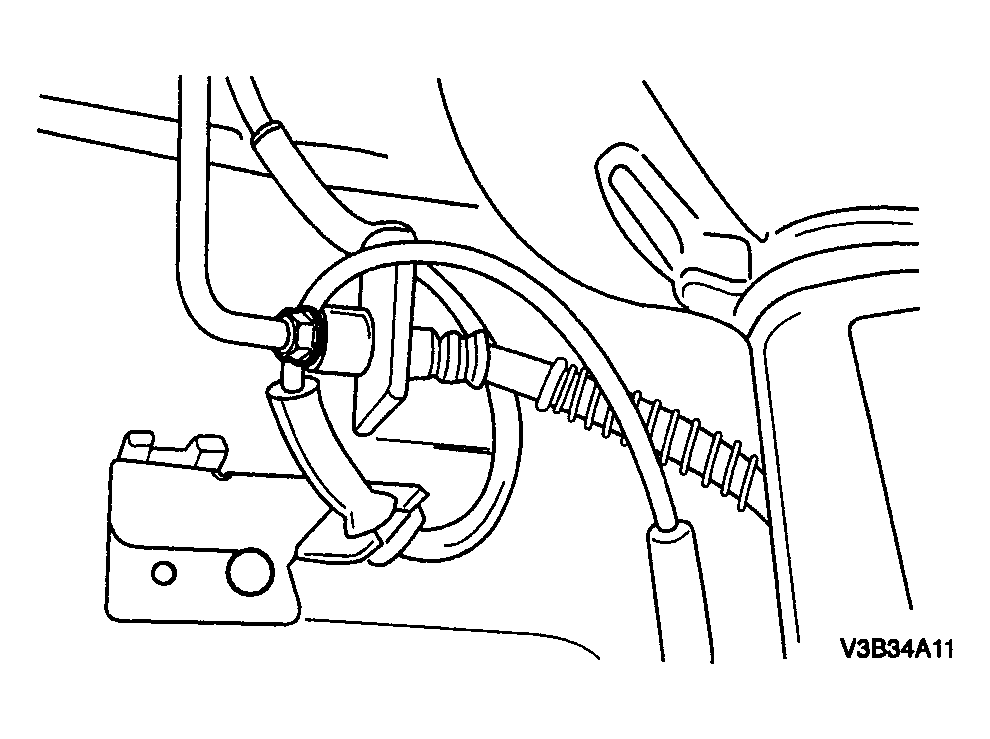

Fig 1: Removing Brake Hose From Wheel Housing Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Remove the retainer and disconnect the brake hose at the steering knuckle shaft bracket.

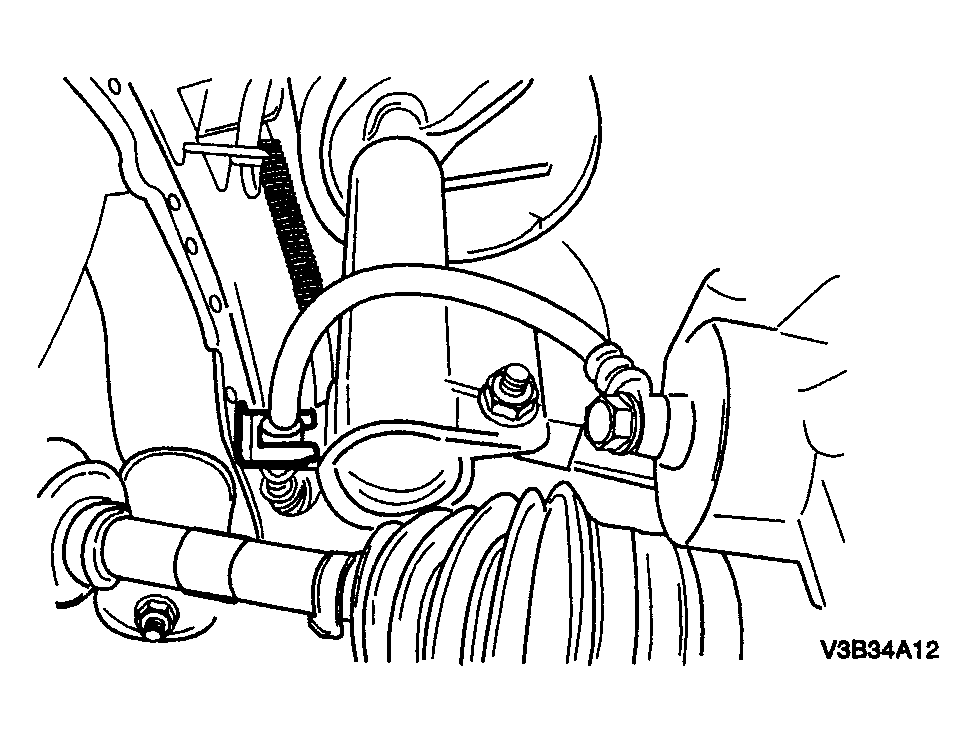

Fig 2: Disconnecting Brake Hose At Steering Knuckle Shaft Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Remove the bolt from the brake caliper.
Remove the ring seals and the disc brake hose.

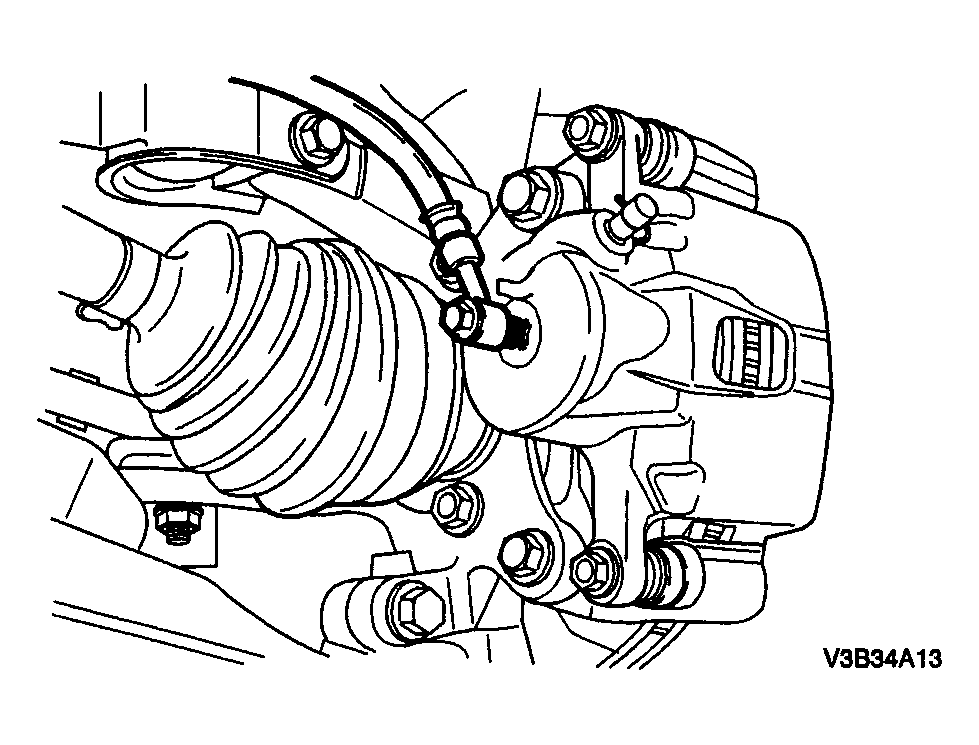

Fig 3: Removing Disc Brake Hose
Courtesy of SUZUKI OF AMERICA CORP.
