Brake Hose Front Installation

  1. Install the new disc brake hose to the caliper with the new seal rings and the bolt.

    Tighten

    Tighten the front disc brake hose-to-caliper bolt to 40 N.m (30 lb-ft).

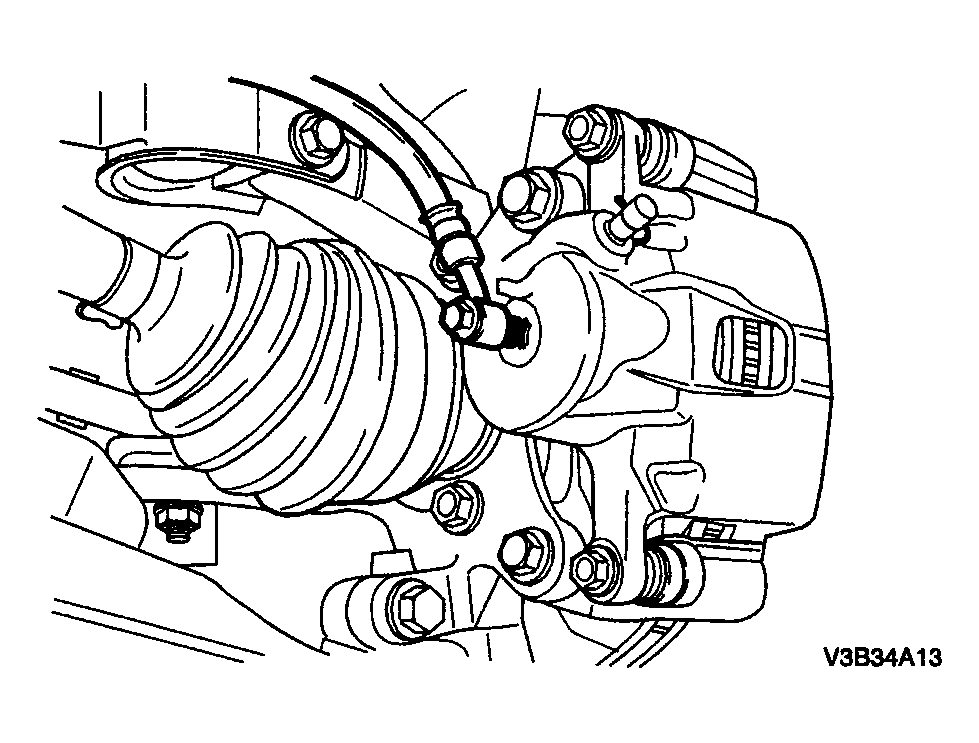

    Fig 1: Installing Disc Brake Hose To Caliper
    G04095132Courtesy of SUZUKI OF AMERICA CORP.
  2. Connect the brake hose at the steering knuckle shaft bracket and install the retainer.
    Fig 2: Connecting Brake Hose At Steering Knuckle Shaft Bracket
    G04095133Courtesy of SUZUKI OF AMERICA CORP.
  3. Connect the brake line to the brake hose on the wheel housing bracket on each side of the vehicle and install the retainer.

    Tighten

    Tighten the brake line fittings to 16 N.m (12 lb-ft).

  4. Lower the vehicle.
  5. Bleed the brake system. Refer to "MANUAL BLEEDING THE BRAKES ".
  6. Check the brake system for leaks.

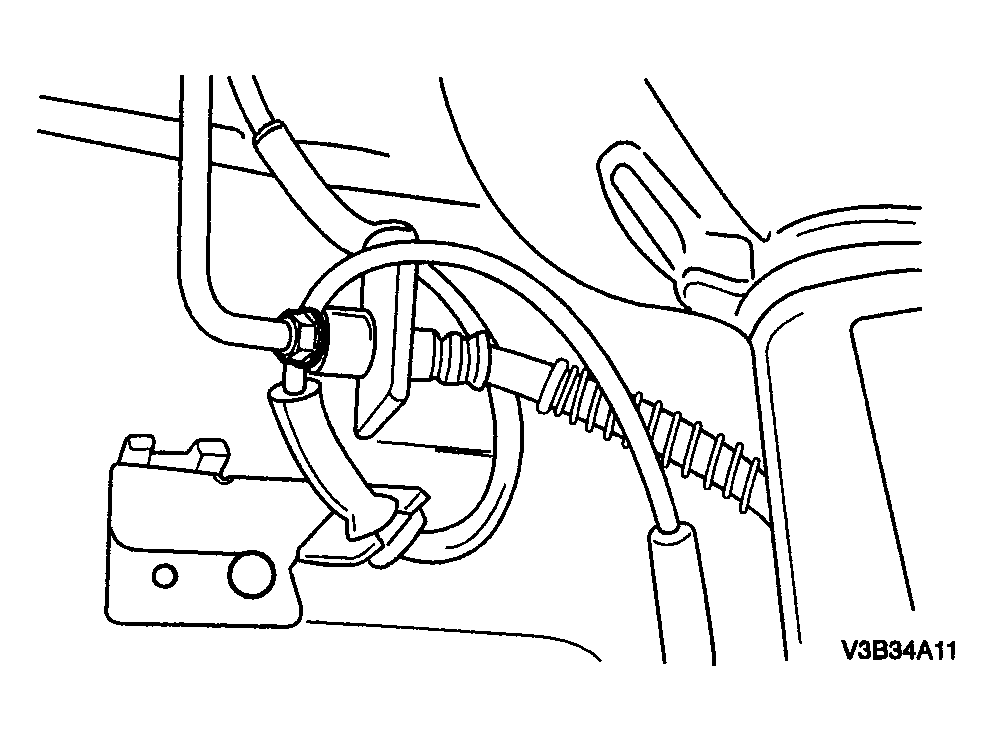

    Fig 3: Connecting Brake Line To Brake Hose On Wheel Housing Bracket
    G04095134Courtesy of SUZUKI OF AMERICA CORP.
