Brake Fluid Reservoir Removal

CAUTION: Remove the brake fluid reservoir only when it must be replaced because of damage or leaks.

Disconnect the harness connector that is mounted to the top of the brake fluid reservoir.

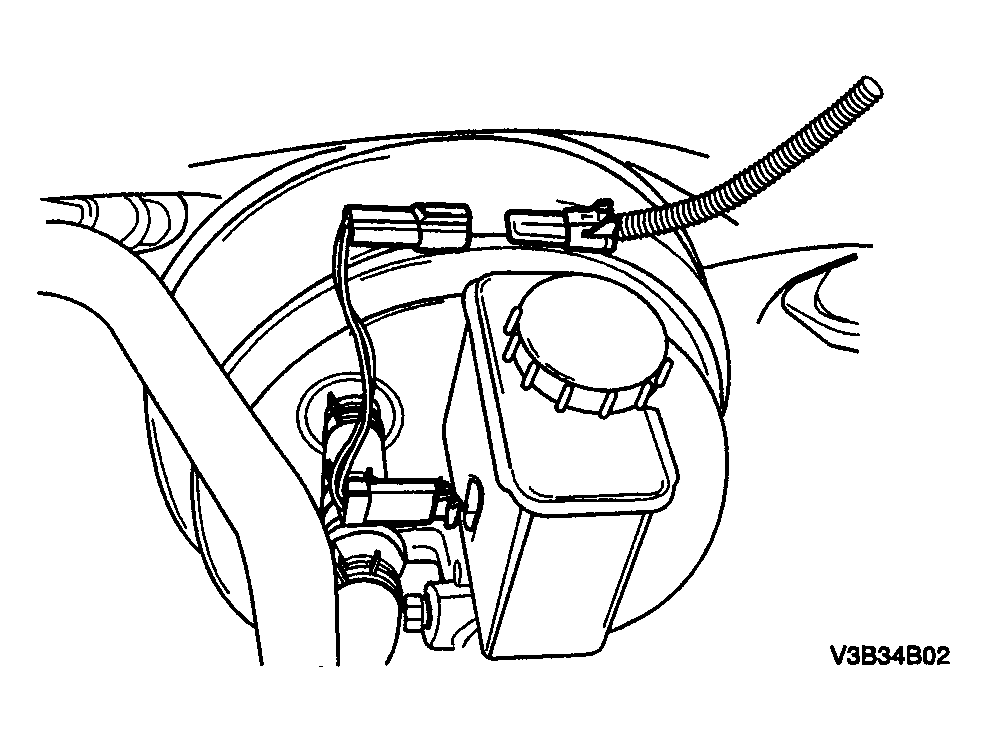

Fig 1: Disconnecting Harness Connector Mounted To Top Of Brake Fluid Reservoir
Courtesy of SUZUKI OF AMERICA CORP.
Remove the brake fluid level switch and wire harness. Slide the switch out of the reservoir. It is not necessary to drain the fluid.

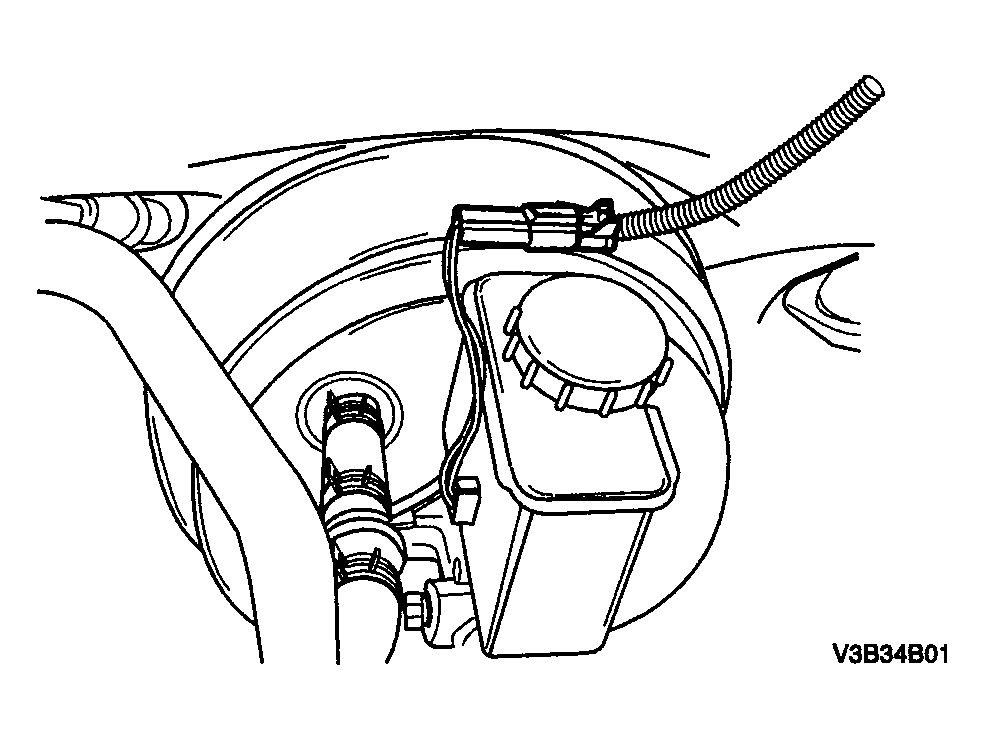

Fig 2: Removing Brake Fluid Level Switch And Wire Harness
Courtesy of SUZUKI OF AMERICA CORP.
For vehicles with the manual transaxle, disconnect the clip that secures the clutch hose connection to the master cylinder and move the clip out of the way.
Remove the clutch hose from the master cylinder.

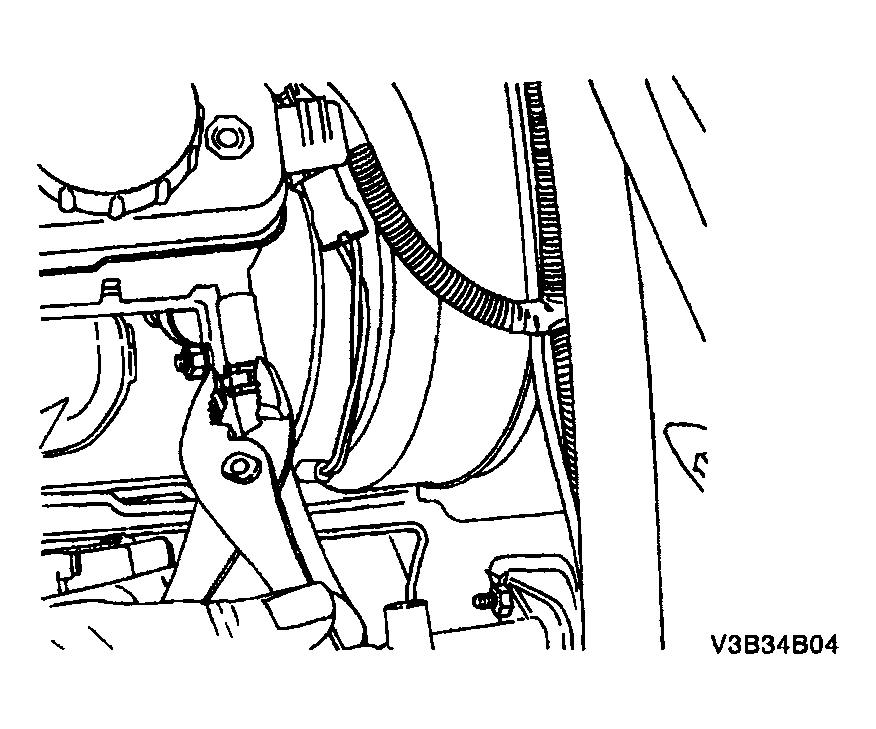

Fig 3: Disconnecting Clip Securing Clutch Hose Connection To Master Cylinder
Courtesy of SUZUKI OF AMERICA CORP.
Remove the screw that holds the brake fluid reservoir to the master cylinder body.
Remove the reservoir from the retaining clamps by gently prying the reservoir upward with a screwdriver.
Remove the brake fluid reservoir from the master cylinder body by tilting the reservoir and pulling it upward.

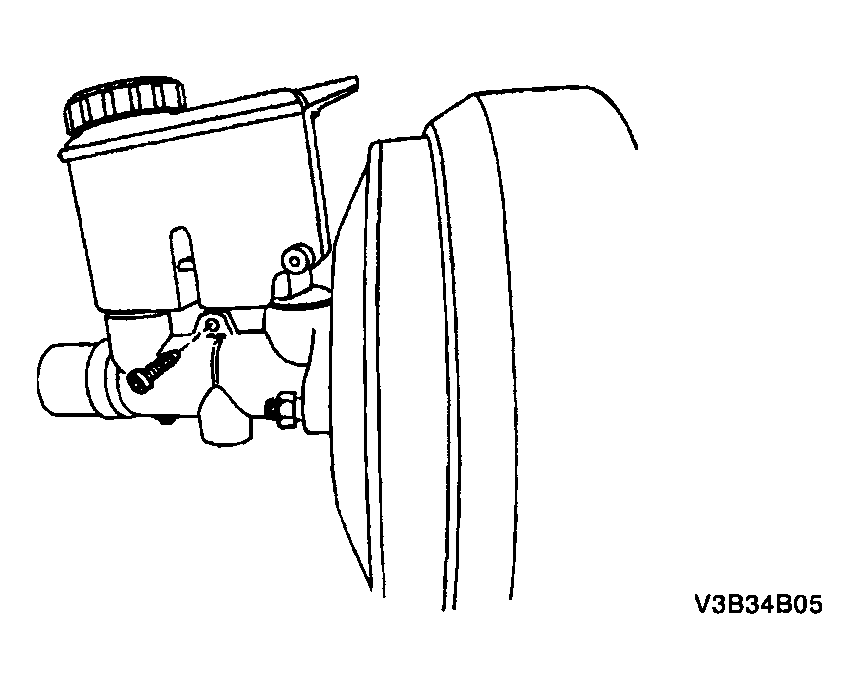

Fig 4: Removing Screw Holding Brake Fluid Reservoir To Master Cylinder Body
Courtesy of SUZUKI OF AMERICA CORP.
Remove and discard the brake fluid reservoir seals from the master cylinder body.

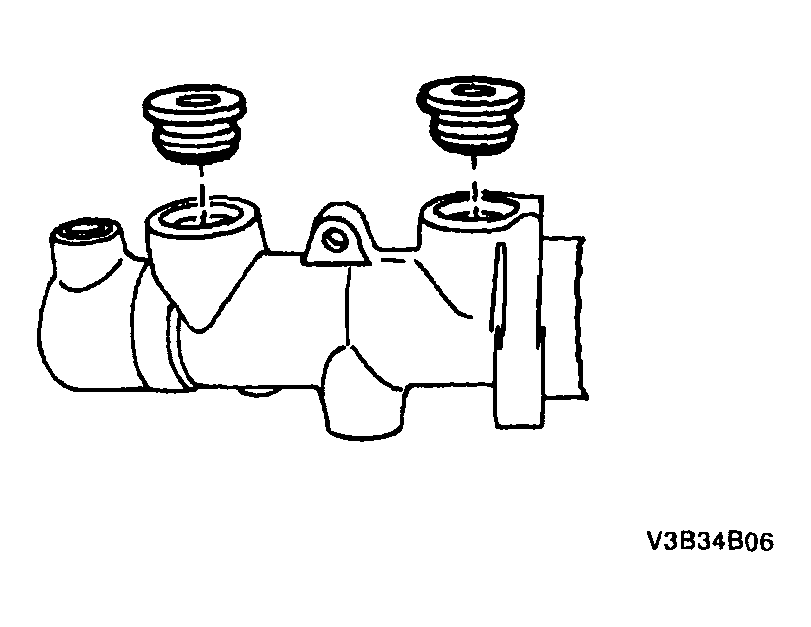

Fig 5: Removing Brake Fluid Reservoir Seals From Master Cylinder Body
Courtesy of SUZUKI OF AMERICA CORP.
