Tweeter Speakers Removal

  1. Disconnect the negative battery cable.
  2. Remove the tweeter speaker by prying the tweeter speaker out of the instrument panel.
  3. Disconnect the electrical connector.

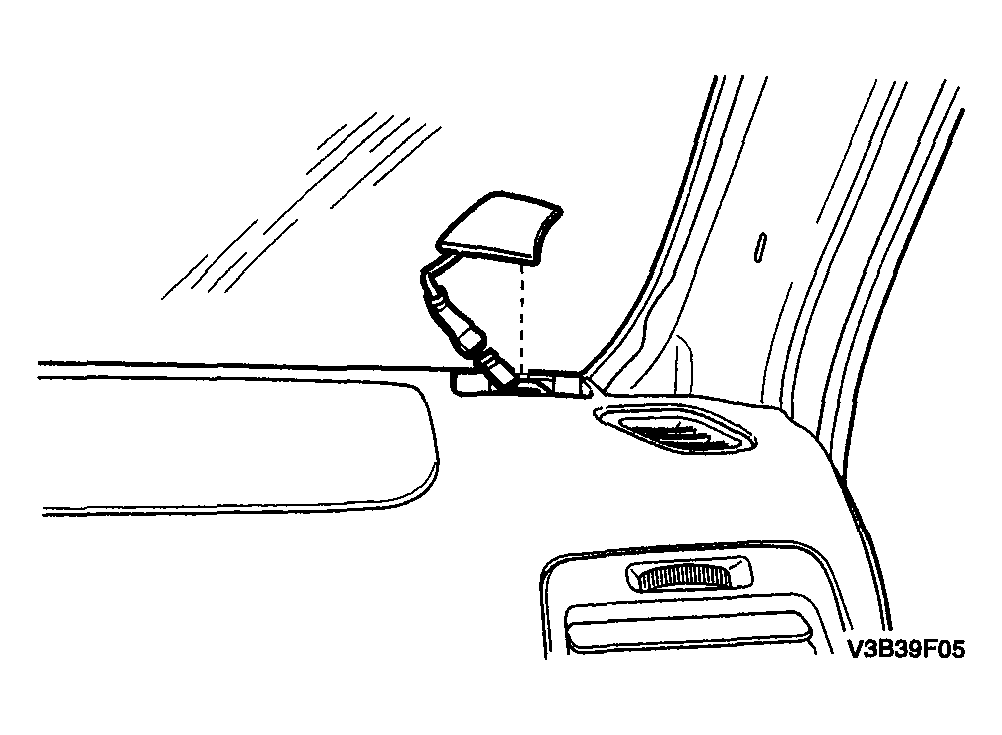

    Fig 1: Removing Tweeter Speaker
    G04096533Courtesy of SUZUKI OF AMERICA CORP.
