Instrument Panel Illumination Wiring System Diagram

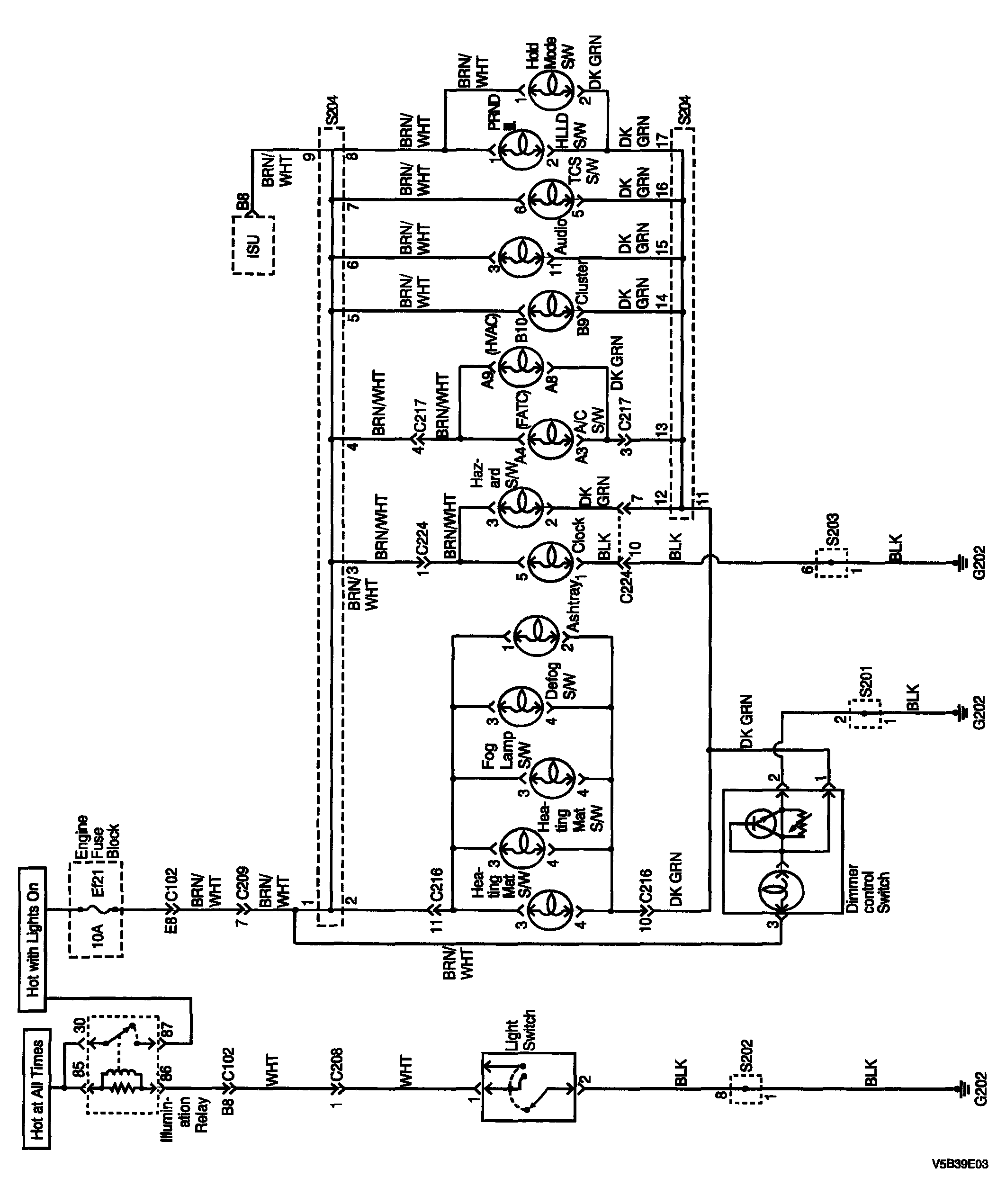

Fig 1: Instrument Panel Illumination Wiring System Diagram (1 Of 2)
G04096134Courtesy of SUZUKI OF AMERICA CORP.

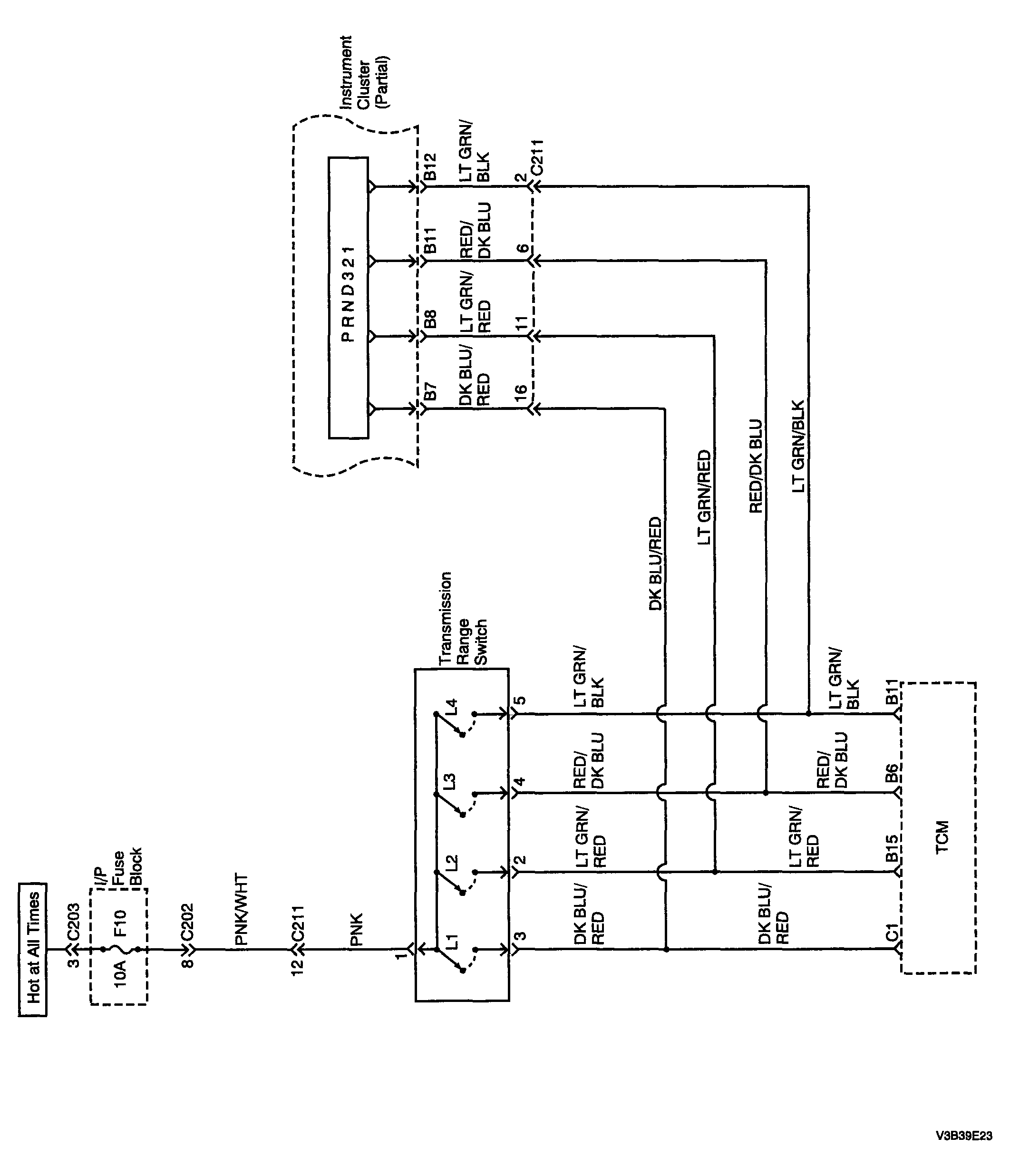

Fig 2: Instrument Panel Illumination Wiring System Diagram (2 Of 2)
G04096135Courtesy of SUZUKI OF AMERICA CORP.
