Instrument Cluster Meters and Gauge Wiring System Diagram

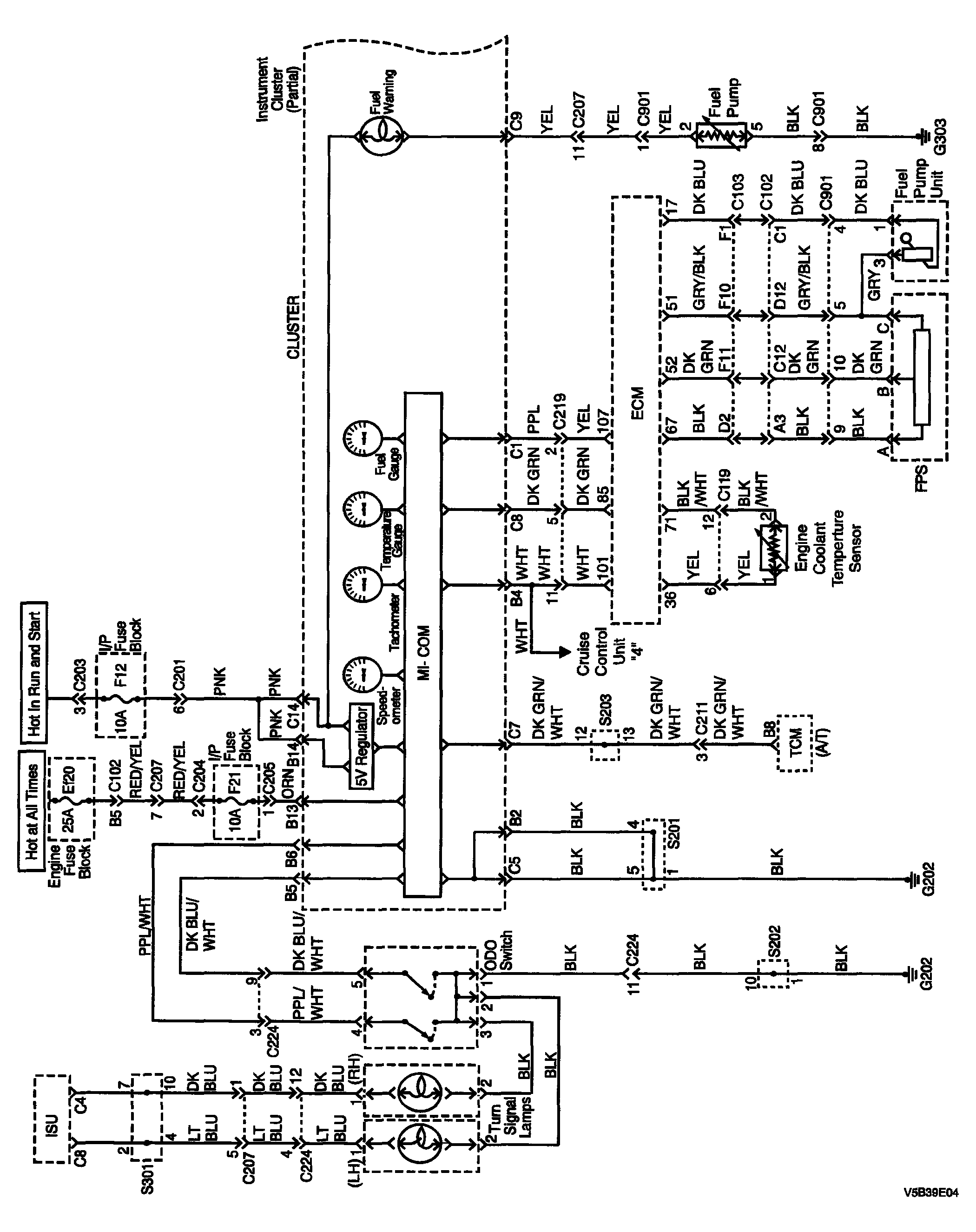

Fig 1: Instrument Cluster Meters And Gauge Wiring System Diagram

G04096136

Courtesy of SUZUKI OF AMERICA CORP.
