Instrument Cluster Indicator Lamps Wiring System Diagram

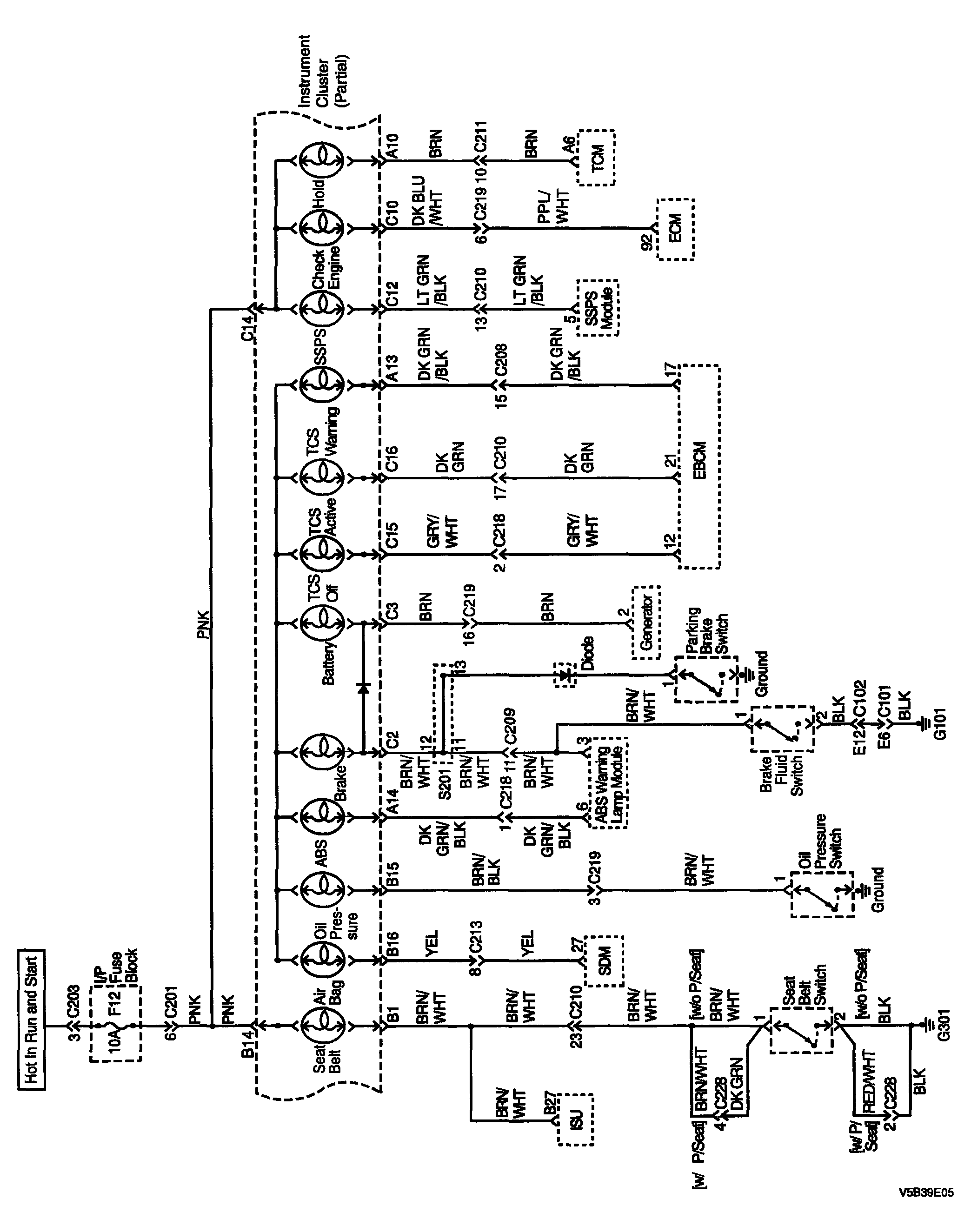

Fig 1: Instrument Cluster Indicator Lamps Wiring System Diagram (1 Of 2)
G04096137Courtesy of SUZUKI OF AMERICA CORP.

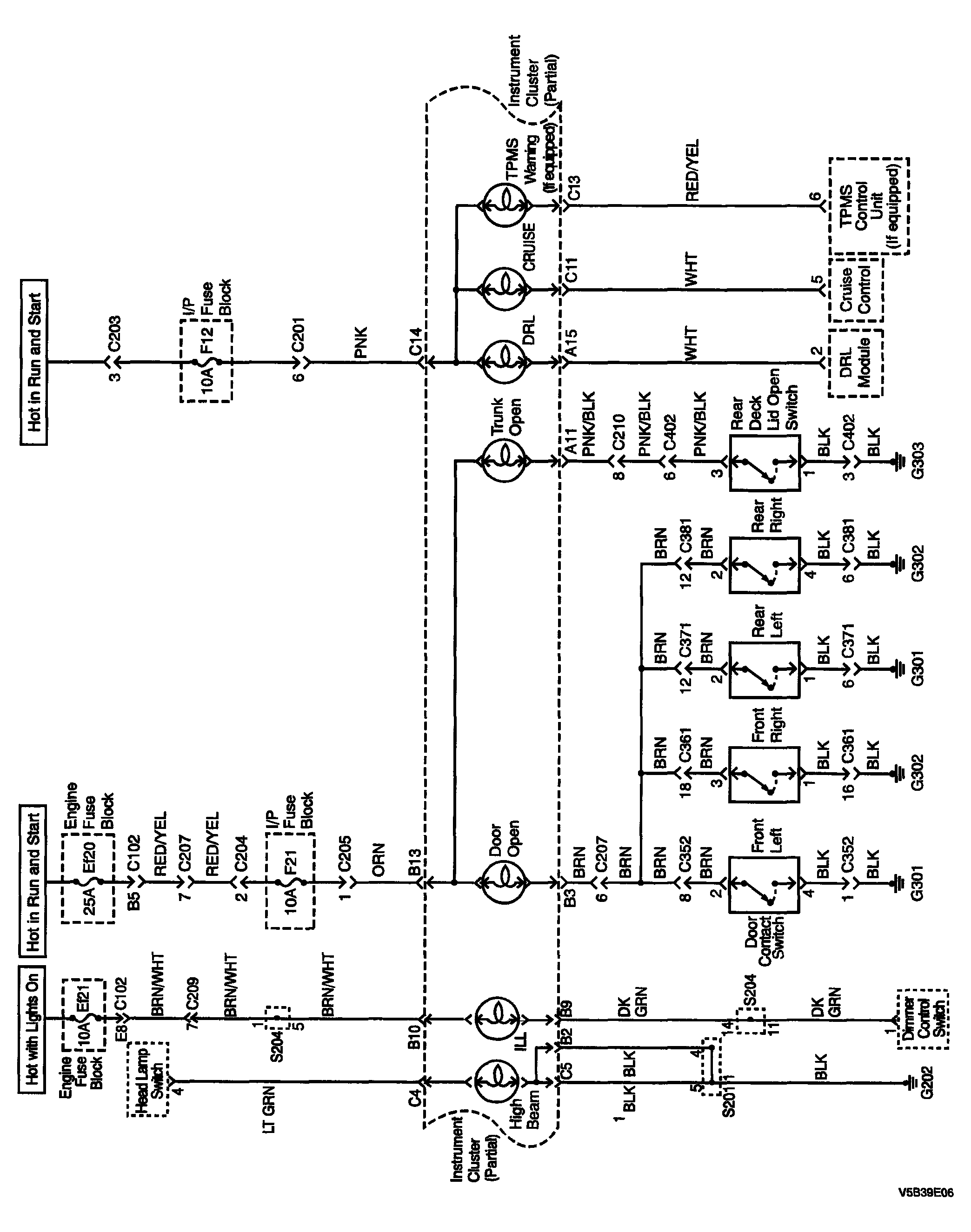

Fig 2: Instrument Cluster Indicator Lamps Wiring System Diagram (2 Of 2)
G04096138Courtesy of SUZUKI OF AMERICA CORP.
