Tachometer Installation

  1. Install the tachometer to the instrument cluster.
  2. Install the instrument cluster lens.

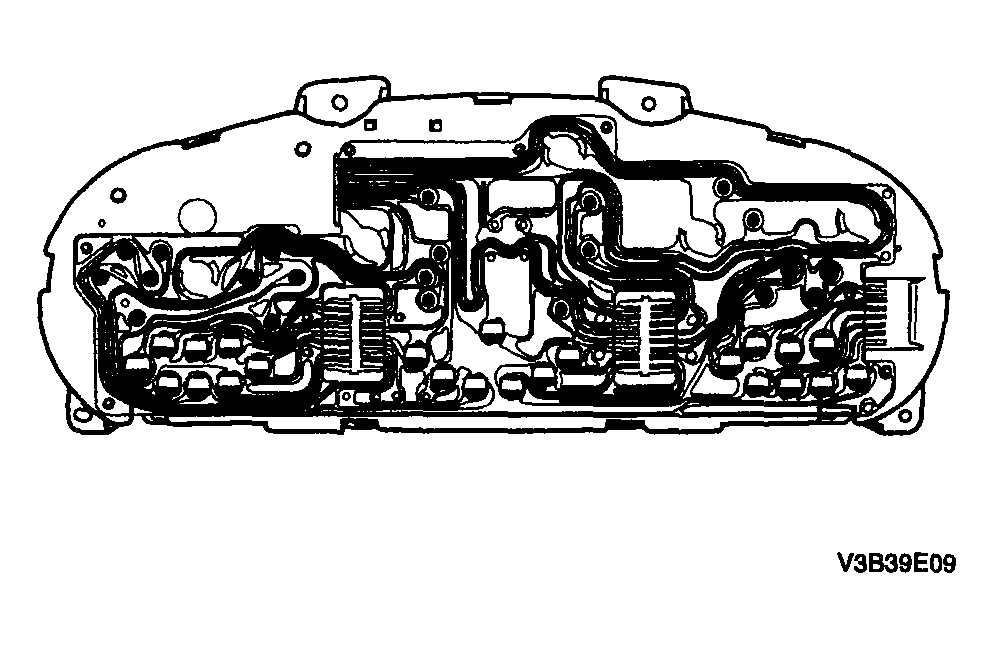

    Fig 1: Installing Instrument Cluster Lens
    G04096162Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the instrument cluster. Refer to "INSTRUMENT CLUSTER INSTALLATION ".
  4. Connect the negative battery cable.

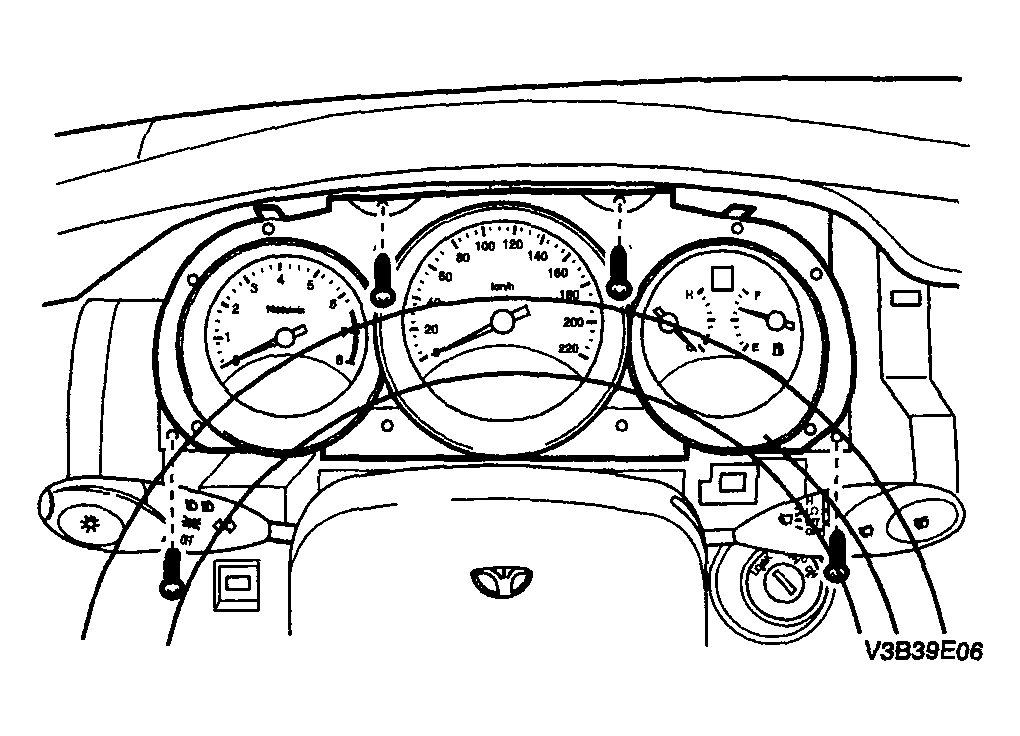

    Fig 2: Installing Instrument Cluster
    G04096163Courtesy of SUZUKI OF AMERICA CORP.
