Instrument Panel Vents Installation

  1. Press the vents onto the housing.

    Tighten

    Tighten the instrument panel vent screws to 3 N.m (27 lb-in).

  2. Install the instrument cluster trim panel. Refer to "INSTRUMENT CLUSTER TRIM PANEL INSTALLATION ".

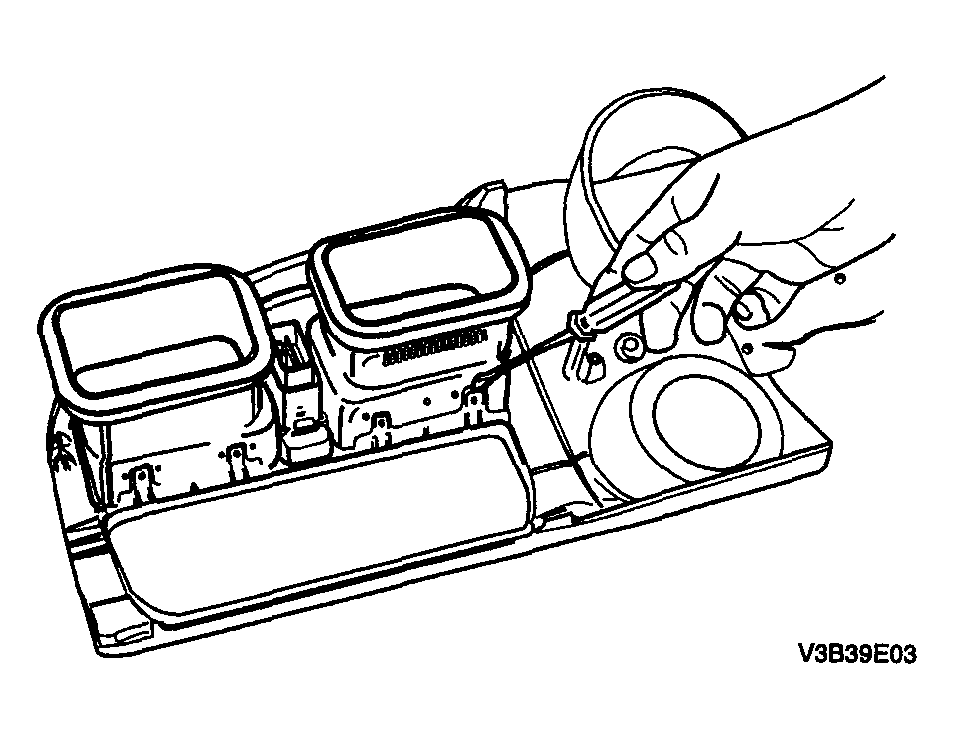

    Fig 1: Pressing Vents Onto Housing
    G04096147Courtesy of SUZUKI OF AMERICA CORP.
