Instrument Cluster Indicator Lamps Installation

  1. Install the new bulb.
  2. Install the instrument cluster. Refer to "INSTRUMENT CLUSTER INSTALLATION ".
  3. Connect the negative battery cable.

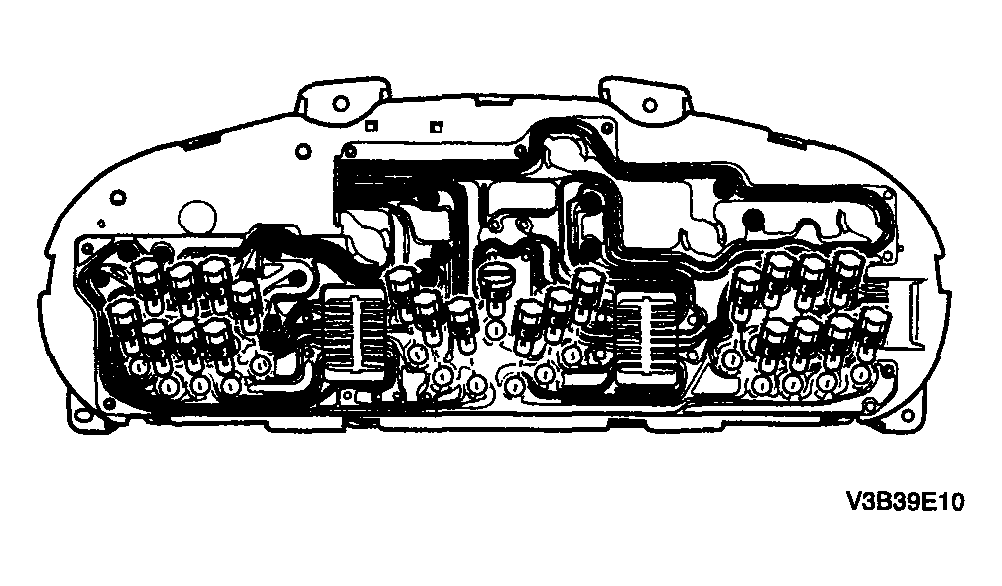

    Fig 1: Installing Instrument Cluster Indicator Lamps
    G04096169Courtesy of SUZUKI OF AMERICA CORP.
