Instrument Cluster Dimmer / Headlamp Leveling Switch Removal

  1. Remove the instrument cluster dimmer switch assembly.
  2. Disconnect the electrical connectors.

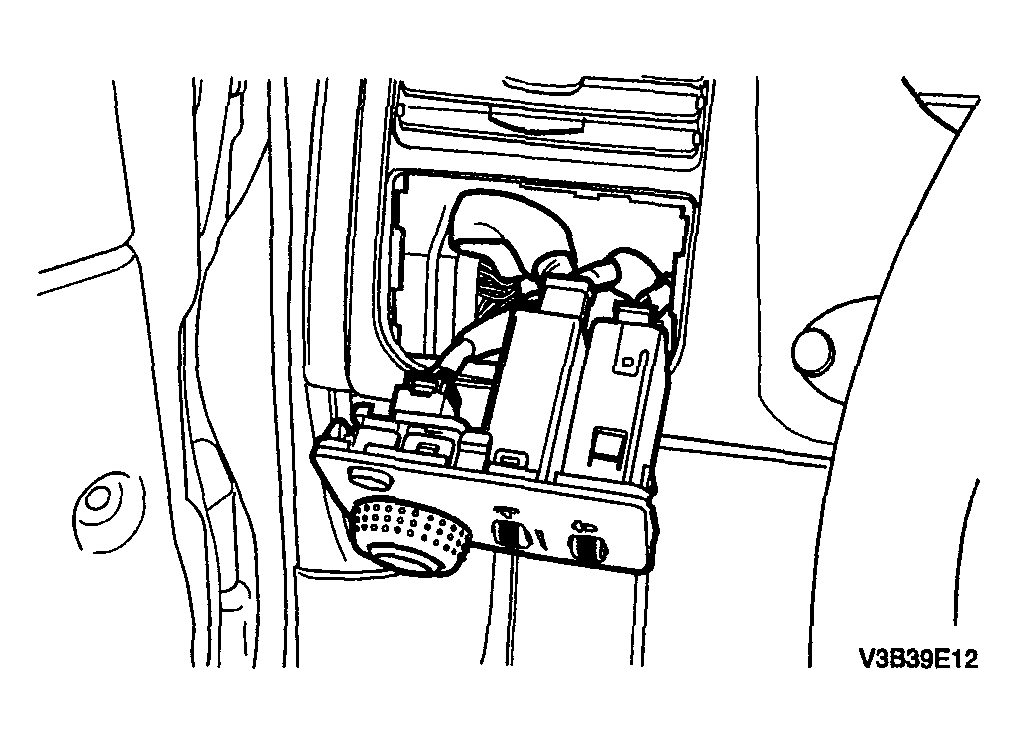

    Fig 1: Removing Instrument Cluster Dimmer Switch Assembly
    G04096154Courtesy of SUZUKI OF AMERICA CORP.
