Fuel and Temperature Gauge Installation

  1. Install the fuel and the temperature gauge to the cluster assembly.
    Fig 1: Installing Instrument Cluster Lens
    G04096166Courtesy of SUZUKI OF AMERICA CORP.
  2. Install the instrument cluster lens.
  3. Install the instrument cluster. Refer to "INSTRUMENT CLUSTER INSTALLATION ".

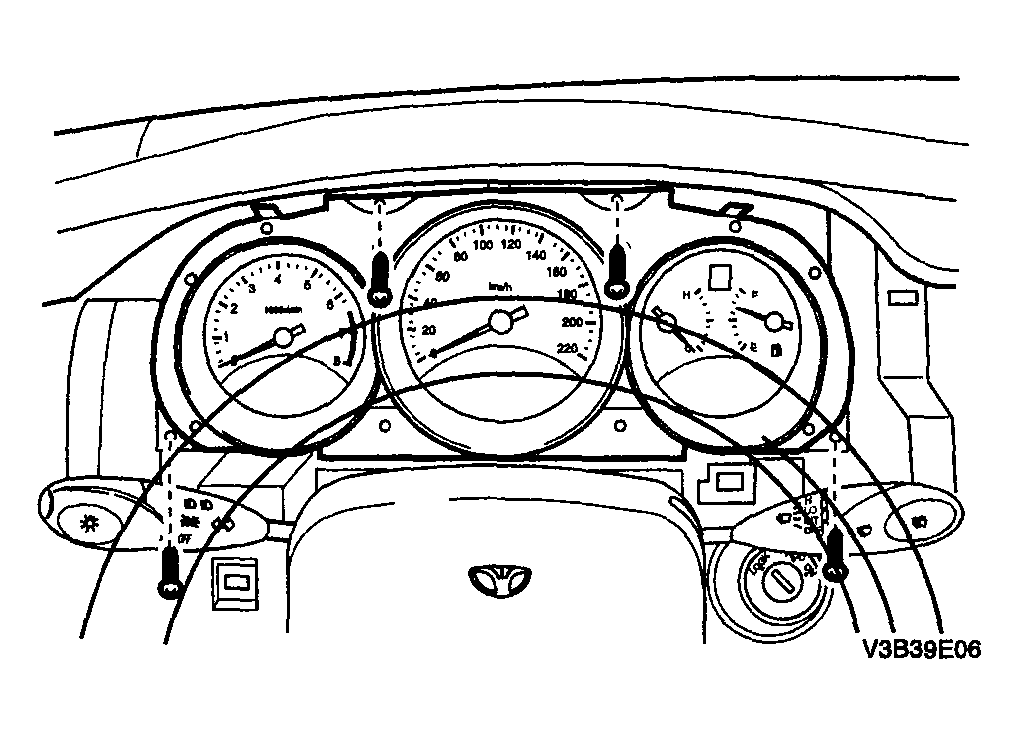

    Fig 2: Installing Instrument Cluster
    G04096167Courtesy of SUZUKI OF AMERICA CORP.
  4. Connect the negative battery cable.
