Dual Horns Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the electrical connector.
  3. Remove the bolt and the horn.

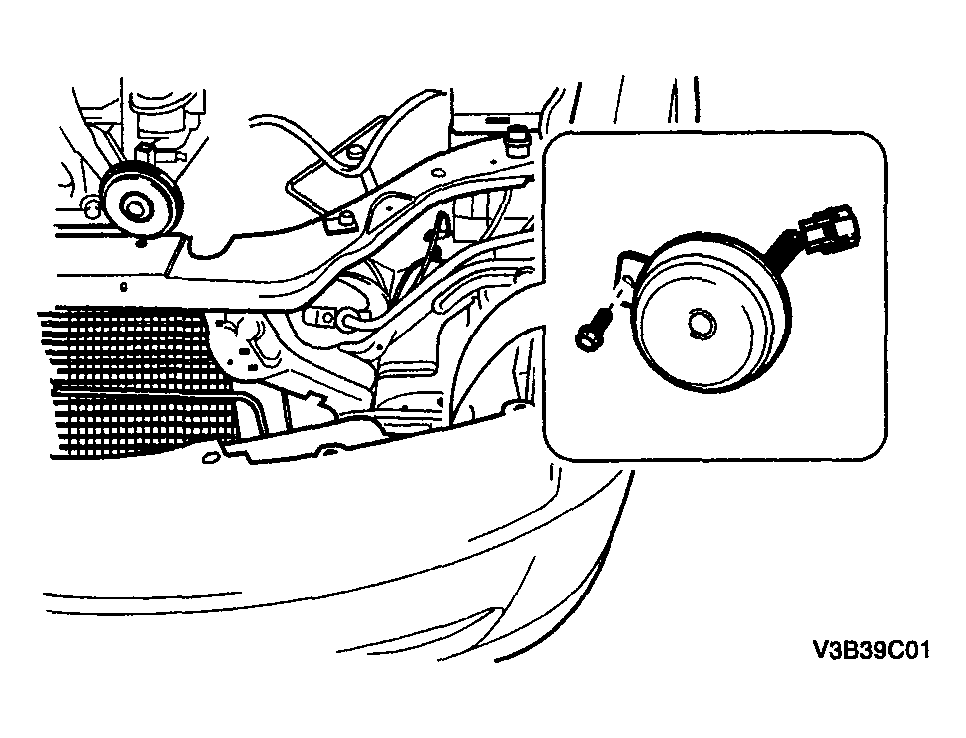

    Fig 1: Removing Bolt And Horn
    G04096184Courtesy of SUZUKI OF AMERICA CORP.
