Master Cylinder Assembly Removal and Installation: Removal

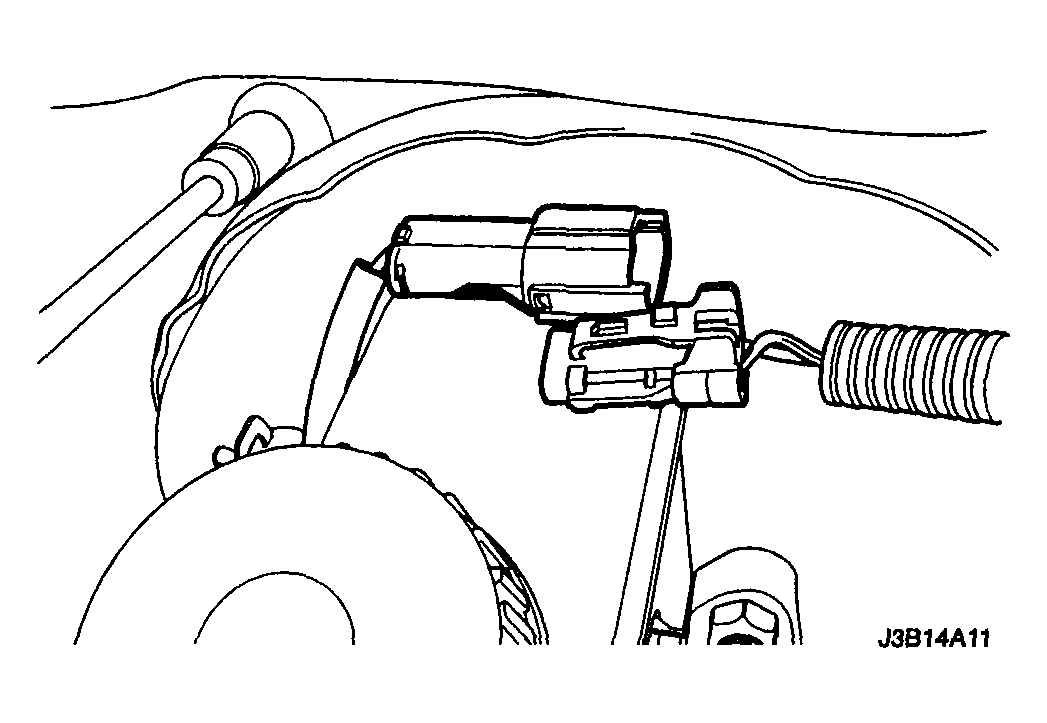

- Disconnect the electrical connector from the reservoir.
Courtesy of SUZUKI OF AMERICA CORP.

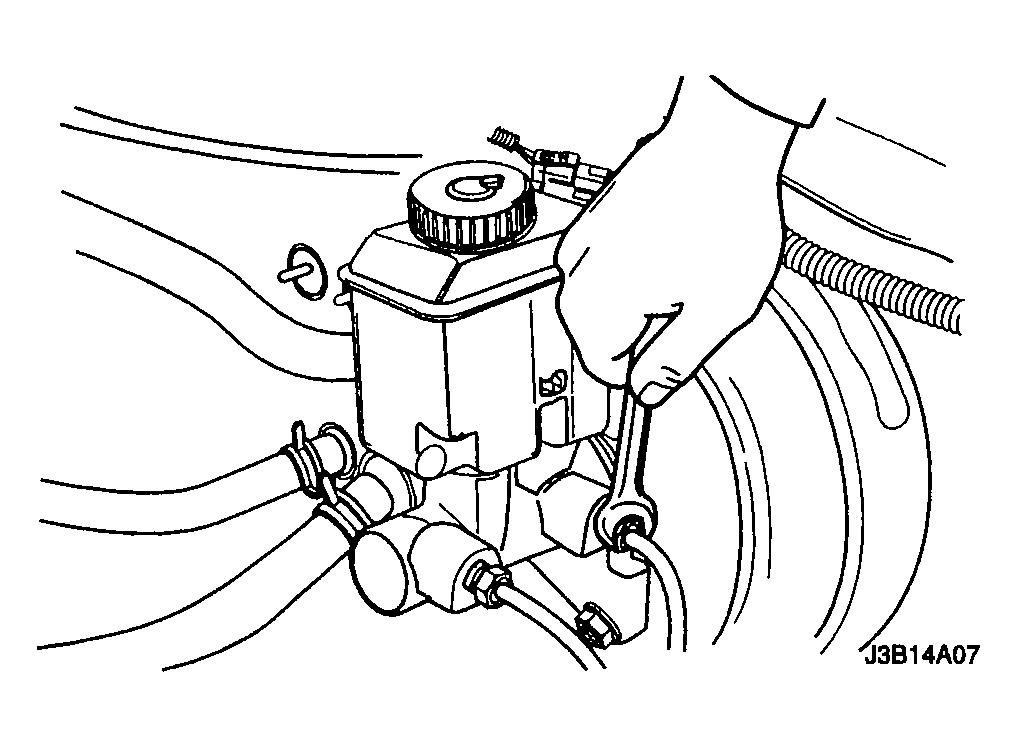

- For vehicles with the ABS braking system, disconnect the brake lines from the master cylinder body.
- For vehicles with the non-ABS braking system, disconnect the brake lines from the proportioning valves.
- For vehicles with the manual transaxle, disconnect the clip to the clutch hose connection to the master cylinder and move the clip out of the way.
- Remove the clutch hose from the master cylinder if equipped.
- Plug the opening to the brake lines to prevent fluid loss and contamination.
Courtesy of SUZUKI OF AMERICA CORP.

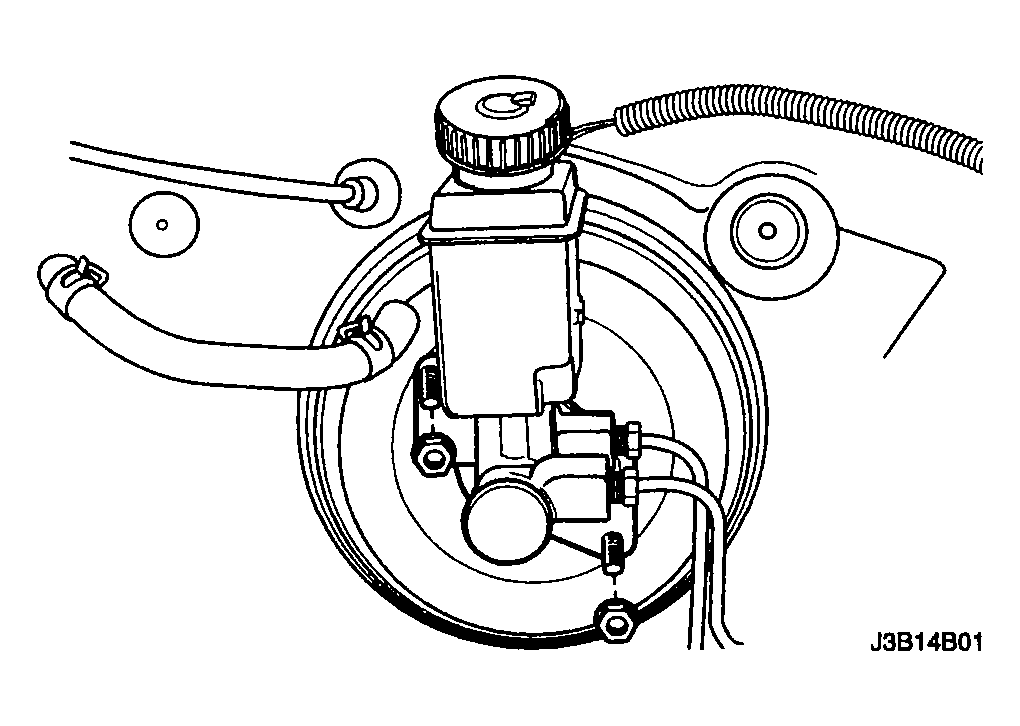

- Remove the attaching nuts from the power booster.
- Remove the master cylinder assembly.
- Drain the brake fluid.
Courtesy of SUZUKI OF AMERICA CORP.
