Master Cylinder Assembly Removal and Installation: Installation

Install the master cylinder assembly with the new attaching nuts.
Tighten

Tighten the master cylinder attaching nuts to 18 N.m (13 lb-ft).

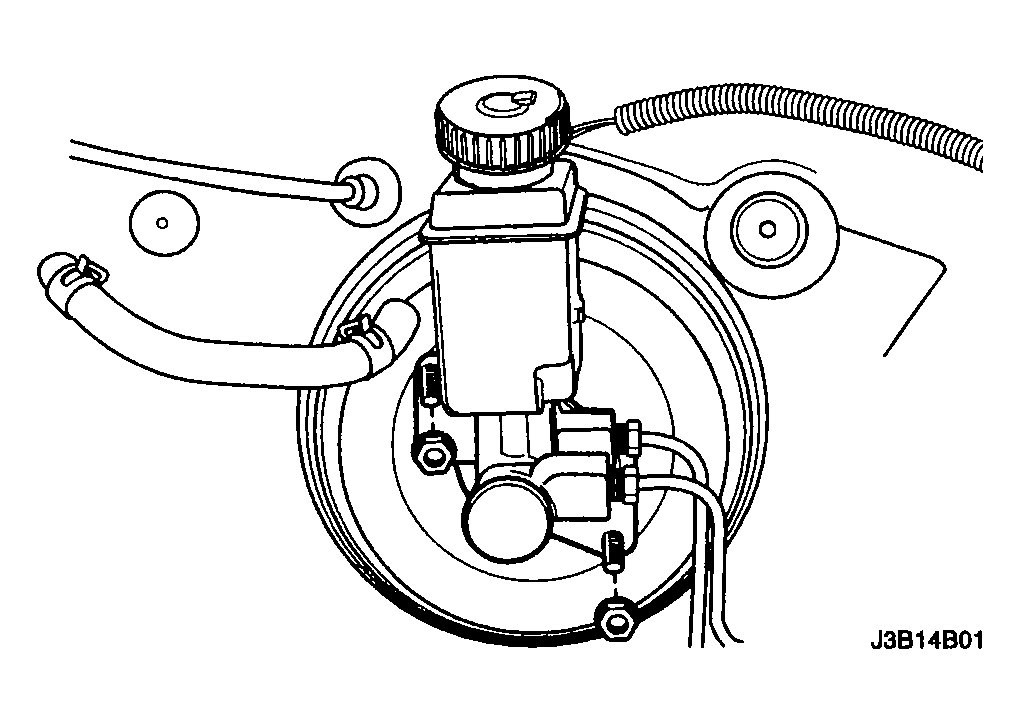

Fig 1: Installing Master Cylinder Assembly
Courtesy of SUZUKI OF AMERICA CORP.
For vehicles with the ABS braking system (as shown), connect the brake lines to the cylinder body.
For vehicles with the non-ABS braking system, connect the brake lines to the proportioning valves.
Tighten

Tighten the brake lines to 16 N.m (12 lb-ft).
For vehicles with the manual transaxle, connect the clip to the clutch hose connection to the master cylinder reservoir if equipped.

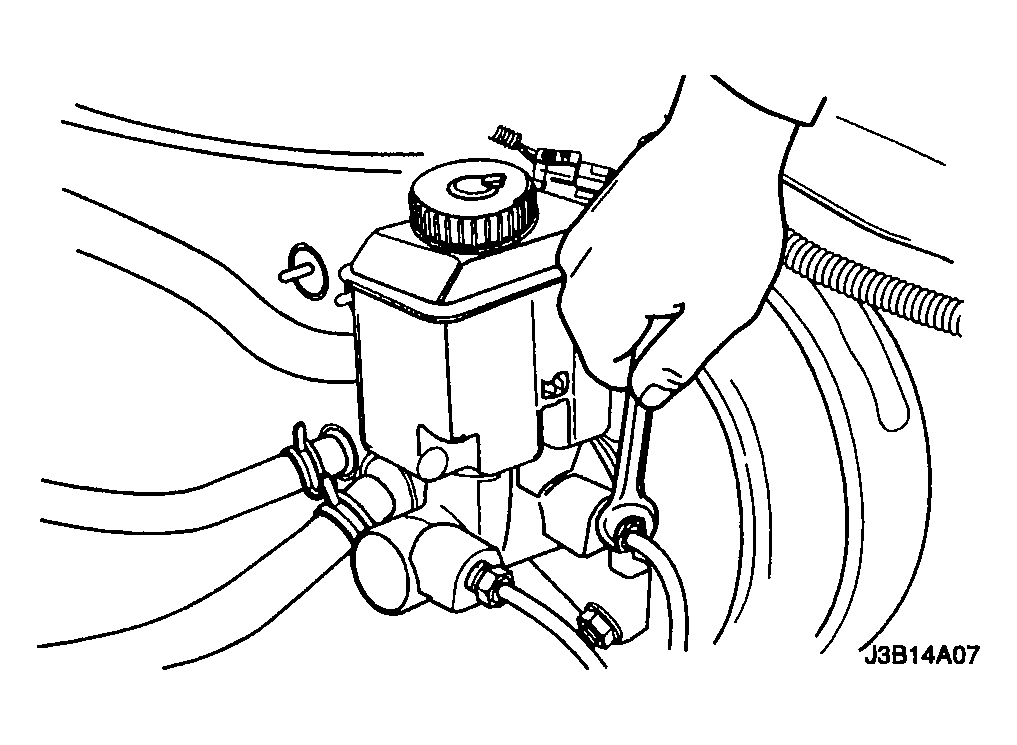

Fig 2: Tightening Brake Lines
Courtesy of SUZUKI OF AMERICA CORP.
Connect the electrical connector.
Add brake fluid.
Check for leaks and recheck the fluid level.
Bleed the brake system. Refer to "MANUAL BLEEDING THE BRAKES :".
For vehicles with the manual transaxle, bleed the clutch master cylinder. Refer to "CLUTCH MASTER CYLINDER ASSEMBLY REMOVAL AND INSTALLATION :".

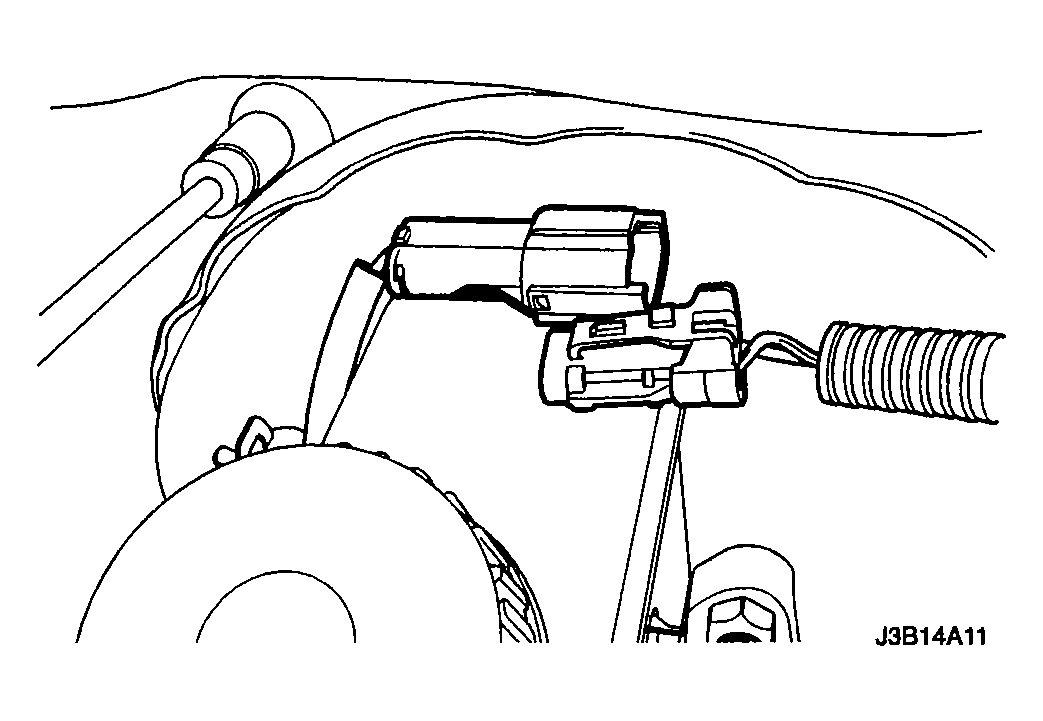

Fig 3: Connecting Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
