Brake Pedal Removal and Installation: Removal

  1. Remove the instrument panel. Refer to "INSTRUMENT PANEL REMOVAL AND INSTALLATION :".

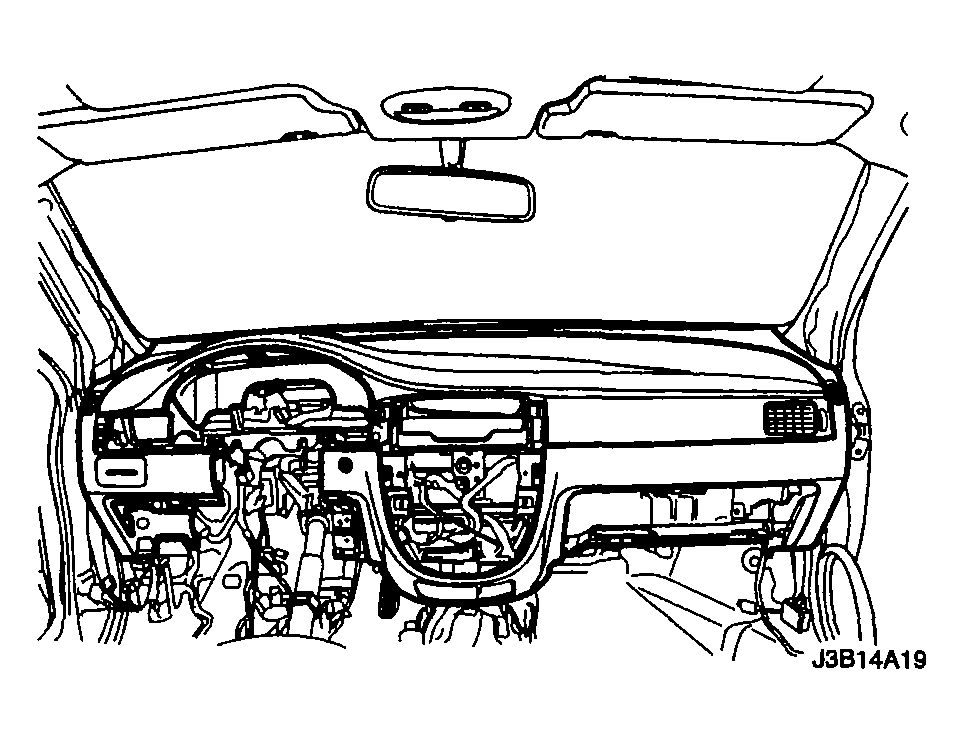

    Fig 1: Removing Instrument Panel
    G04103266Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove the nuts from the brace.
  3. Remove the brake pedal.

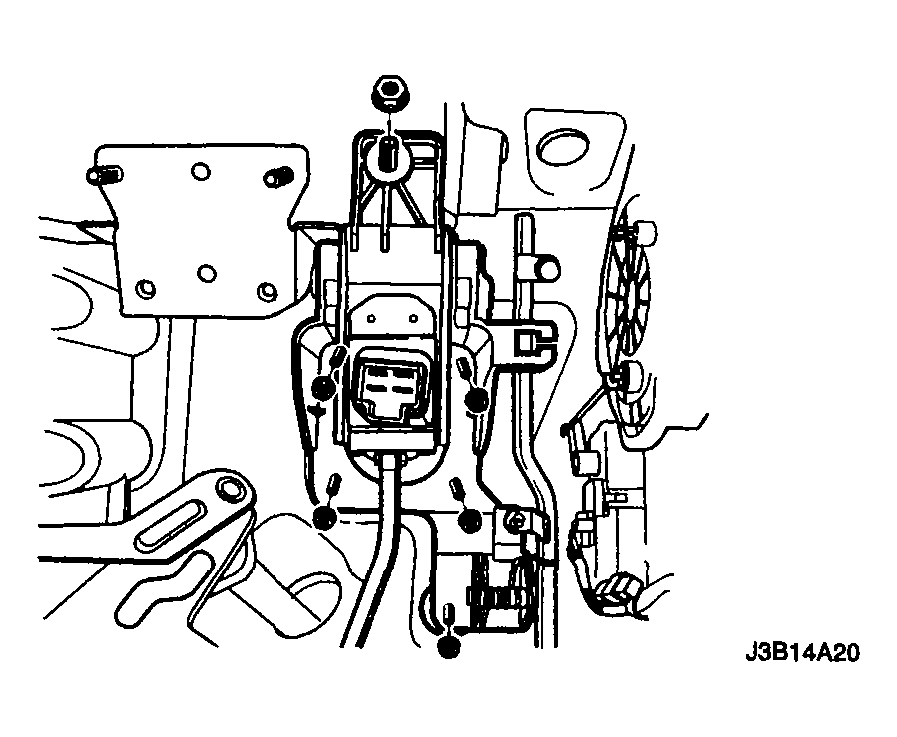

    Fig 2: Removing Nuts From Brace
    G04103267Courtesy of SUZUKI OF AMERICA CORP.
