Brake Pedal Removal and Installation: Installation

Install the brace with nuts.
Tighten

Tighten the brace with nuts to 22 N.m (16 lb-ft).
Install the brake pedal.

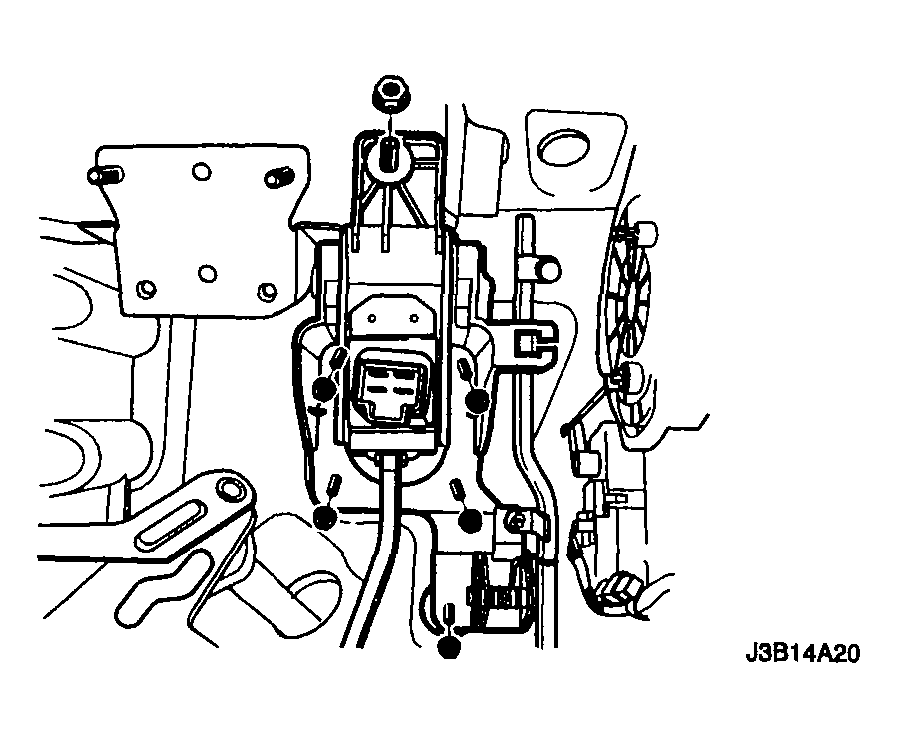

Fig 1: Installing Brace With Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Install the instrument panel. Refer to "INSTRUMENT PANEL REMOVAL AND INSTALLATION :".

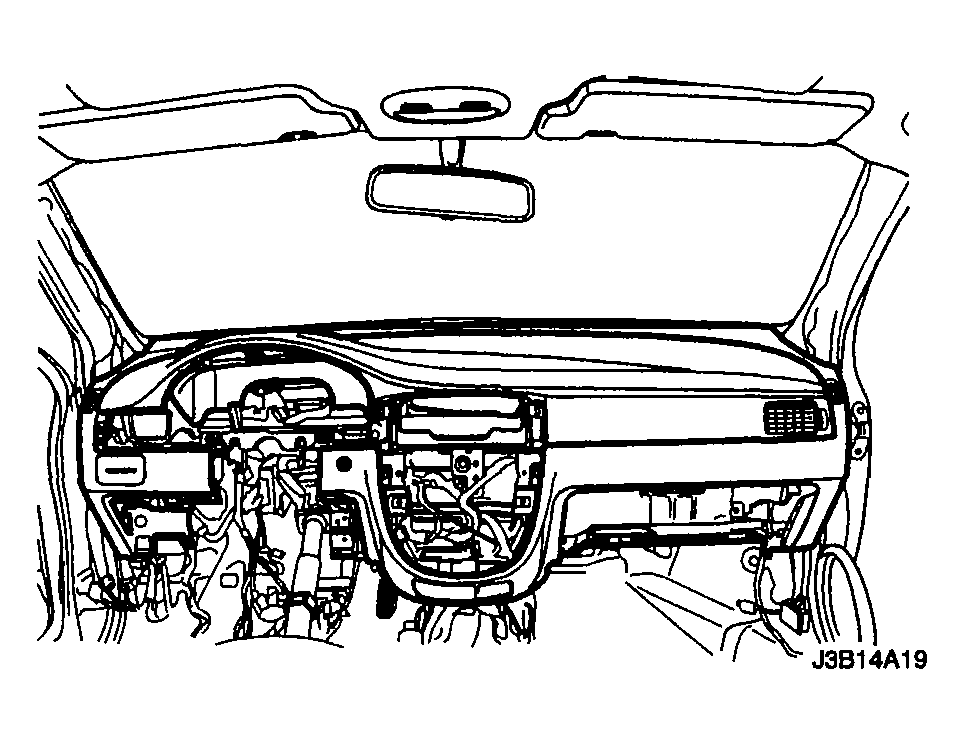

Fig 2: Installing Instrument Panel
Courtesy of SUZUKI OF AMERICA CORP.
