Brake Hose (Rear) Removal and Installation: Removal

Raise and suitably support the vehicle.
Remove the brake hose retainer.

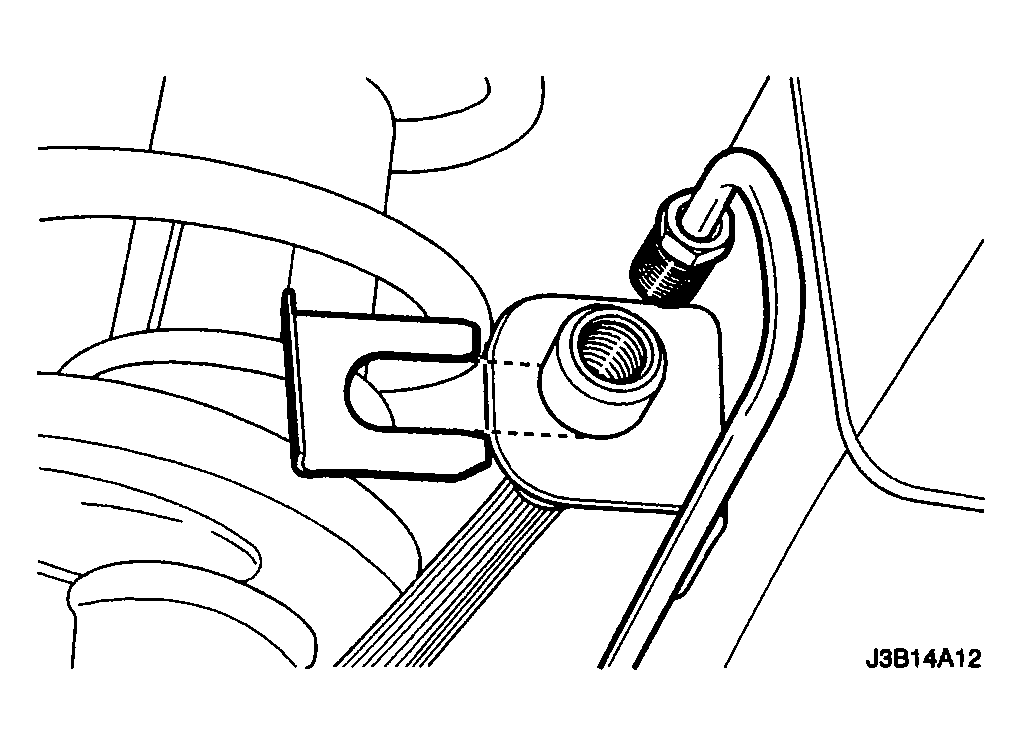

Disconnect the brake pipe line from the disc brake hose.

Fig 1: Disconnecting Brake Pipe Line From Disc Brake Hose
Courtesy of SUZUKI OF AMERICA CORP.

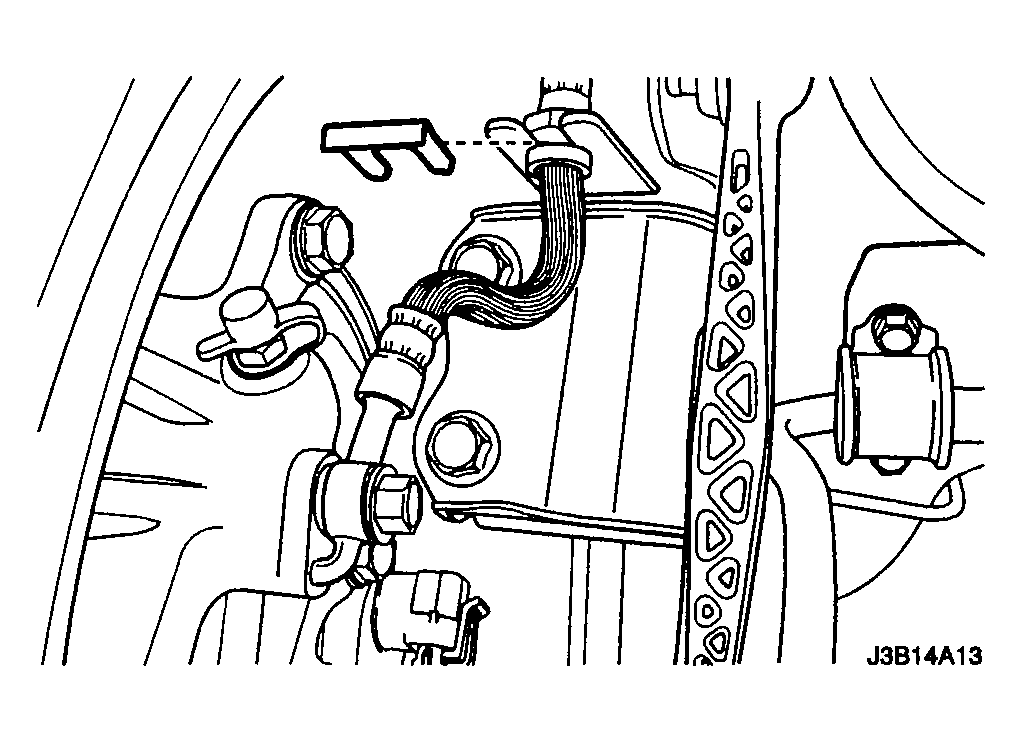

Remove the rear disc brake hose retainer and the brake hose from the bracket on the steering knuckle shaft.

Fig 2: Removing Rear Disc Brake Hose Retainer And Brake Hose From Bracket On Steering Knuckle Shaft
Courtesy of SUZUKI OF AMERICA CORP.

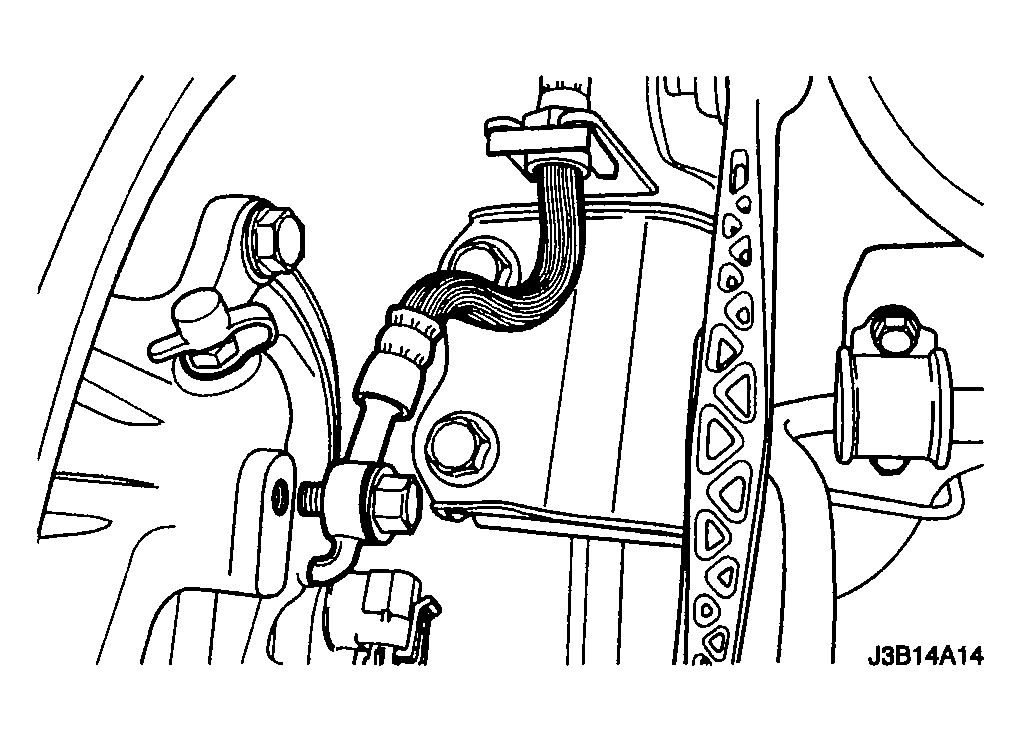

Remove the rear disc brake hose from the caliper.

Fig 3: Removing Rear Disc Brake Hose From Caliper
Courtesy of SUZUKI OF AMERICA CORP.
