Brake Hose (Rear) Removal and Installation: Installation

Connect the brake pipe line to the brake hose.
Tighten

Tighten the brake line to 16 N.m (12 lb-ft).
Install the retainer onto the rear brake hose bracket from the wheel house.

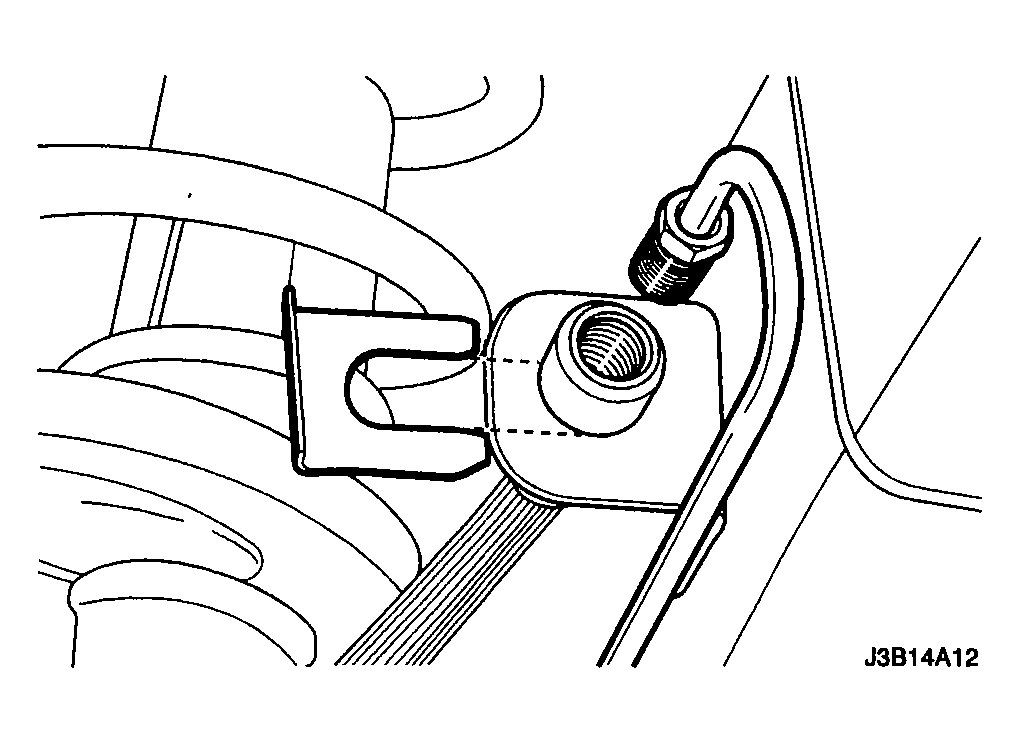

Fig 1: Connecting Brake Pipe Line To Brake Hose
Courtesy of SUZUKI OF AMERICA CORP.
Install the rear disc brake hose to the caliper.
Tighten

Tighten the rear disc brake hose-to-caliper bolt to 32 N.m (24 lb-ft).
Install the rear disc brake hose and retainer on the bracket on the steering knuckle shaft.
Lower the vehicle.
Bleed the brake system. Refer to "MANUAL BLEEDING THE BRAKES :".
Check the brake system for leaks.

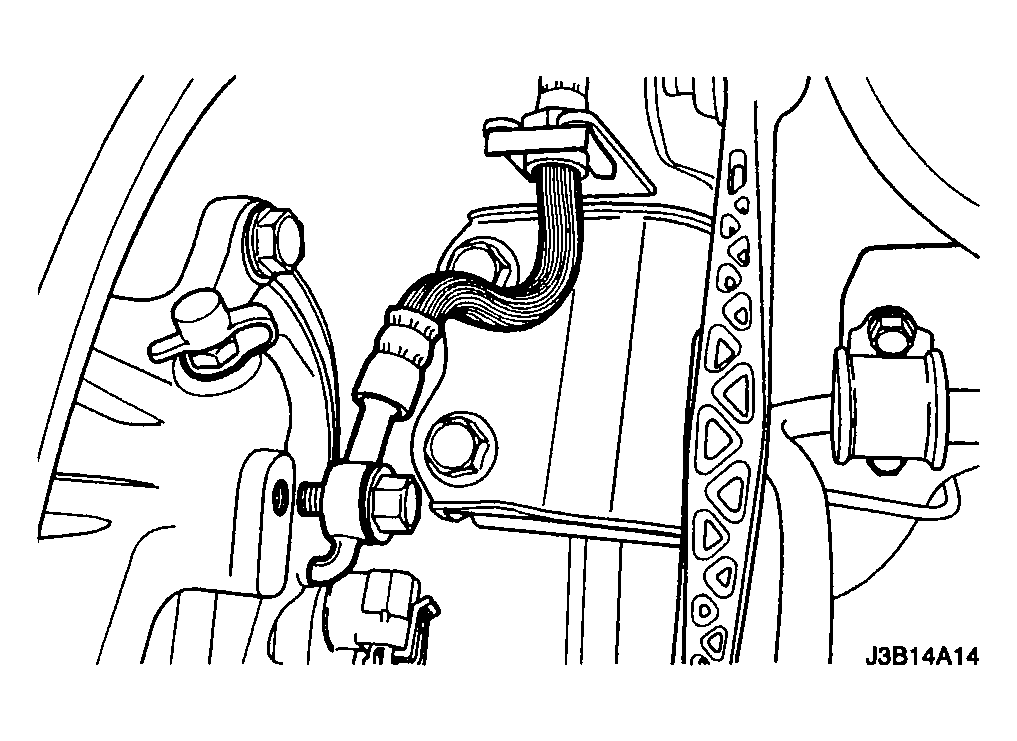

Fig 2: Installing Rear Disc Brake Hose And Retainer On Bracket On Steering Knuckle Shaft
Courtesy of SUZUKI OF AMERICA CORP.
