Brake Hose (Front) Removal and Installation: Removal

  1. Raise and suitably support the vehicle.
  2. Remove the retainer.
  3. Disconnect the brake pipe line from the brake hose support bracket on the wheel housing on each side of the vehicle.
  4. Disconnect the brake hose from the "C" bracket on the steering knuckle shaft.
  5. Remove the bolt from the brake caliper.
  6. Remove the seal rings and the disc brake hose.

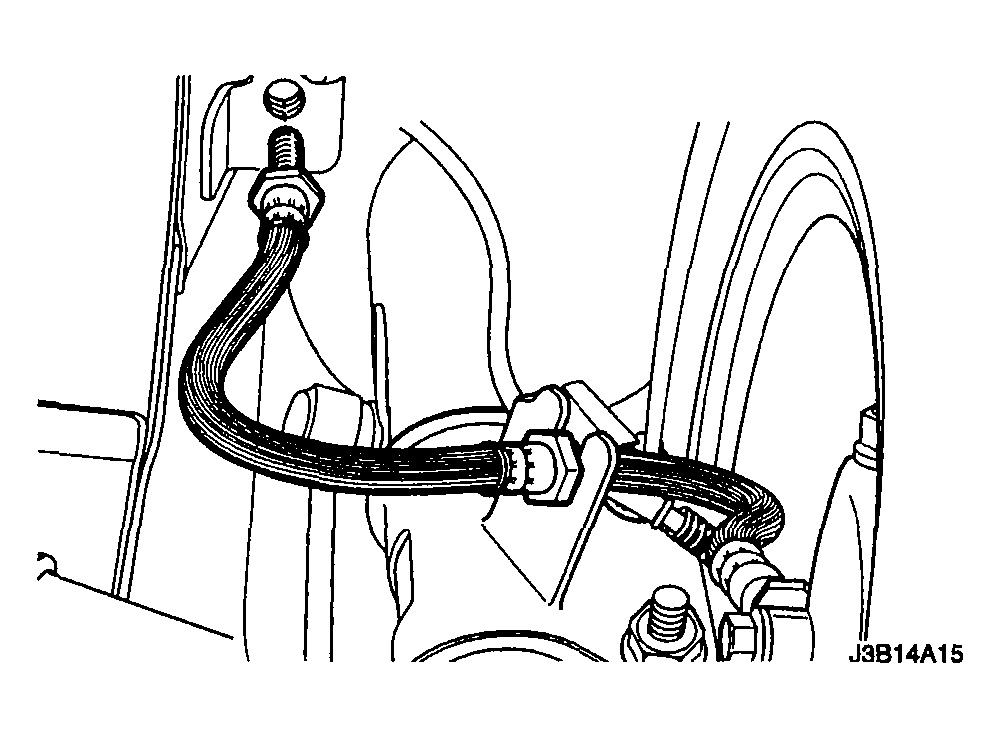

    Fig 1: Disconnecting Brake Hose From "C" Bracket On Steering Knuckle Shaft
    G04103256Courtesy of SUZUKI OF AMERICA CORP.
