Brake Hose (Front) Removal and Installation: Installation

Install the new disc brake hose to the caliper with new seal rings and the bolt.
Tighten

Tighten the front disc brake hose-to-caliper bolt to 40 N.m (30 lb-ft).
Slide the brake hose on the steering knuckle shaft "C" bracket.

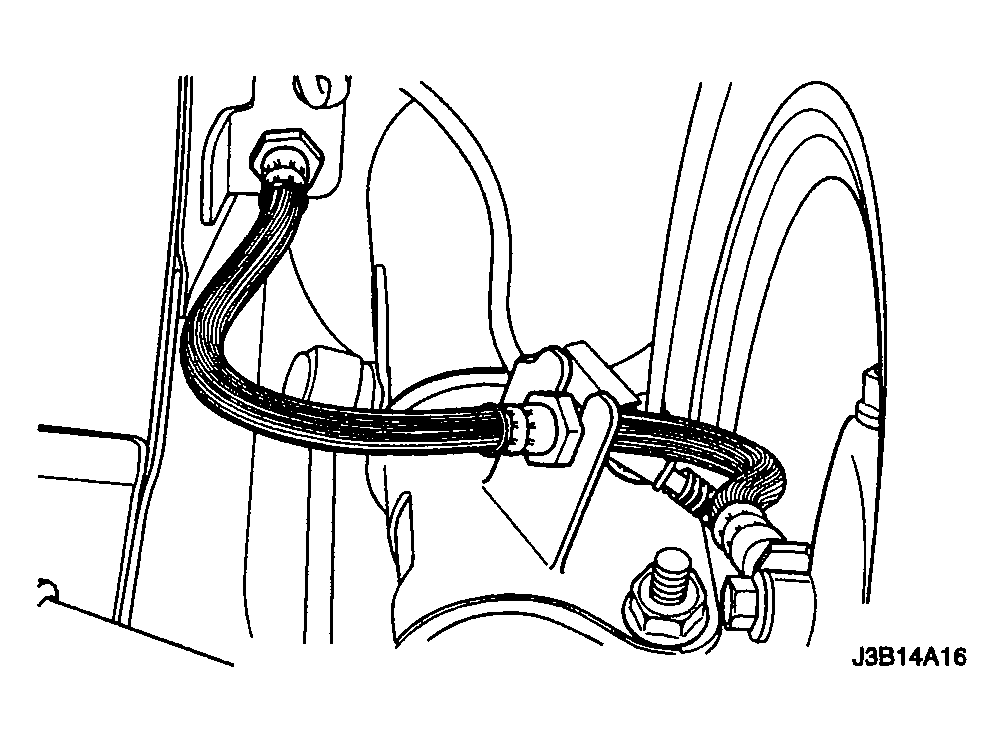

Fig 1: Installing New Disc Brake Hose To Caliper With New Seal Rings And Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Connect the brake pipe line to the brake hose on the wheel housing bracket on each side of the vehicle.
Tighten

Tighten the brake line to 16 N.m (12 lb-ft).
Lower the vehicle.
Bleed the brake system. Refer to "MANUAL BLEEDING THE BRAKES :".
Check the brake system for leaks.

Fig 2: Connecting Brake Pipe Line To Brake Hose On Wheel Housing Bracket
Courtesy of SUZUKI OF AMERICA CORP.
