Brake Fluid Reservoir Removal and Installation: Removal

CAUTION: Remove the reservoir only when replacing a damaged or a leaking reservoir.

Disconnect the electrical connector from the reservoir.

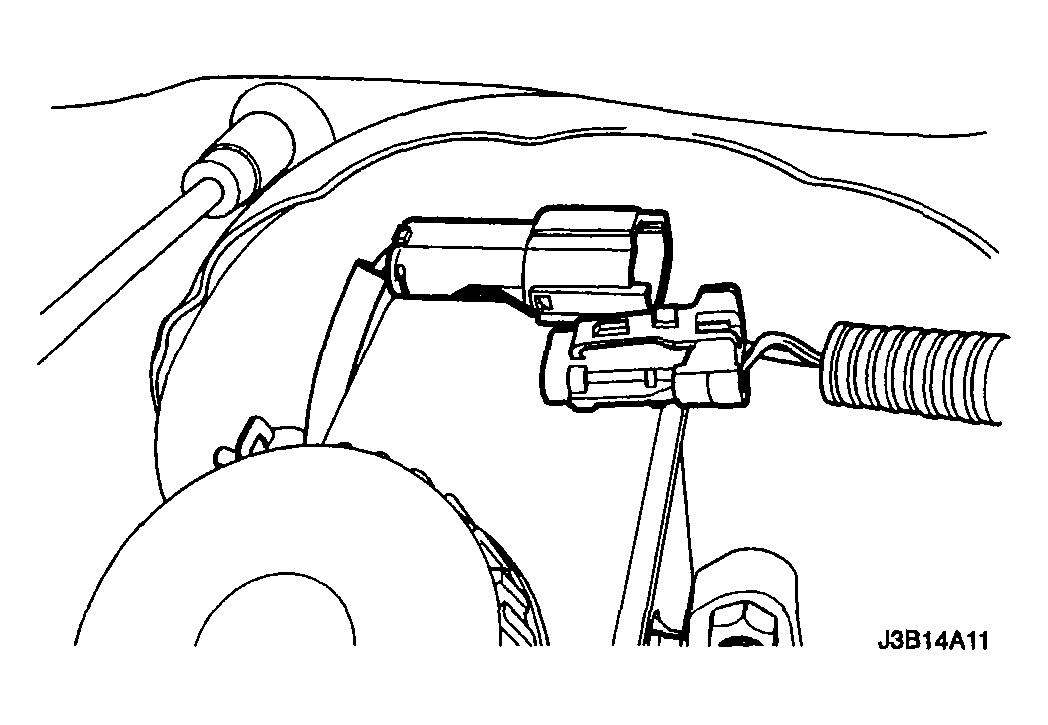

Fig 1: Disconnecting Electrical Connector From Reservoir
Courtesy of SUZUKI OF AMERICA CORP.
For vehicles with the manual transaxle, disconnect the clip to the clutch hose connection to the master cylinder, and move the clip out of the way.
Remove the clutch hose from the master cylinder.
Gently pry upwards with a screwdriver to release the reservoir.
Tilt the reservoir and pull it upward in order to remove it.

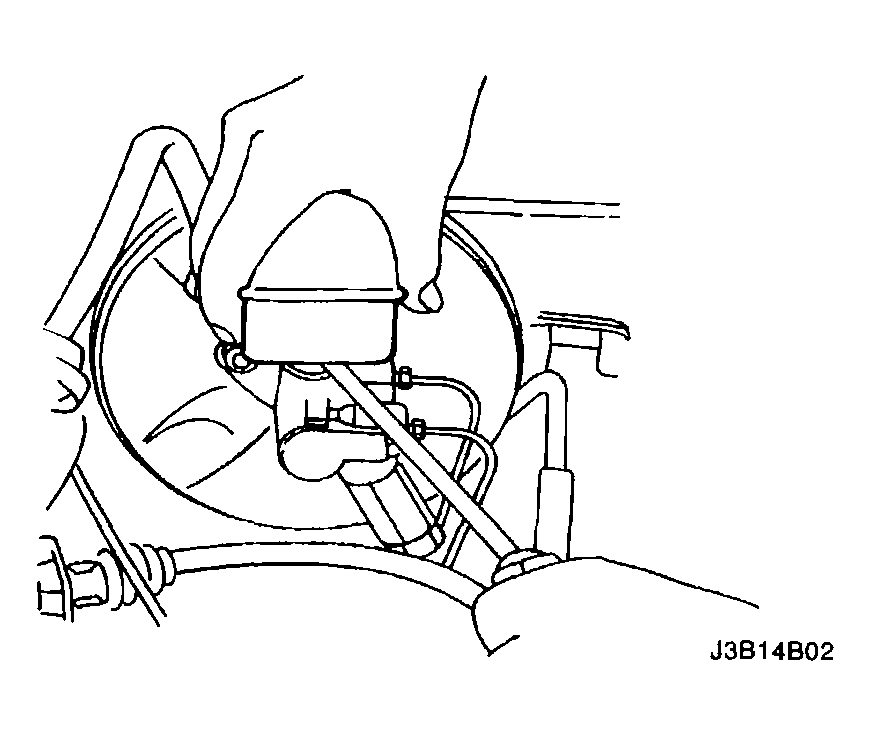

Fig 2: Removing Reservoir
Courtesy of SUZUKI OF AMERICA CORP.
Remove the reservoir seals from the master cylinder body.

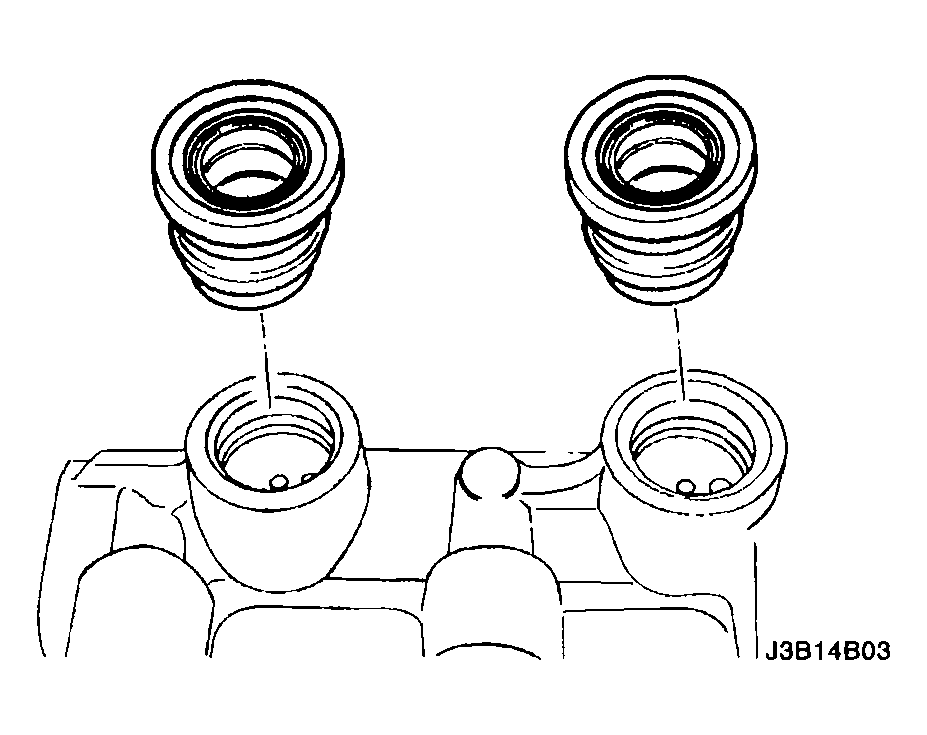

Fig 3: Removing Reservoir Seals From Master Cylinder Body
Courtesy of SUZUKI OF AMERICA CORP.
