Brake Fluid Reservoir Removal and Installation: Installation

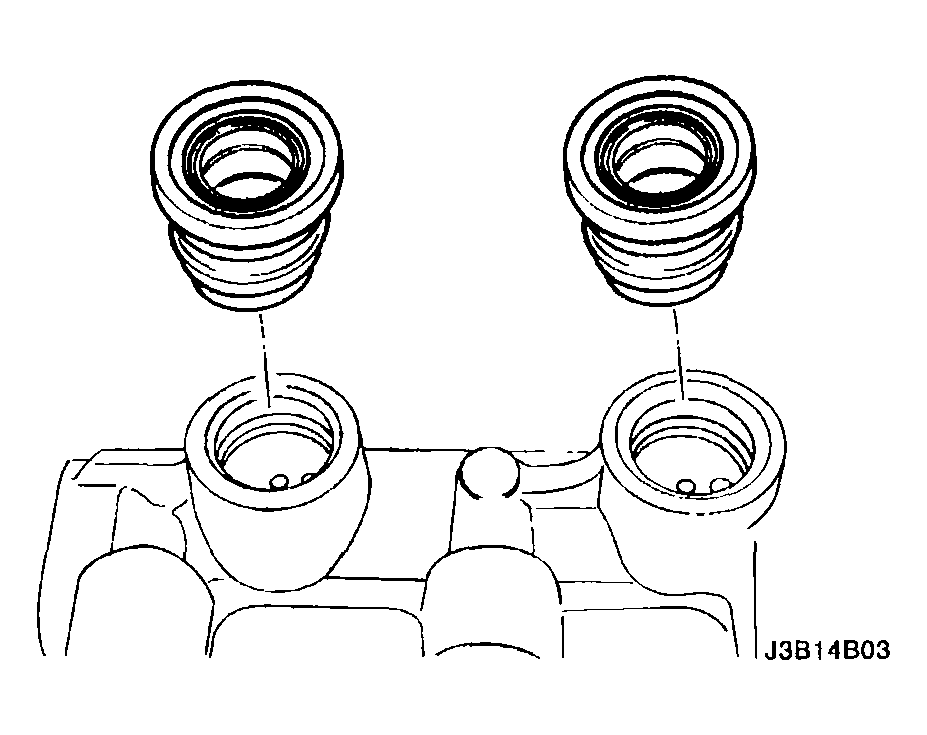

Lubricate the new seals with clean brake fluid. Install the seals into the cylinder body.
Install the reservoir on the master cylinder body.

Fig 1: Installing Reservoir Seals Into Master Cylinder Body
Courtesy of SUZUKI OF AMERICA CORP.

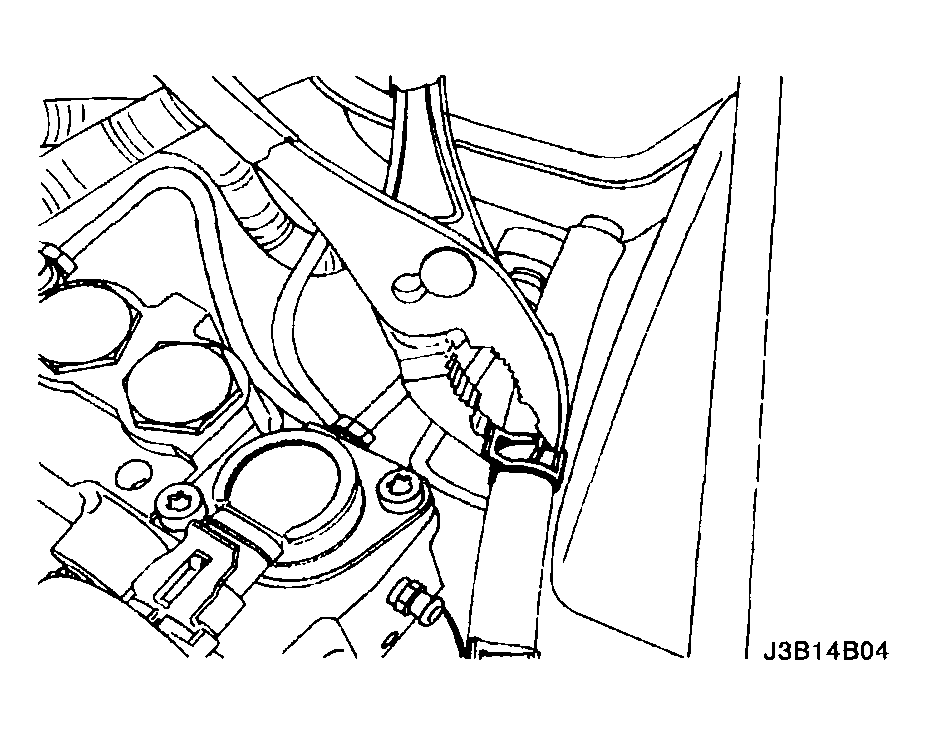

For vehicles with the manual transaxle, connect the clip to the clutch hose connection to the master cylinder.

Fig 2: Connecting Clip To Clutch Hose Connection To Master Cylinder
Courtesy of SUZUKI OF AMERICA CORP.
Add brake fluid.
Raise and suitably support the vehicle.
Bleed the braking system. Refer to "MANUAL BLEEDING THE BRAKES :" or "BLEEDING SYSTEM :". Bleed the clutch master cylinder. Refer to "AIR BLEEDING :".
Lower the vehicle.

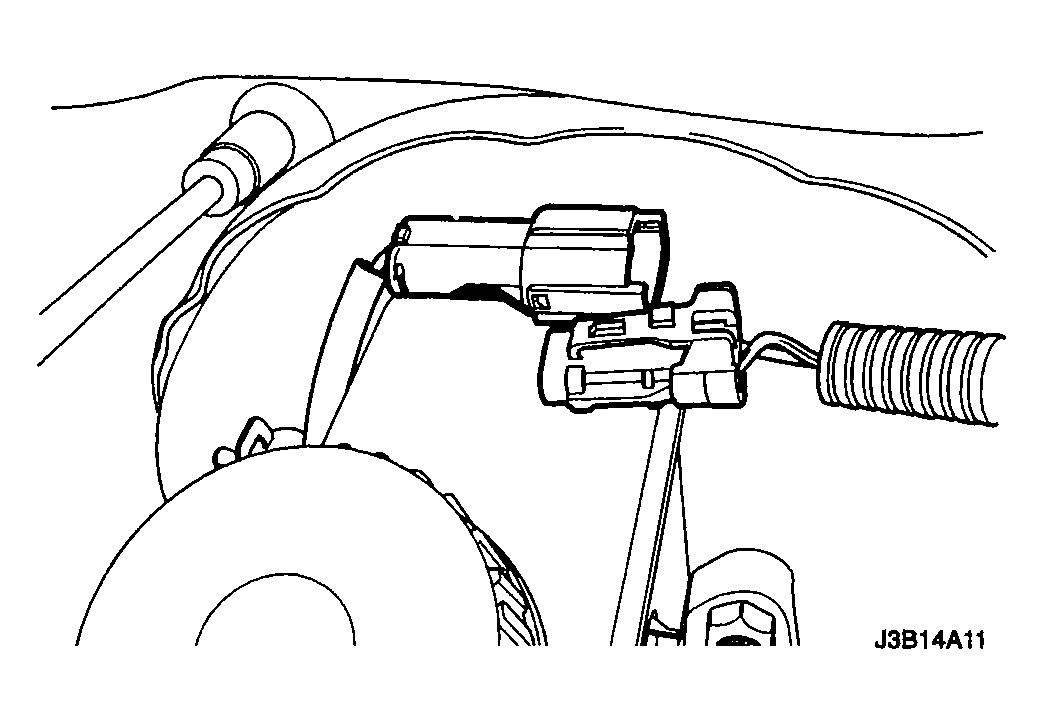

Connect the reservoir electrical connector.

Fig 3: Connecting Reservoir Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
