Instrument Cluster Circuit Wiring Diagram

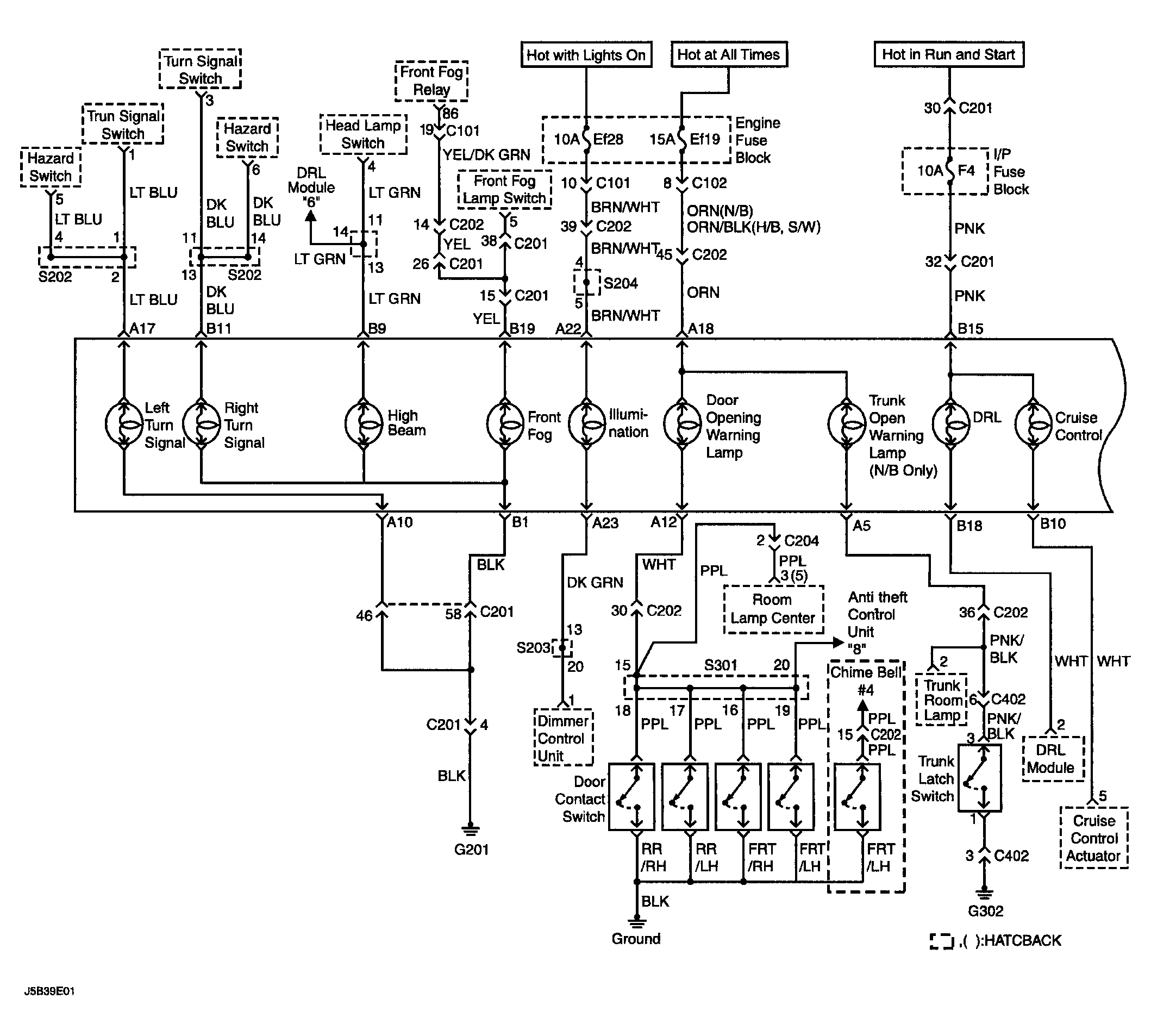

Fig 1: Instrument Cluster Circuit - Wiring Diagram (1 Of 2)
G04104385Courtesy of SUZUKI OF AMERICA CORP.

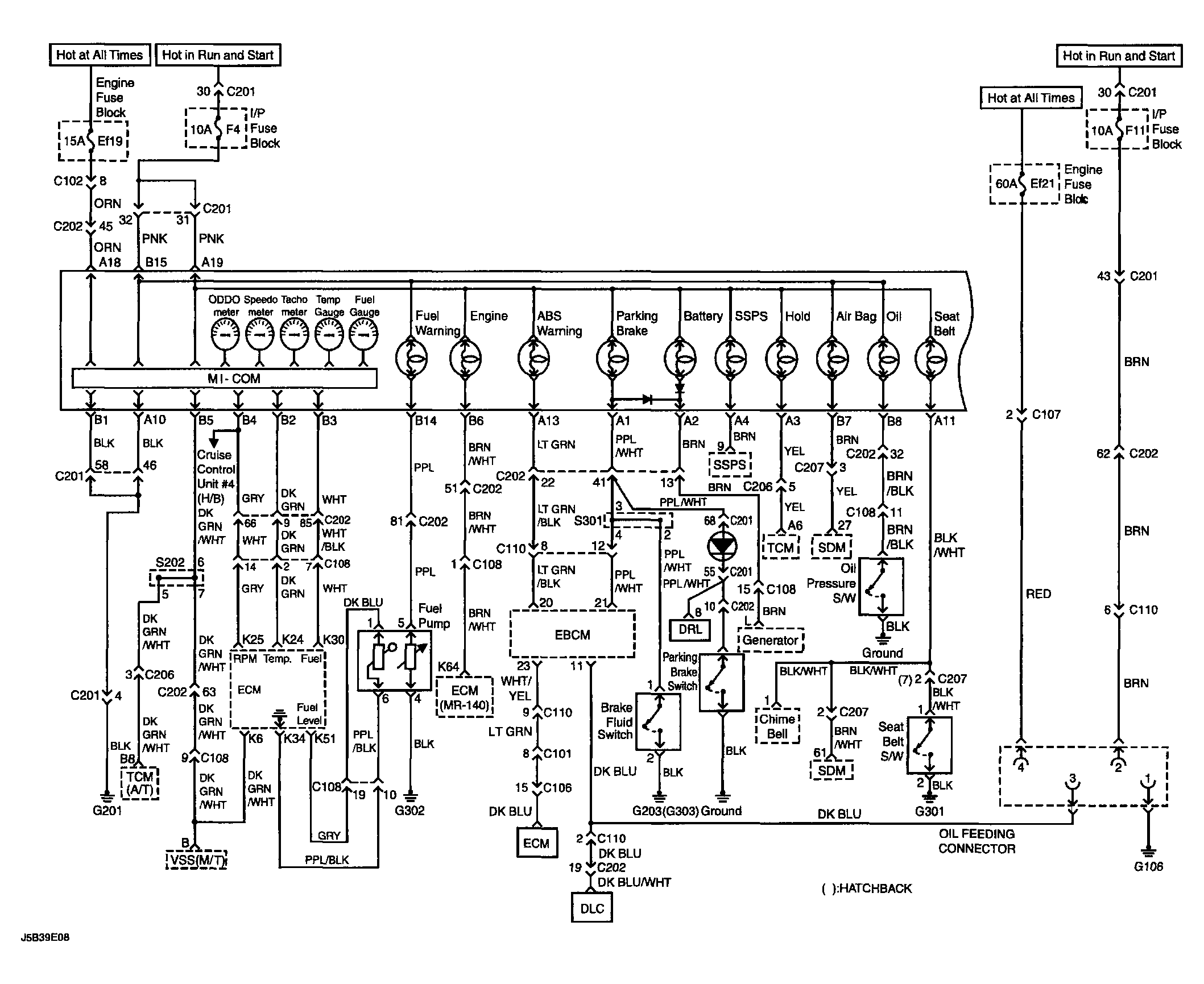

Fig 2: Instrument Cluster Circuit - Wiring Diagram (2 Of 2)
G04104386Courtesy of SUZUKI OF AMERICA CORP.
