Cigar Lighter and Extra Power Jack Circuit Wiring Diagram

M/T: For Notchback and Hatchback Model

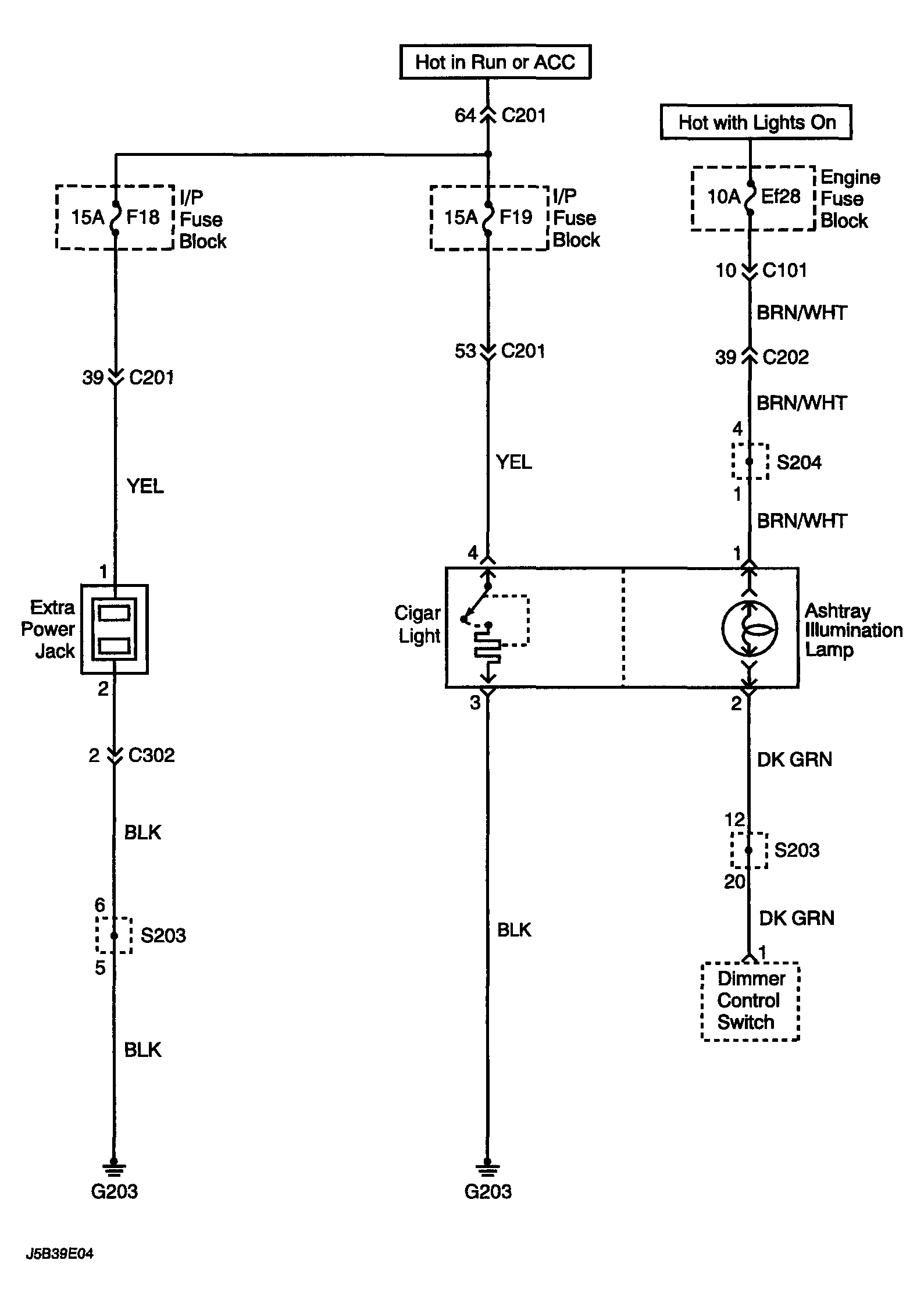

Fig 1: Cigar Lighter And Extra Power Jack Circuit - Wiring Diagram (M/T: For Notchback And Hatchback Model)

Courtesy of SUZUKI OF AMERICA CORP.

M/T: For Station Wagon Model

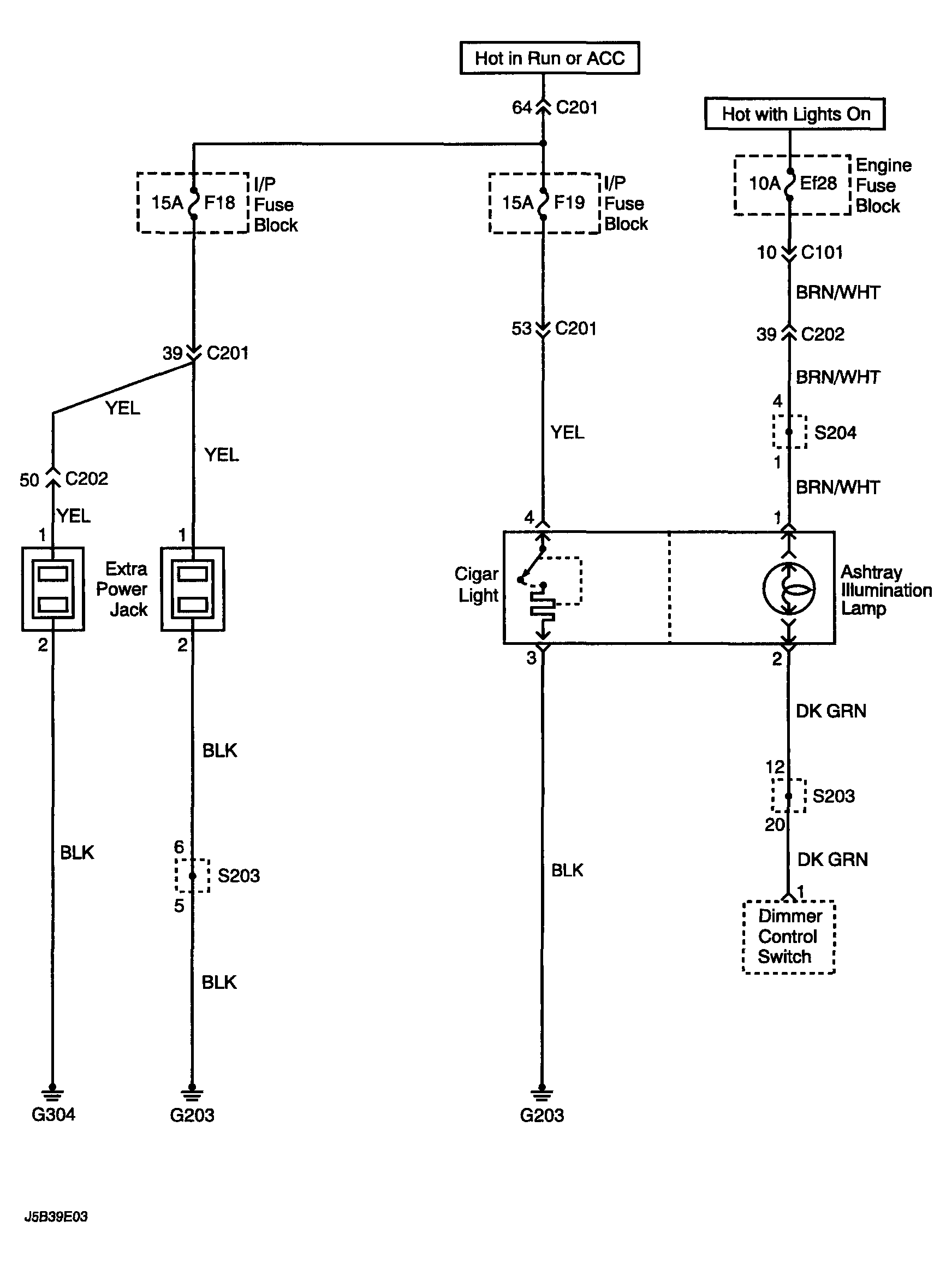

Fig 2: Cigar Lighter And Extra Power Jack Circuit - Wiring Diagram (M/T: For Station Wagon Model)

Courtesy of SUZUKI OF AMERICA CORP.

A/T: For Notchback and Hatchback Model

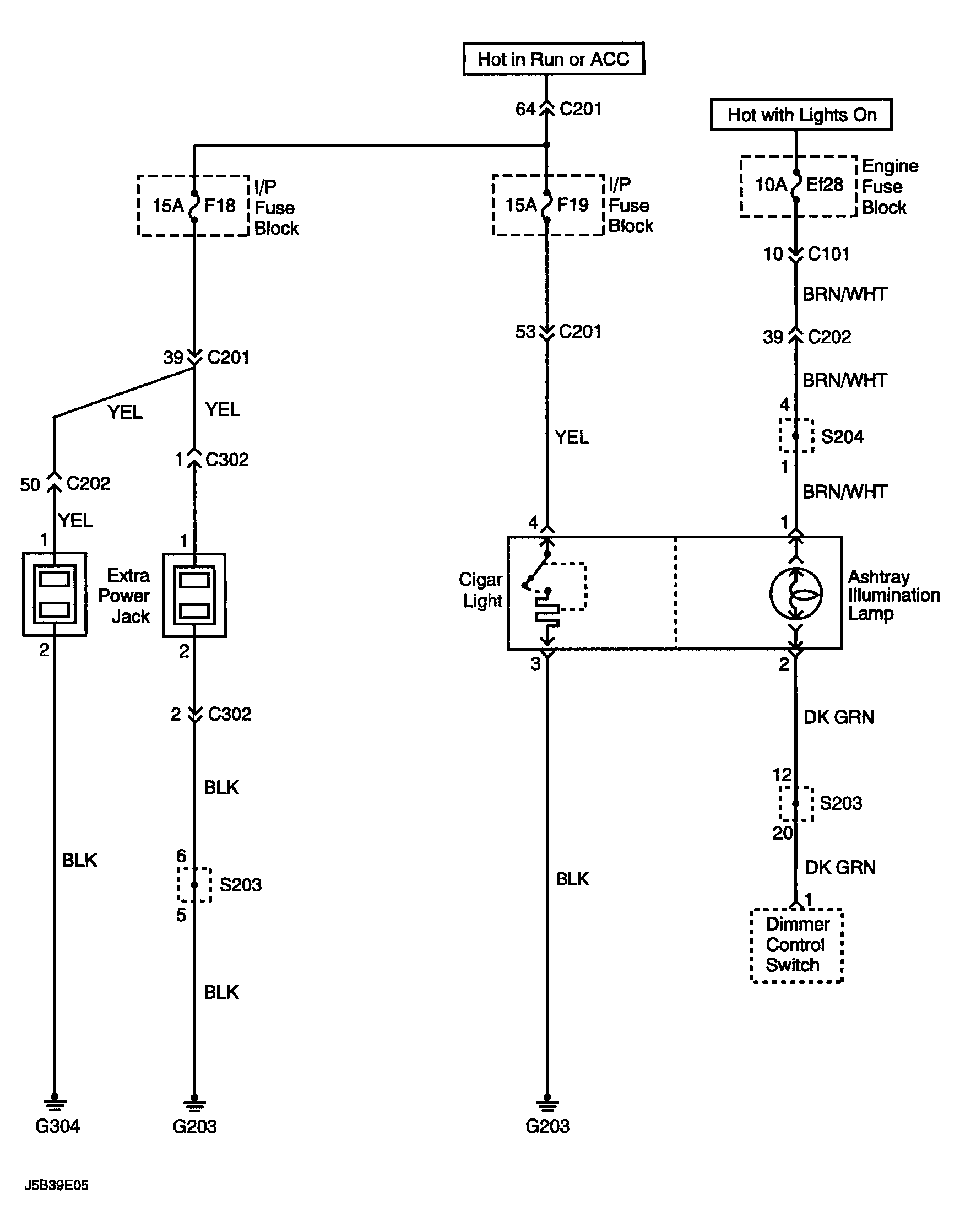

Fig 3: Cigar Lighter And Extra Power Jack Circuit - Wiring Diagram (A/T: For Notchback And Hatchback Model)

Courtesy of SUZUKI OF AMERICA CORP.

A/T: For Station Wagon Model

Fig 4: Cigar Lighter And Extra Power Jack Circuit - Wiring Diagram (A/T: For Station Wagon Model)

Courtesy of SUZUKI OF AMERICA CORP.
