Instrument Cluster Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster trim panel. Refer to "INSTRUMENT CLUSTER TRIM PANEL REMOVAL AND INSTALLATION :".
  3. Remove the screws and the instrument cluster.
  4. Disconnect the electrical connectors.

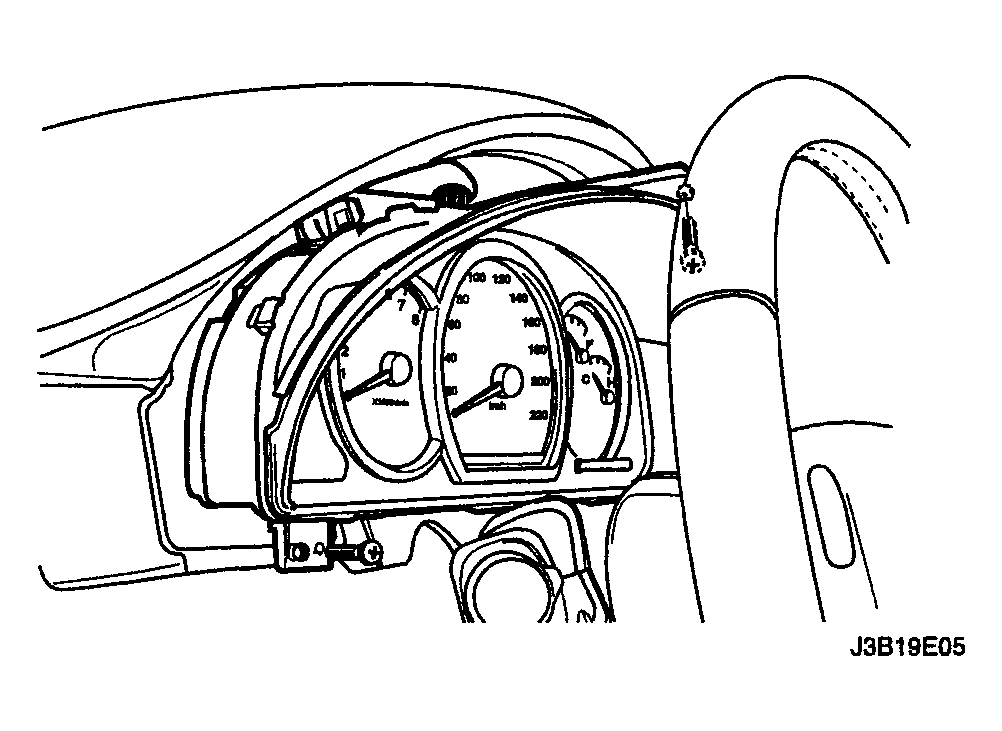

    Fig 1: Removing Instrument Cluster
    G04104413Courtesy of SUZUKI OF AMERICA CORP.
