Instrument Cluster Removal and Installation: Installation

  1. Connect the electrical connectors.
  2. Install the instrument cluster with the screws.

    Tighten

    Tighten the instrument cluster screw to 4 N.m (35 lb-in).

  3. Install the instrument cluster trim panel.
  4. Connect the negative battery cable.

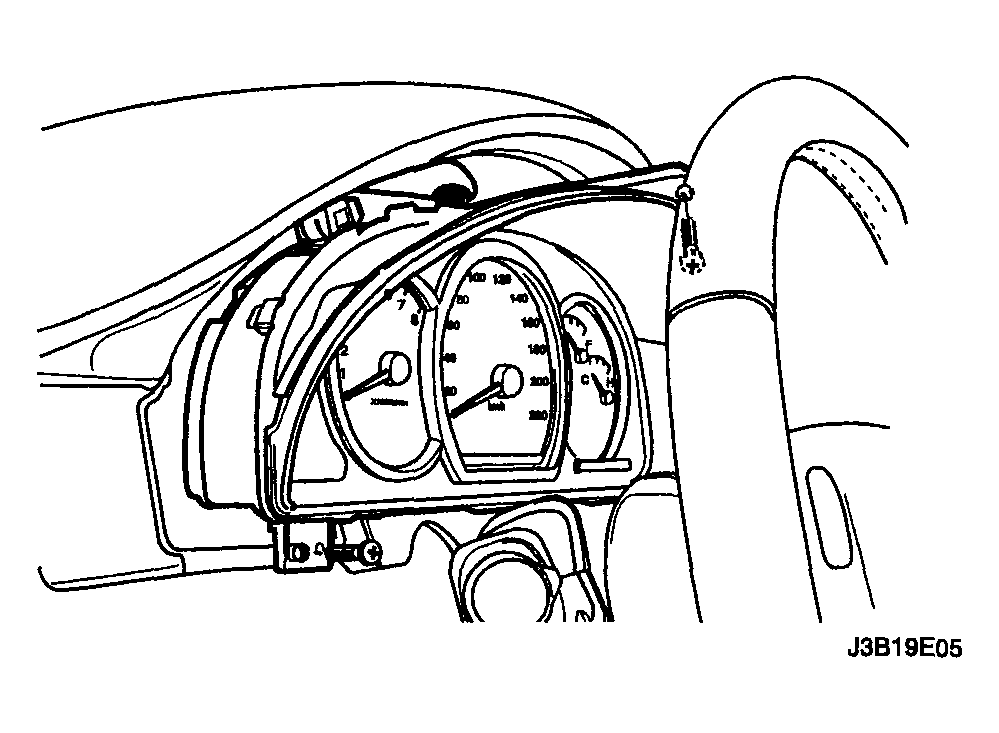

    Fig 1: Installing Instrument Cluster
    G04104414Courtesy of SUZUKI OF AMERICA CORP.
