Instrument Cluster Dimmer Switch Removal and Installation: Installation

  1. Connect the electrical connectors.
  2. Install the instrument cluster dimmer switch assembly.

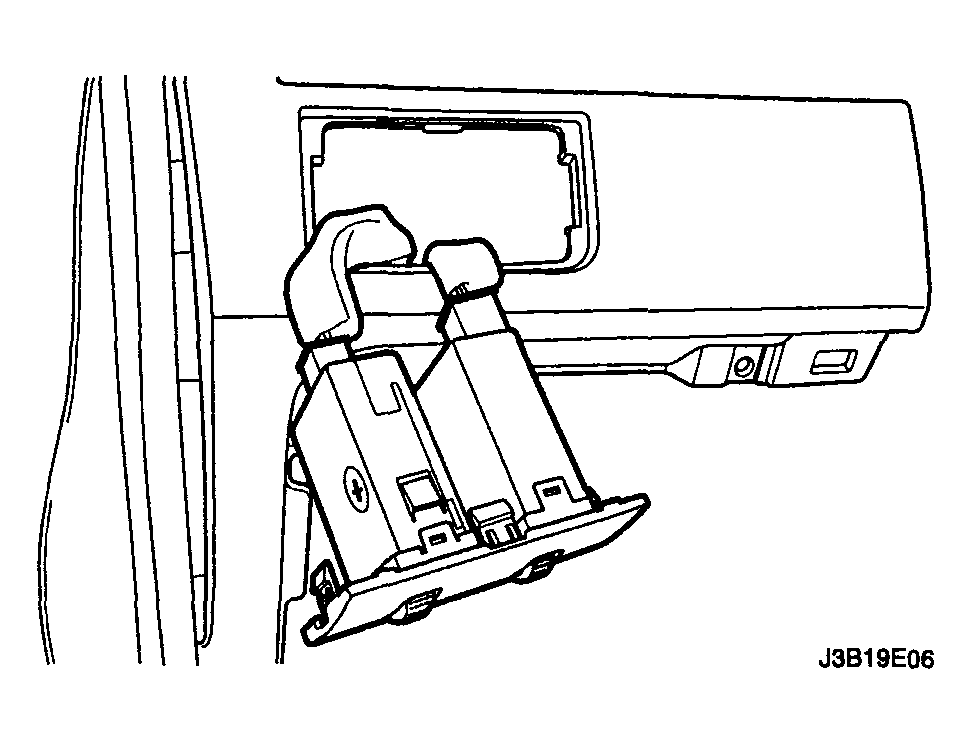

    Fig 1: Installing Instrument Cluster Dimmer Switch Assembly
    G04104416Courtesy of SUZUKI OF AMERICA CORP.
