Garnish Molding Removal and Installation: Installation

  1. Install the garnish molding with the screws.

    Tighten

    Tighten the garnish molding screw to 2 N.m (18 lb-in).

  2. Install the glove box.

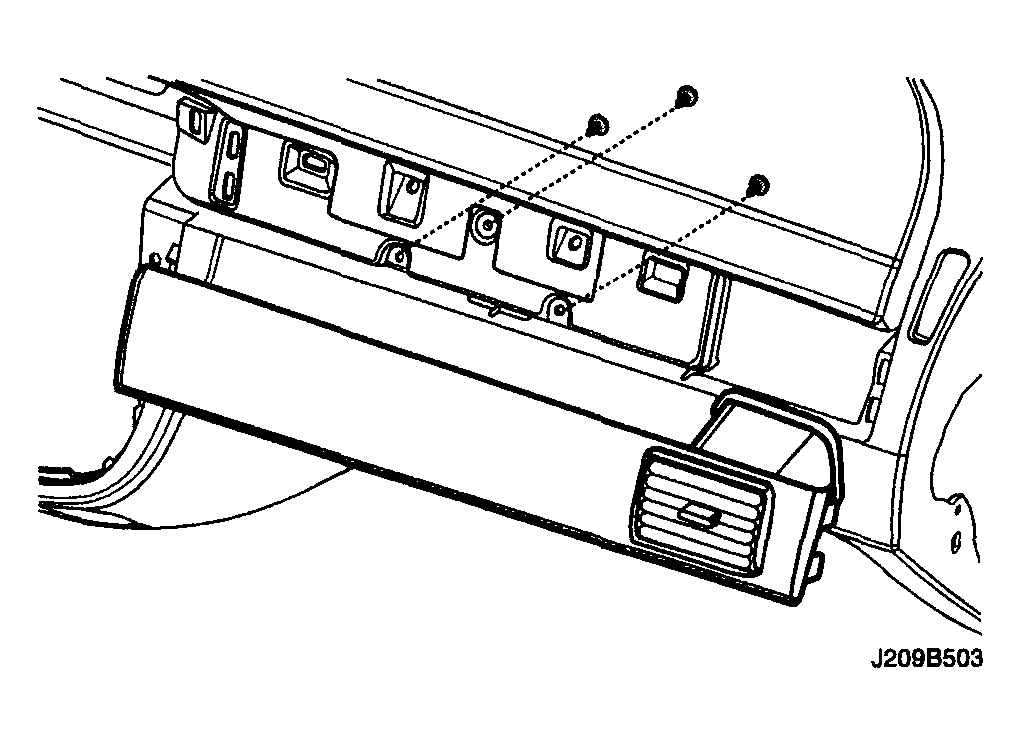

    Fig 1: Installing Garnish Molding
    G04104398Courtesy of SUZUKI OF AMERICA CORP.
