Diagnostic Trouble Codes Clearance for OCM

NOTE: SUZUKI scan tool whenever checking DTC in OCM memory because OCM has no monitor coupler for occupant classification system.
  1. Turn ignition switch to OFF position.
  2. Connect SUZUKI scan tool to data link connector (DLC) (1) in the same manner as when making this connection for DTC check.

    Special tool

    (A): SUZUKI scan tool

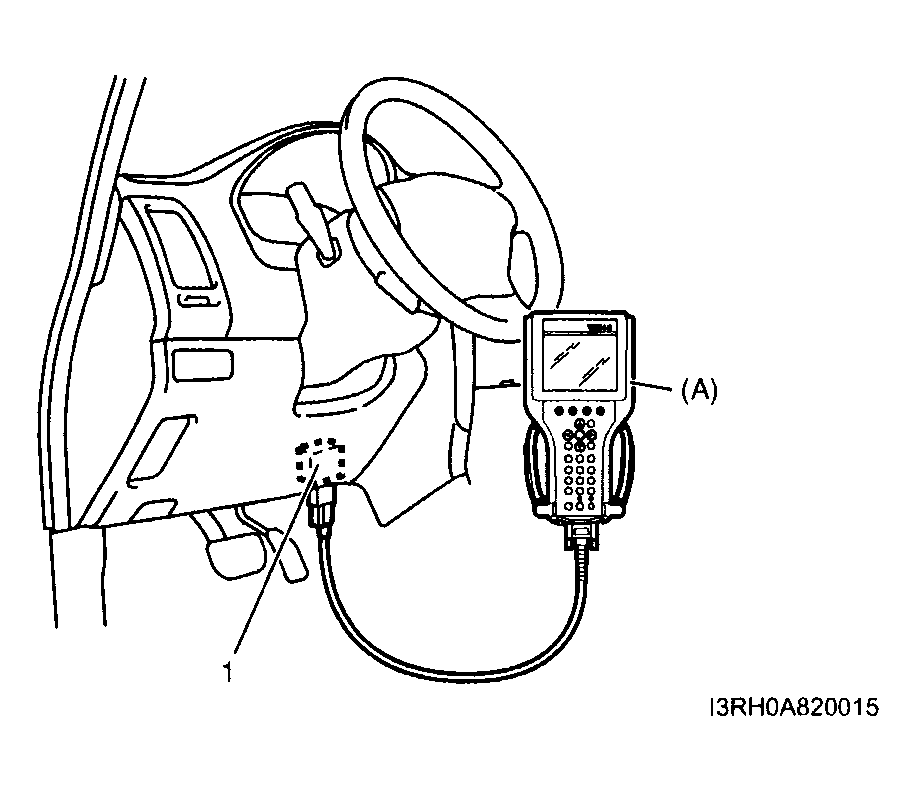

    Fig 1: Connecting Suzuki Scan Tool To Data Link Connector
    G04015803Courtesy of SUZUKI OF AMERICA CORP.
  3. Turn ignition switch to ON position.
  4. Erase DTC according to instructions displayed on SUZUKI scan tool. Refer to SUZUKI scan tool operator's manual for further details.
  5. After completing the check, turn ignition switch to OFF position and disconnect SUZUKI scan tool from DLC.
  6. Perform "DTC CHECK FOR OCM :" and confirm that normal DTC (NO CODES) is displayed and not malfunction DTC.
