Gear Shift and Select Shaft Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
- Clean mating surface of guide case.

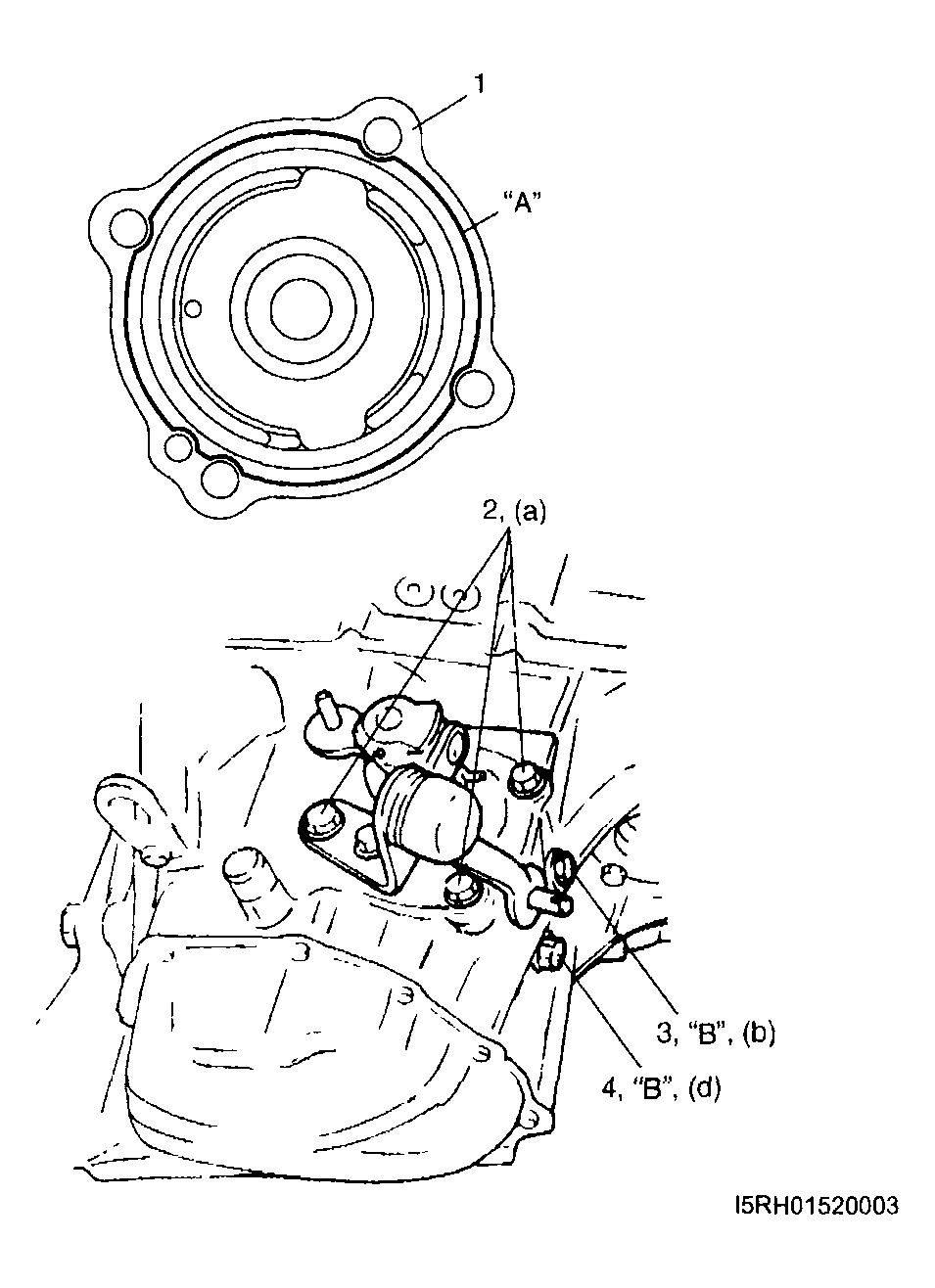

- Apply sealant to gear shift & select shaft assembly (1) as shown in figure by such amount that its section is 1.5 mm (0.059 in.) in diameter.
"A": Sealant 99000--31260
- Install gear shift and select shaft assembly with new gasket into transaxle.
- Place breather hose bracket and tighten it together with gear shift guide case bolts (2) to specified torque.
Tightening torque
Gear shift guide case bolt (a): 23 N.m (2.3 kg-m, 17.0 lb-ft)
- Install washer and gear shift interlock bolt (3) to which thread lock cement has been applied and then tighten it to specified torque.
"B": Thread lock cement 99000--32110
Tightening torque
Gear shift interlock bolt (b): 23 N.m (2.3 kg-m, 17.0 lb-ft)
- Install washer and 5th to reverse interlock guide bolt (4) to which thread lock cement has been applied and then tighten it to specified torque.
"B": Thread lock cement 99000--32110
Tightening torque
5th to reverse interlock guide bolt (d): 23 N.m (2.3 kg-m, 17.0 lb-ft)
- Check input shaft for rotation in each gear position.
